4 Zone Mini Split

The cost to install a 4-zone mini split typically ranges from $6,000 to $18,000.

Cost Breakdown:

• System Cost: A 4-zone mini split heat pump system costs $5,000 to $12,000, depending on brand, BTU capacity, and features — especially during an air conditioner sale.
• Labor Cost: Installation costs range from $1,500 to $5,000, depending on the complexity of the work.
• Additional Costs: Electrical upgrades, permits, and mounting accessories can add $500 to $1,000.

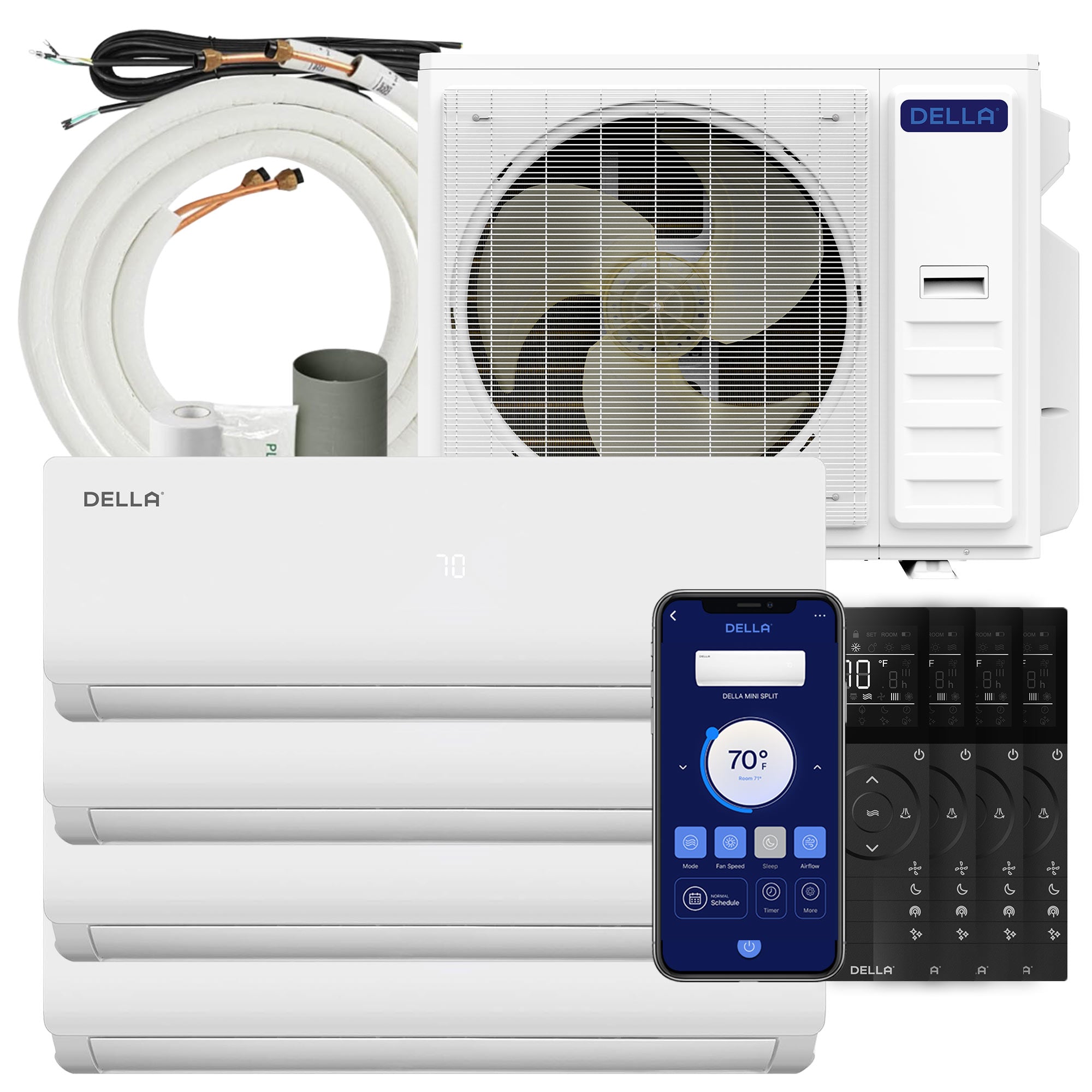

A 4-zone mini split uses one shared outdoor compressor, so its electrical draw is not four single-zone amperage ratings added together. For example, the DELLA Vario 35,000 BTU configuration (9K+9K+9K+9K) uses outdoor model 048-TLP-MODU-1D4, rated at 13.1 A for cooling and 12.0 A for heating on 208–230 V power. The manual separately lists 22 A minimum circuit ampacity (MCA) and a 35 A breaker size for that model.

A mini split AC 4-zone system connects one outdoor condenser to four indoor air handlers through refrigerant lines, electrical wiring, and drain lines. Each indoor unit has its own thermostat, allowing independent temperature control for each zone. The outdoor unit adjusts compressor speed using inverter technology to match the combined heating or cooling demand of all four zones, ensuring efficient and precise performance.

Mini Split Systems can support anywhere from 2 to 8 zones, depending on the capacity of the outdoor unit. Larger systems with higher BTU ratings are designed to handle more indoor heads, while smaller units are typically limited to 2 or 3-zones. The number of supported zones is determined by the system's design and refrigerant line connections available on the outdoor unit.

You can only add heads to a multi room mini split if the outdoor unit is designed to support additional zones and has unused refrigerant ports. The unit must also have sufficient BTU capacity to handle the extra heads. If the current system doesn't allow for expansion, upgrading to a larger multi-zone outdoor unit may be necessary.

Maintaining a 4-zone mini split includes:

• Cleaning Filters: Clean each indoor unit's air filter every 2 to 3 months to ensure proper airflow and efficiency.
• Inspecting the Outdoor Unit: Check the outdoor unit regularly to remove debris and ensure proper airflow.
• Clearing Drain Lines: Inspect and clear condensate drain lines to prevent blockages and water leaks.
• Refrigerant Check: Have an HVAC technician inspect refrigerant levels every 3 to 4 years.
• Seasonal Maintenance: Before peak usage, test all indoor units and ensure the system is functioning properly.

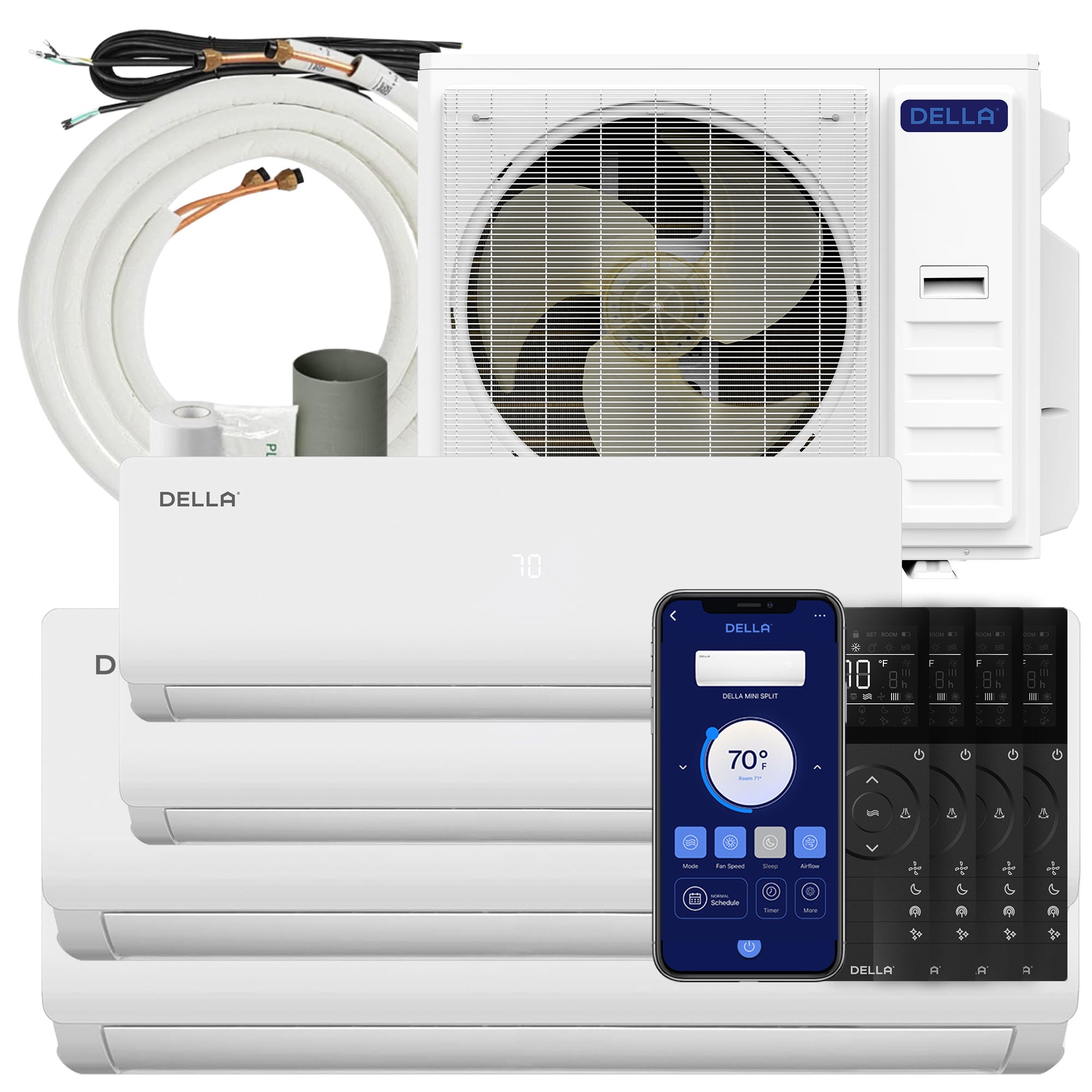

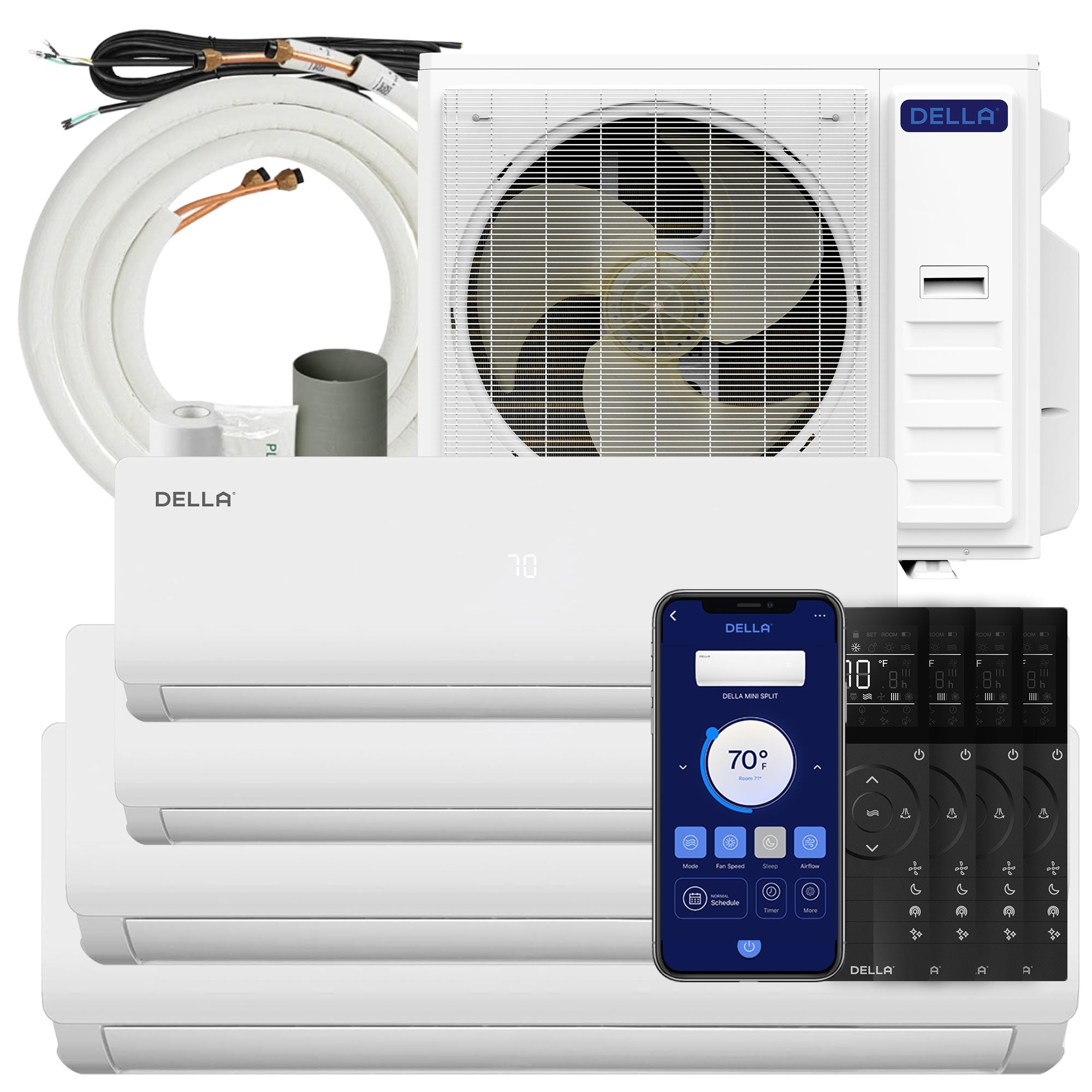

Yes. This collection includes combinations with different indoor-unit capacities, such as 9K + 9K + 9K + 12K and 9K + 9K + 9K + 18K. Match each indoor unit to its room, then verify the outdoor system can meet the combined demand.

Choose four zones when four areas need separate temperature control and you want to connect them to one outdoor unit. For fewer independently controlled areas, use the zone-count links to compare a smaller system.

Installing a 4-zone mini split typically takes 2 to 3 days, longer than a dual-zone mini split due to added complexity. Factors include the routing of refrigerant lines, electrical work, wall or ceiling modifications, and access to the outdoor and indoor unit locations. Larger systems with multiple zones require more time for proper setup and testing to ensure each zone functions correctly.

Electricity use depends on the outdoor unit and the combined demand from the four zones, rather than adding four single-zone power ratings. For example, the DELLA Vario 35,000 BTU (9K+9K+9K+9K) configuration uses outdoor model 048-TLP-MODU-1D4, with rated cooling input of 2,930 W and heating input of 2,680 W. Actual energy use in kWh varies with operating time and load.
