Once you pick a mini split system, a second decision appears: which indoor unit style works for your room? Wall-mounted, ceiling cassette, floor-mounted, floor-ceiling, and concealed duct units all connect to the same outdoor condenser, but each delivers air differently and installs under different conditions.
Choosing based on looks alone can leave you with a unit that strains to cover the space or a style that the room's structure can't support. This guide breaks down each type so you can match the right one to your layout.
What Are Mini Split Indoor Units?
What you choose for the indoor unit shapes more than just the look. It affects which rooms the system can effectively serve, how involved the install will be, and whether any visible hardware ends up on the wall or ceiling.

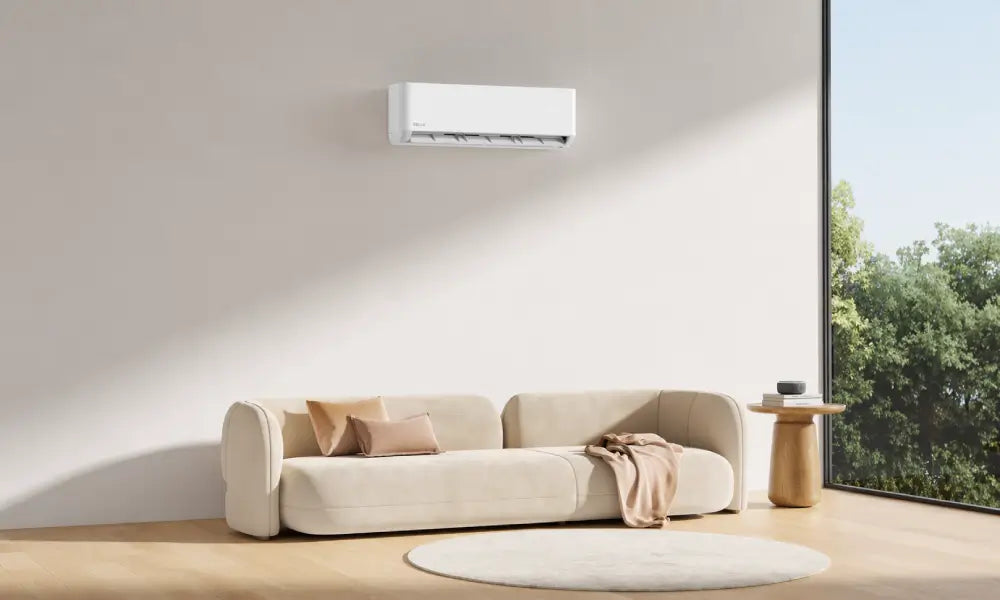

Wall-Mounted Mini Split Units
Wall-mounted mini split units are the most common indoor mini split style. They sit high on the wall, usually just a few inches below the ceiling.
Installation is straightforward. In most cases, the installer only needs to drill a small 3-inch hole through the wall for the lines. You don't have to open up ceilings or cut into existing wall structures.
Because the work is simple, wall-mounted units are usually the most budget-friendly option to buy and install.
When to Use a Wall-Mounted Unit
- Your budget is tight. Wall-mounted units generally cost less to purchase and install than other styles.
- You want air to mix evenly. The high placement lets conditioned air spread across the room before it settles.
- Your room has standard vertical walls. Bedrooms, living rooms, and dens with clear wall space are a natural fit for this setup.
- You need a simple installation. Adding climate control to an existing room takes minimal construction and goes in quickly.
- You don't mind seeing the unit. Modern designs are slim and clean, so they usually blend in without dominating the room.
Ceiling Cassette Mini Split Units
Ceiling cassette mini splits flush-mount into the ceiling, showing only a flat grille from inside the room.
These units blow air in multiple directions, often four-way or up to 360 degrees. That helps cover a wider area than a single wall unit and gives more balanced comfort in open spaces.
When to Use a Ceiling Cassette
- You have a large, open room. Multi-directional airflow can reach corners that one wall unit might miss.
- You want to keep your walls clear. Rooms with artwork, tall bookcases, or floor-to-ceiling windows benefit from moving the unit overhead.
- You prefer a built-in look. The flush, low-profile grille creates a minimal appearance that almost disappears into the ceiling.
- You have attic or plenum space above. Most cassettes need vertical clearance for the unit body and a place to run the drain line.
Floor-Mounted Mini Split Units
Floor-mounted mini split units sit at floor level against the wall, like a traditional radiator. Because the unit discharges warm air from floor level, it creates a more natural heating pattern in winter and helps reduce cold spots near the floor.
When to Use a Floor-Mounted Unit
- Your walls are slanted or short. Cape Cod-style homes and finished attics with knee walls often don't have the height for a high wall-mounted unit.
- You have large windows. Sunrooms and bright spaces with limited upper wall area can place a console under the glass to keep airflow steady.
- You want easy access for maintenance. Reaching down to clean filters is simpler than climbing up each time.
- Heating comfort matters most. Warm air rises naturally, so sending heat out from floor level helps reduce cold spots and keep feet warmer in winter.
Floor-Ceiling Mini Split Units
Unlike most indoor unit types, floor-ceiling mini split units can be installed either at floor level or suspended from the ceiling, so the final placement decision can be made at install time based on the actual room.
When ceiling-mounted, they're built to push air across long distances, making them well suited for larger or deeper rooms.
When to Use a Floor-Ceiling Unit
- Your room has a solid roof or no attic access. Converted spaces, garages, and rooms without a drop ceiling can't fit a recessed cassette, but a suspended unit works well.
- You need airflow that reaches far. Long rooms, workshops, and classrooms benefit from the strong, long-throw airflow these units provide.
- Usable wall space is limited. Windows, shelving, or equipment may take up the walls, so mounting the unit overhead keeps everything clear.
- You're equipping a commercial space. Restaurants, retail stores, and similar environments often choose these units for their high output and wide coverage.
Concealed Ducted Mini Split Units
Concealed ducted mini split units sit out of sight, inside a ceiling cavity, attic, or closet. Short ducts carry air to small supply grilles, so only the vents show in the room.
When to Use a Concealed Ducted Unit
- You want a clean, hidden look. This setup keeps all HVAC equipment out of view.
- Quiet operation matters to you. The fan sits above the ceiling, keeping noise away from the living area.
- You want to serve nearby spaces together. One unit can condition a bedroom and an attached bathroom or closet through separate grilles.
- Shared temperature control is fine. Rooms tied to one unit typically share a thermostat.
- You're remodeling or building new. Installation is easiest when ceilings or walls are open, since the unit and ducts need framing space.
Choosing the Right Type for Your Space
| Unit Type | Best For | Installation | Key Requirement |
| Wall-mounted | Most rooms; bedrooms, living rooms, dens | Easiest | Open upper wall space |
| Ceiling cassette | Large, open areas; rooms where walls need to stay clear | Moderate | Attic or plenum depth above ceiling |
| Floor-mounted | Sloped walls, under-window placement, heating-focused rooms | Easy | Low wall clearance at floor level |
| Floor-ceiling | No attic access, long rooms, commercial spaces | Easier than cassette; no ceiling cavity needed | Ceiling or floor mount point; no drop ceiling required |
| Concealed ducted | Remodels or new builds where all hardware must be hidden | Most involved | Ceiling or wall cavity with framing space |
Your ideal indoor unit depends on the room layout, ceiling structure, style preferences, and budget.
Many homes use different unit styles within the same system: a ceiling cassette in the open living area and wall-mounted units in the bedrooms. Mini splits support this kind of mixed setup, so each room can get the type that suits it best.
Before committing to a style, confirm that your ceiling, attic, or walls can actually accommodate it. An HVAC installer can verify the fit before you buy.
