Which WiFi Channel Frequency Bands Does WiFi Support?

DELLA supports the 2.4 GHz WiFi channel frequency band only.

What kind of refrigerant does this unit use?

This unit uses R454B refrigerant. This unit comes pre-charged with R454B refrigerant for up to 24.5 feet of lineset. If your installation does not exceed this length, no additional refrigerant is needed.

What is the difference between R454B and R410A?

R454B is a new-generation eco-friendly refrigerant that complies with EPA regulations. It can replace the original R410A models, offering better performance and greater energy efficiency.

Can I get longer extensions for this installation kit?

Yes, you can purchase a longer lineset separately. Please note, if the extended lineset is longer than 25 feet, additional refrigerant will be required. Make sure to consult a professional HVAC technician for proper installation.

What is the Della Central Air Conditioner Coverage?

Our central air conditioner systems come with comprehensive standard coverage— 5-Year Parts Coverage and 10-Year Compressor Coverage.

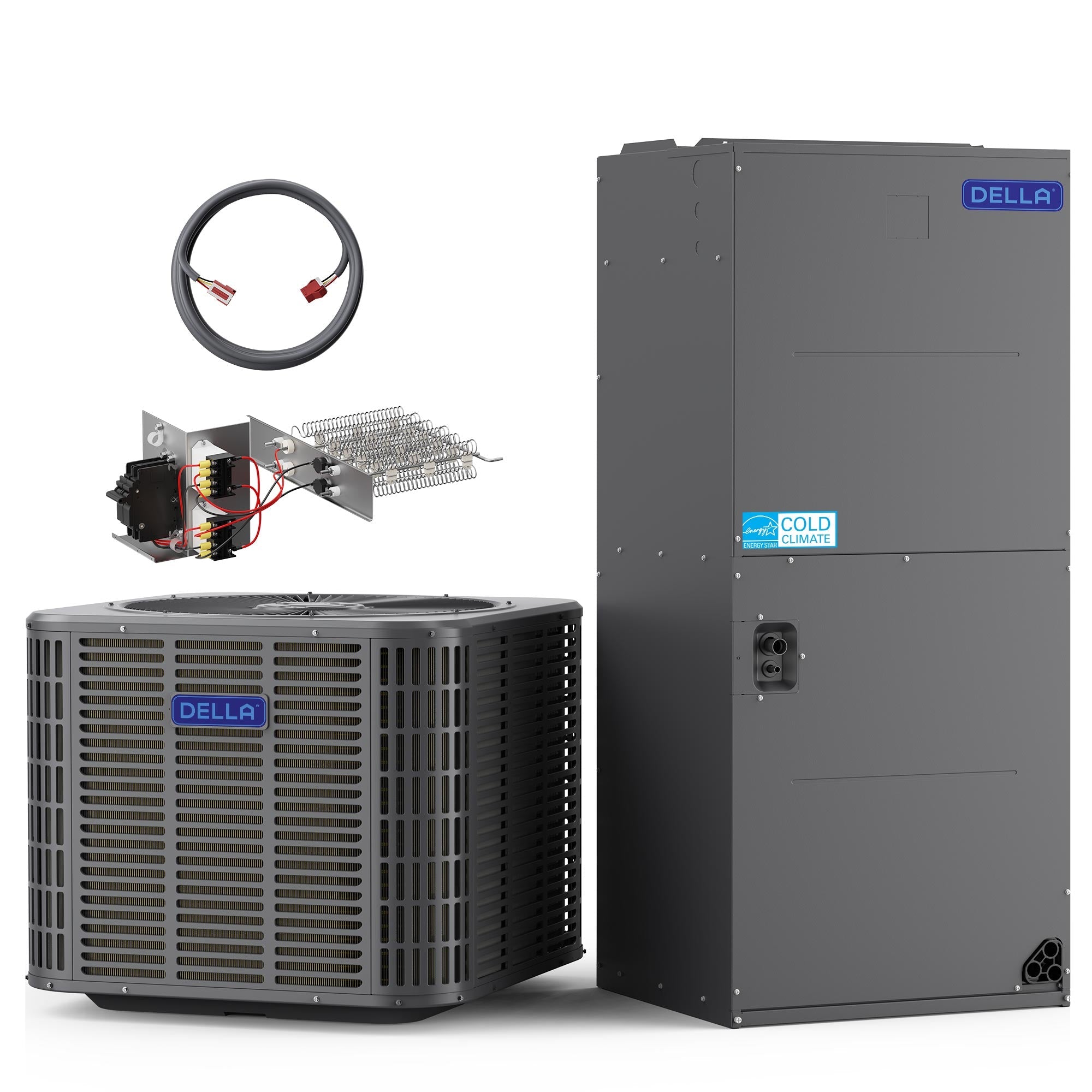

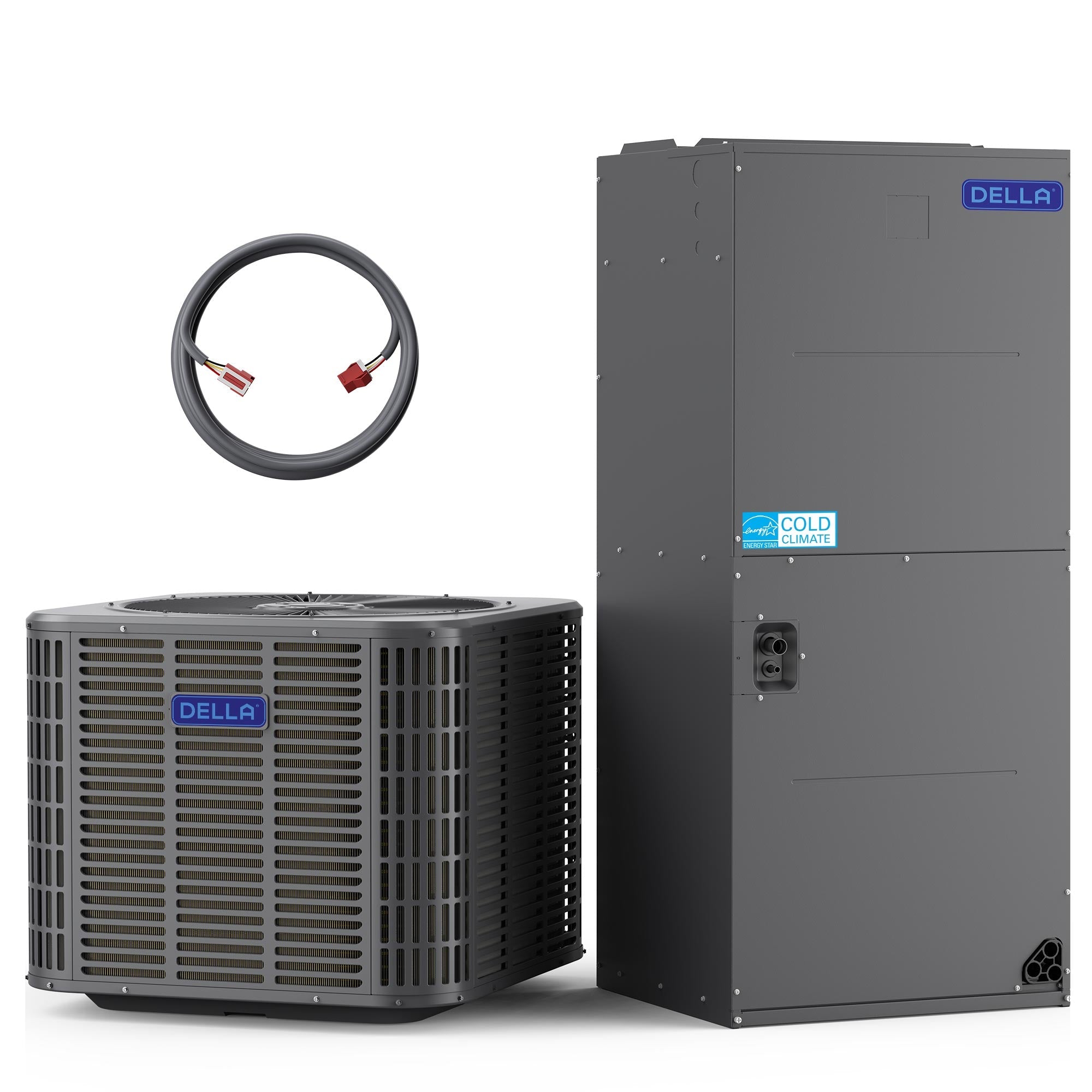

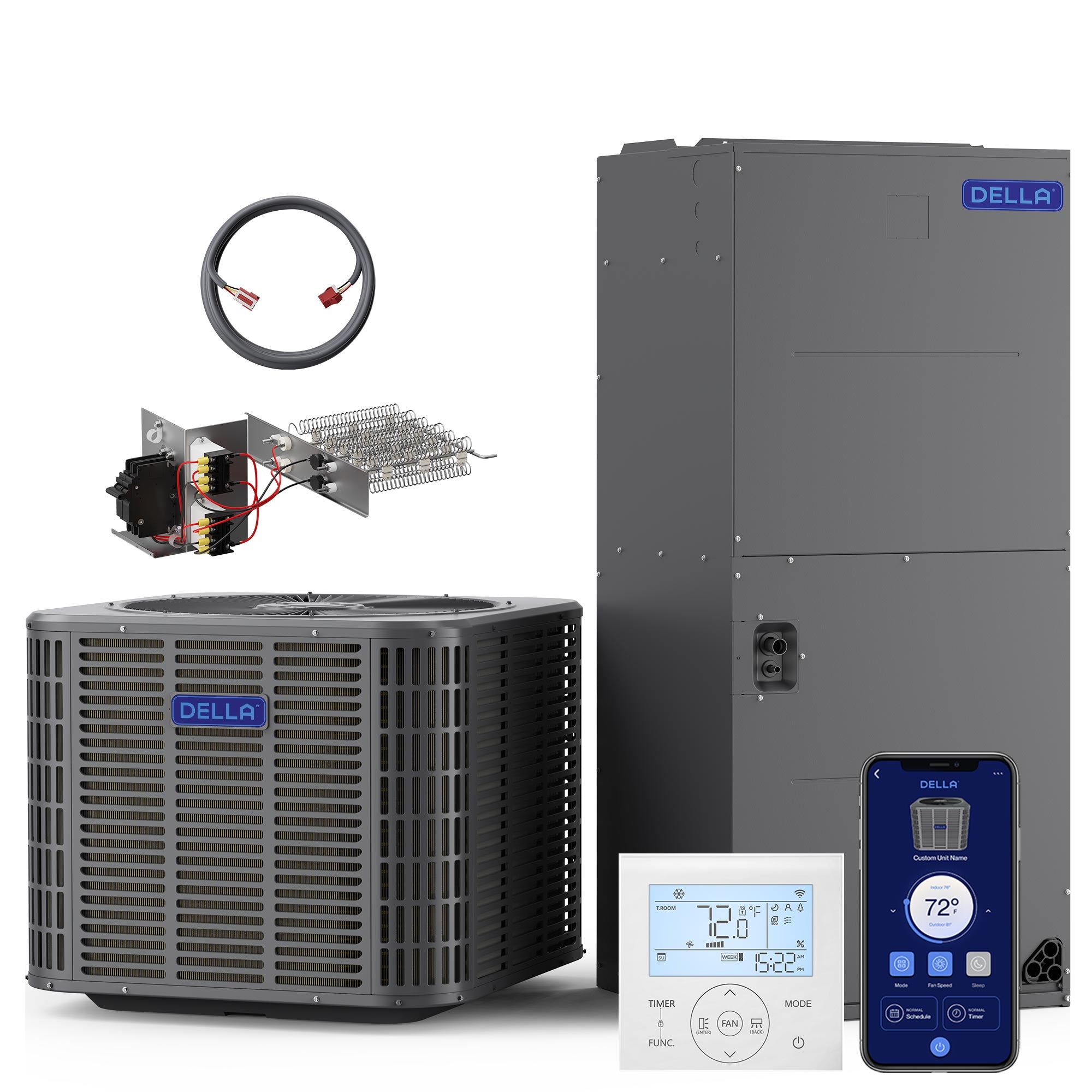

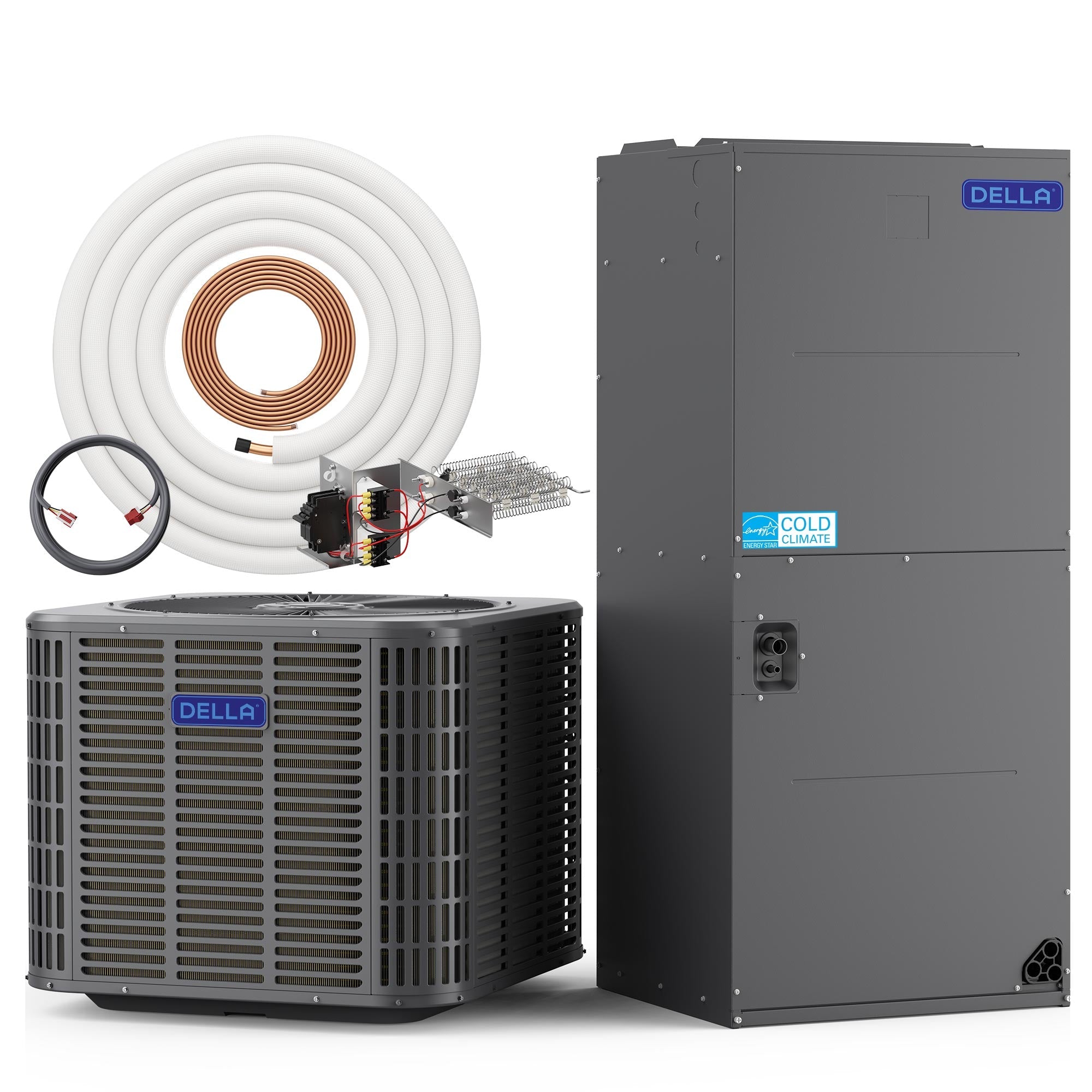

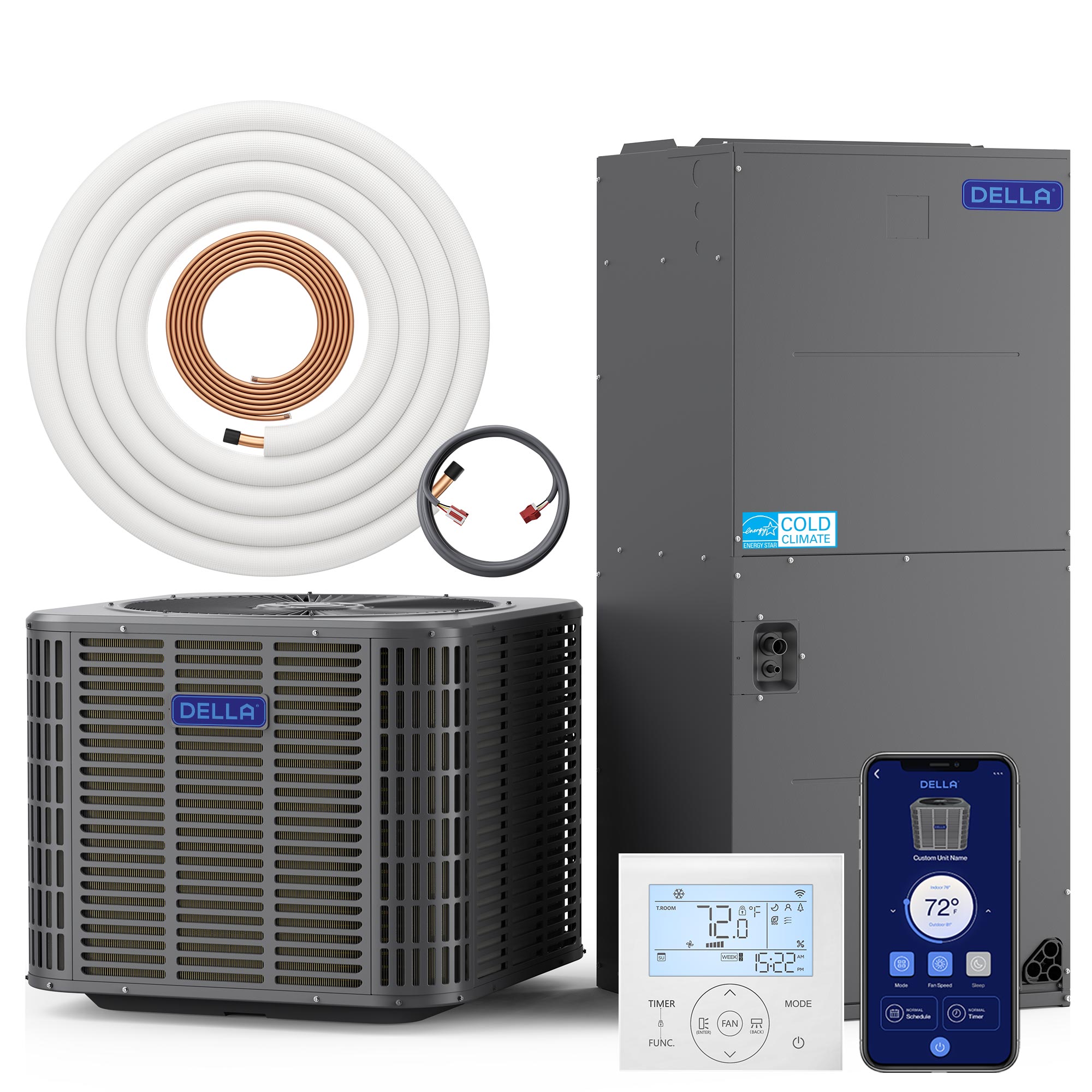

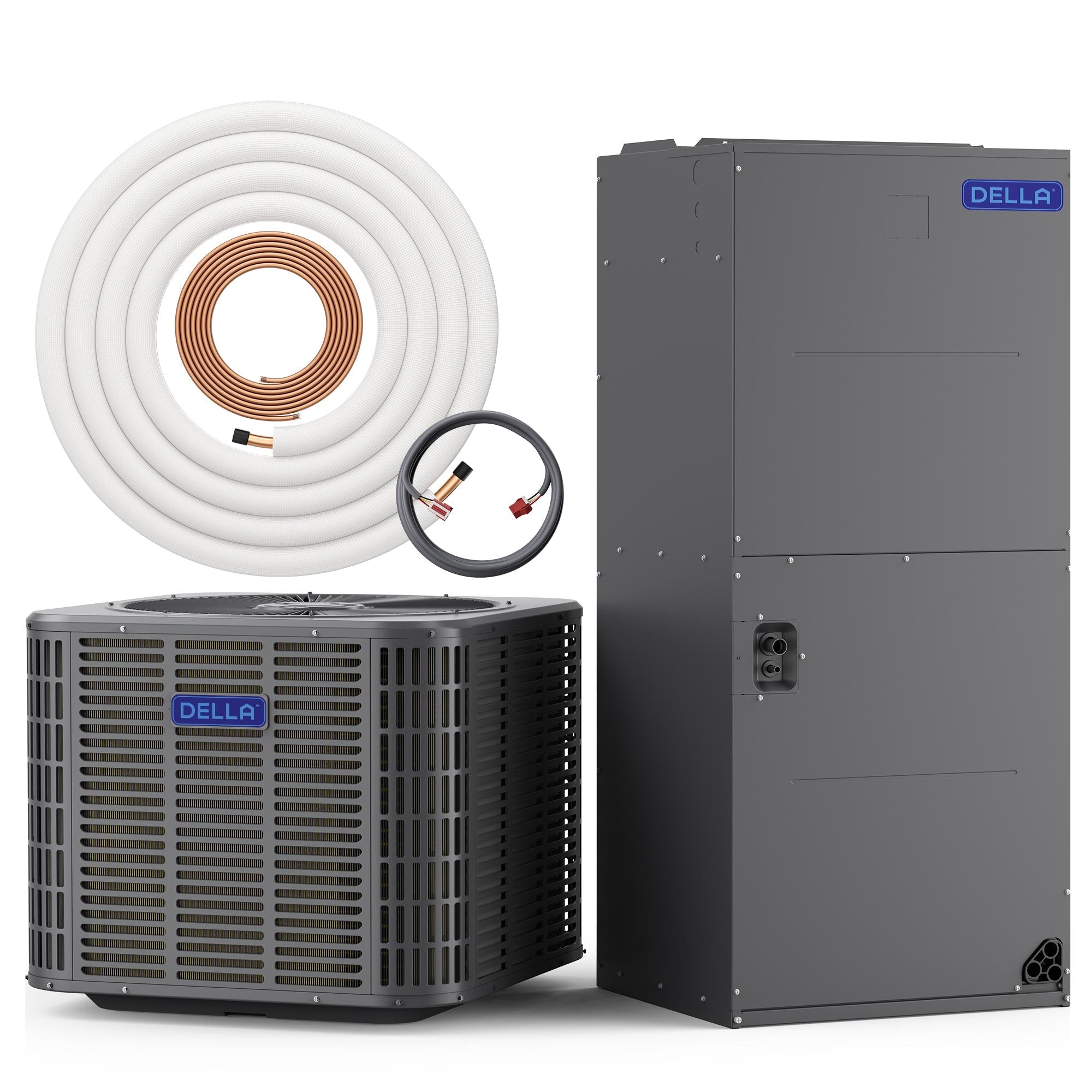

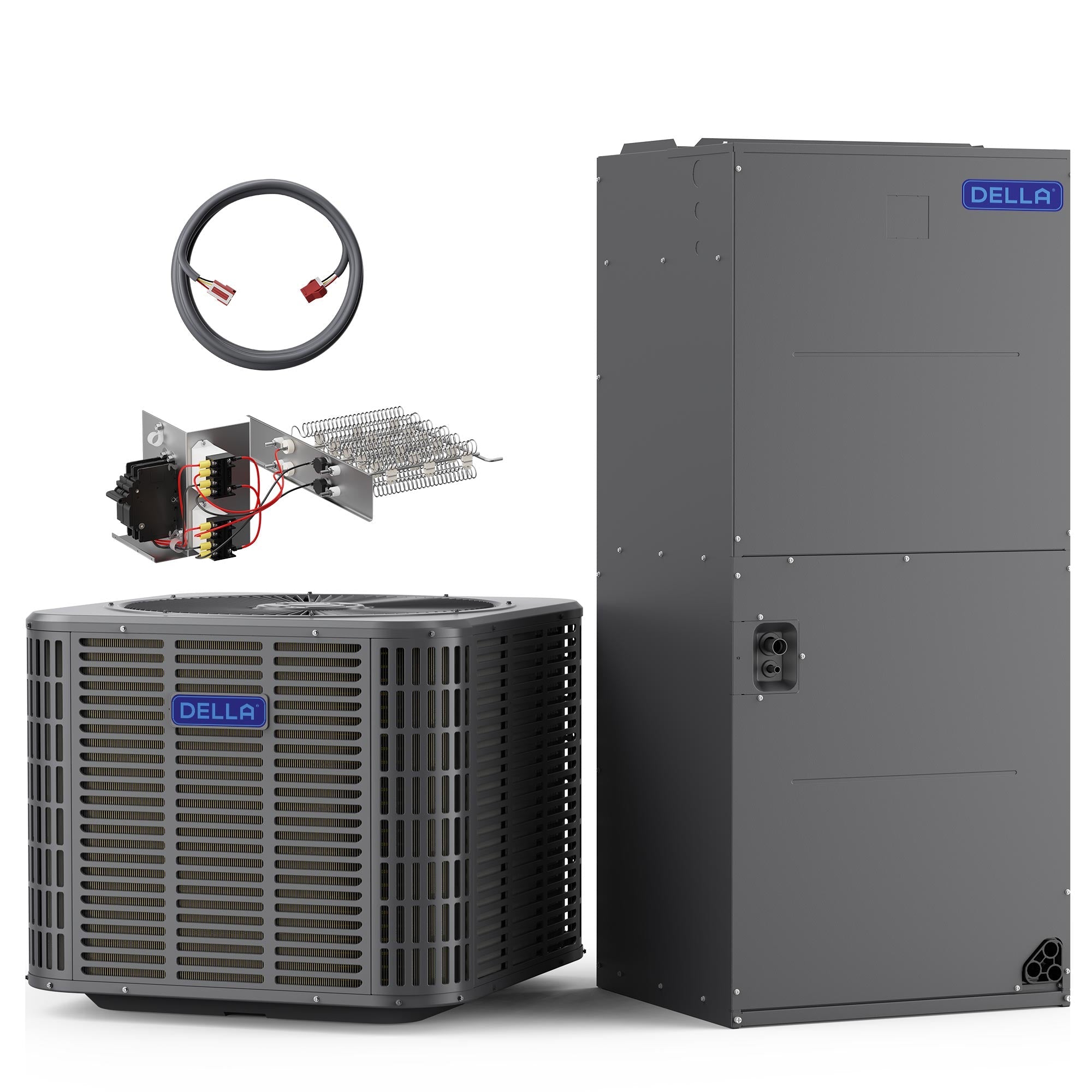

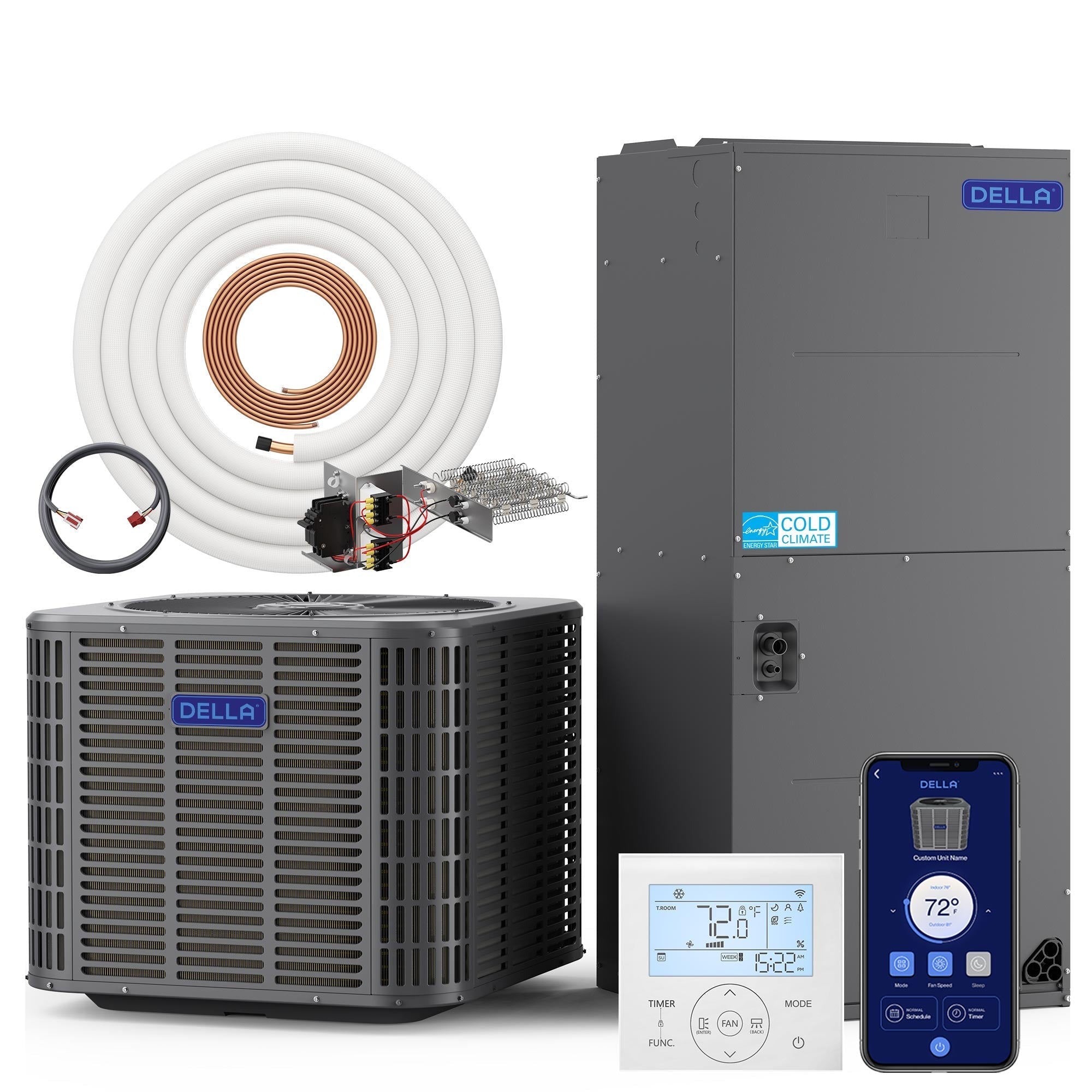

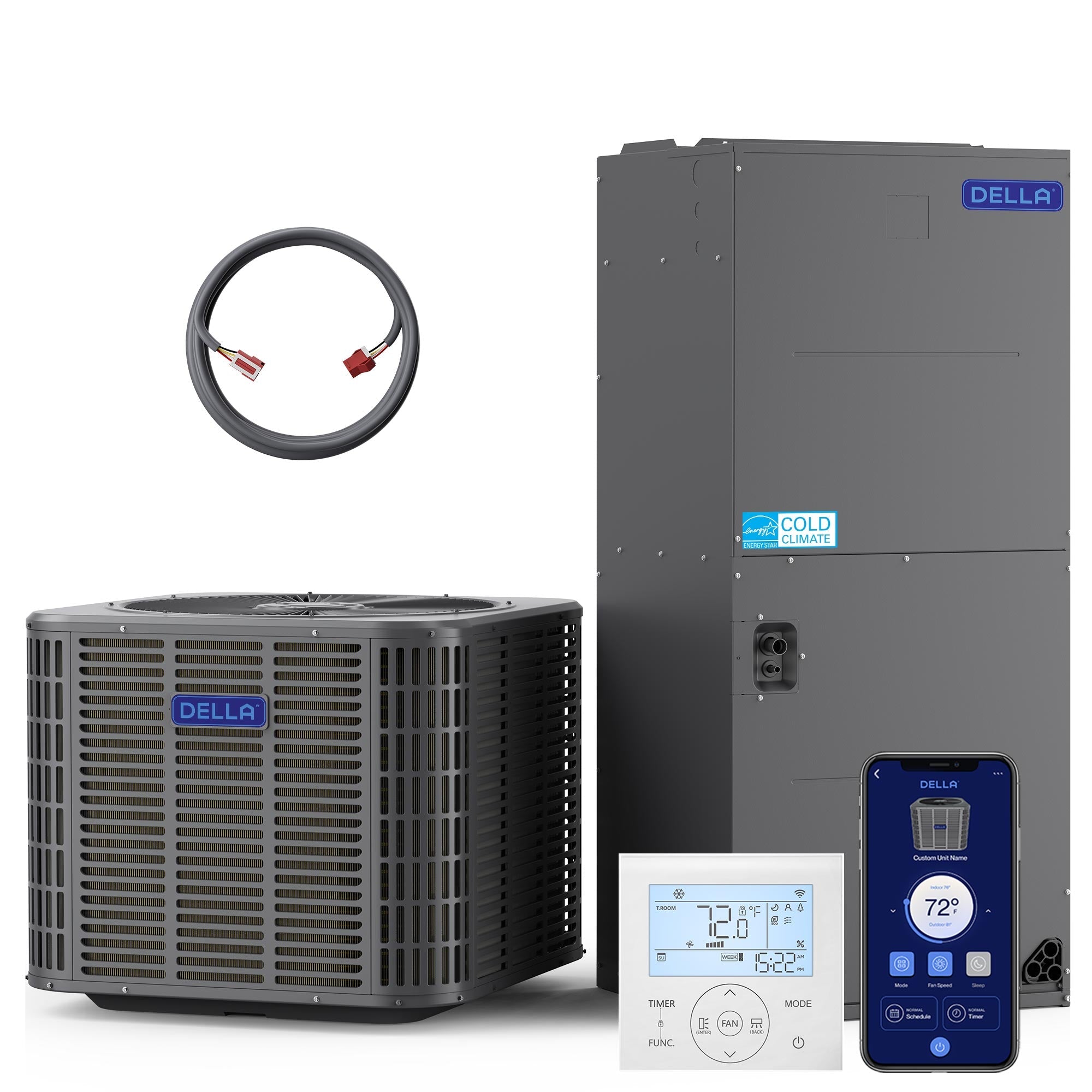

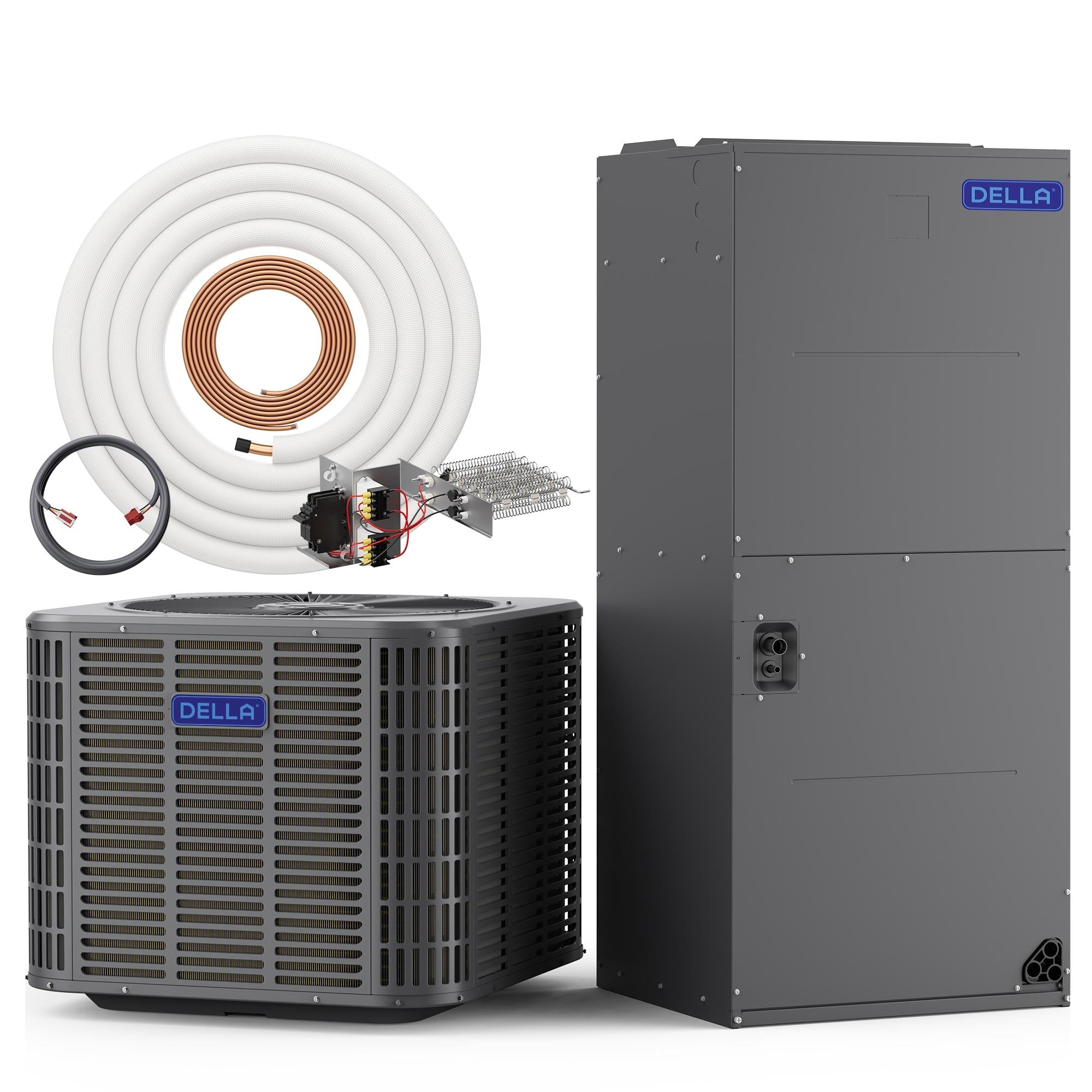

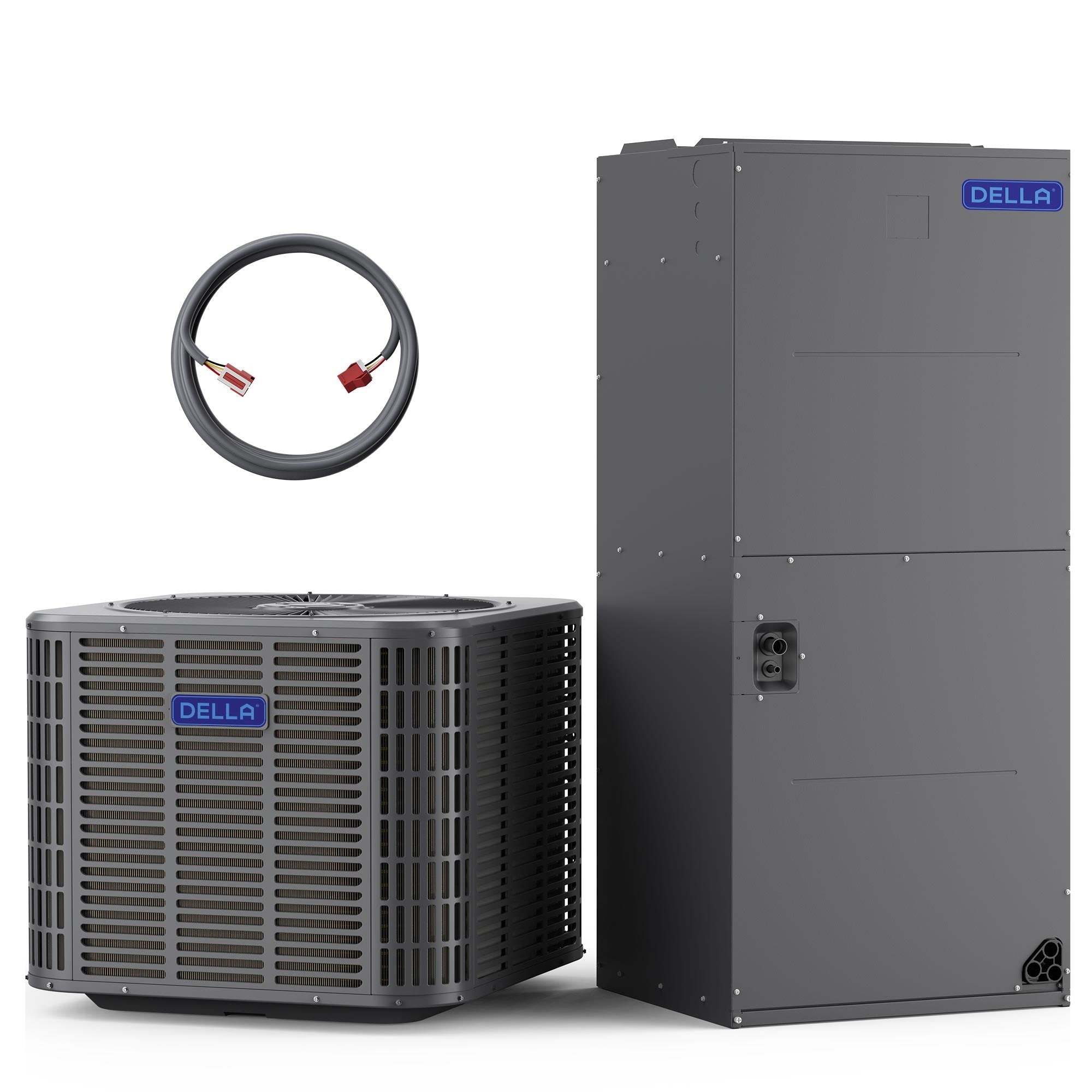

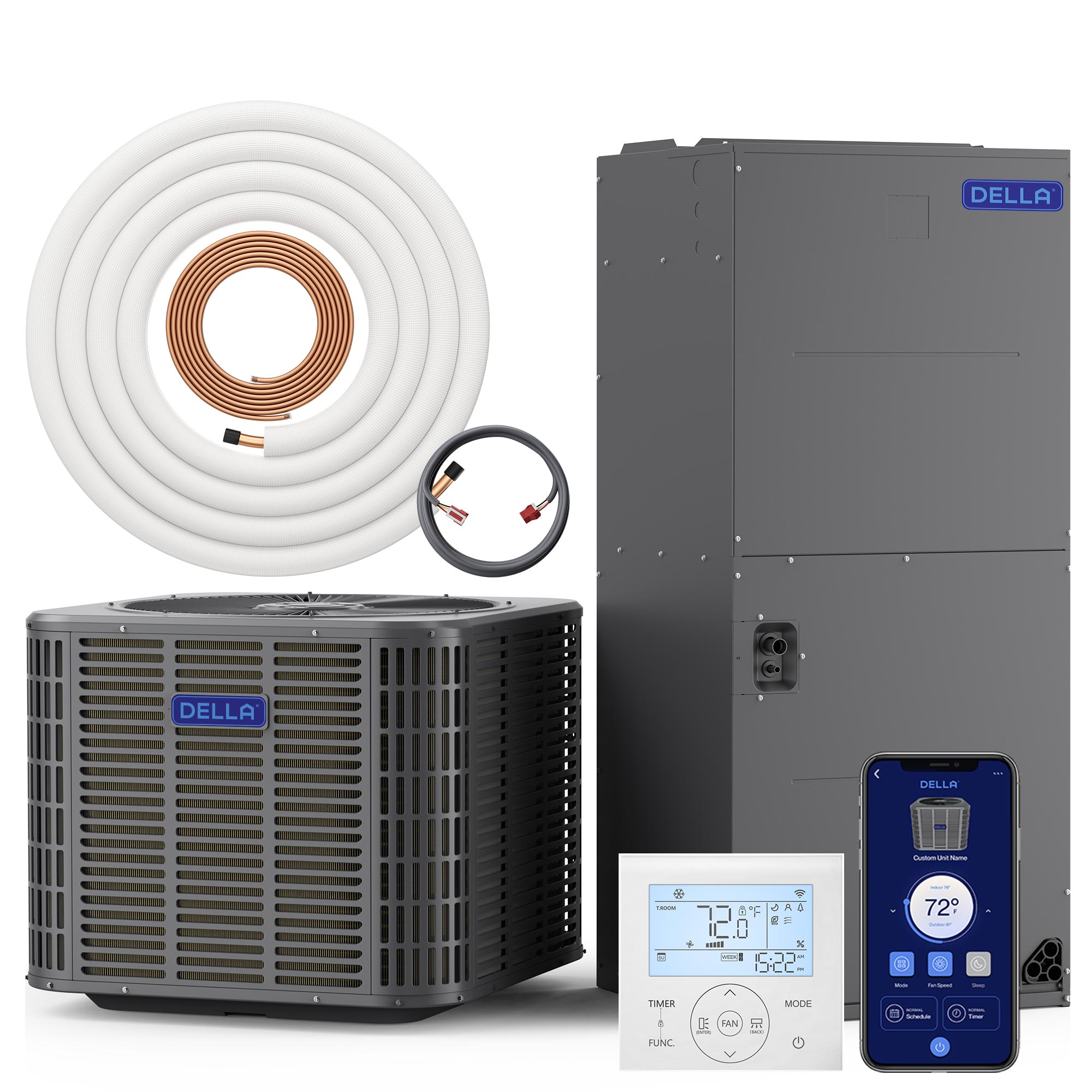

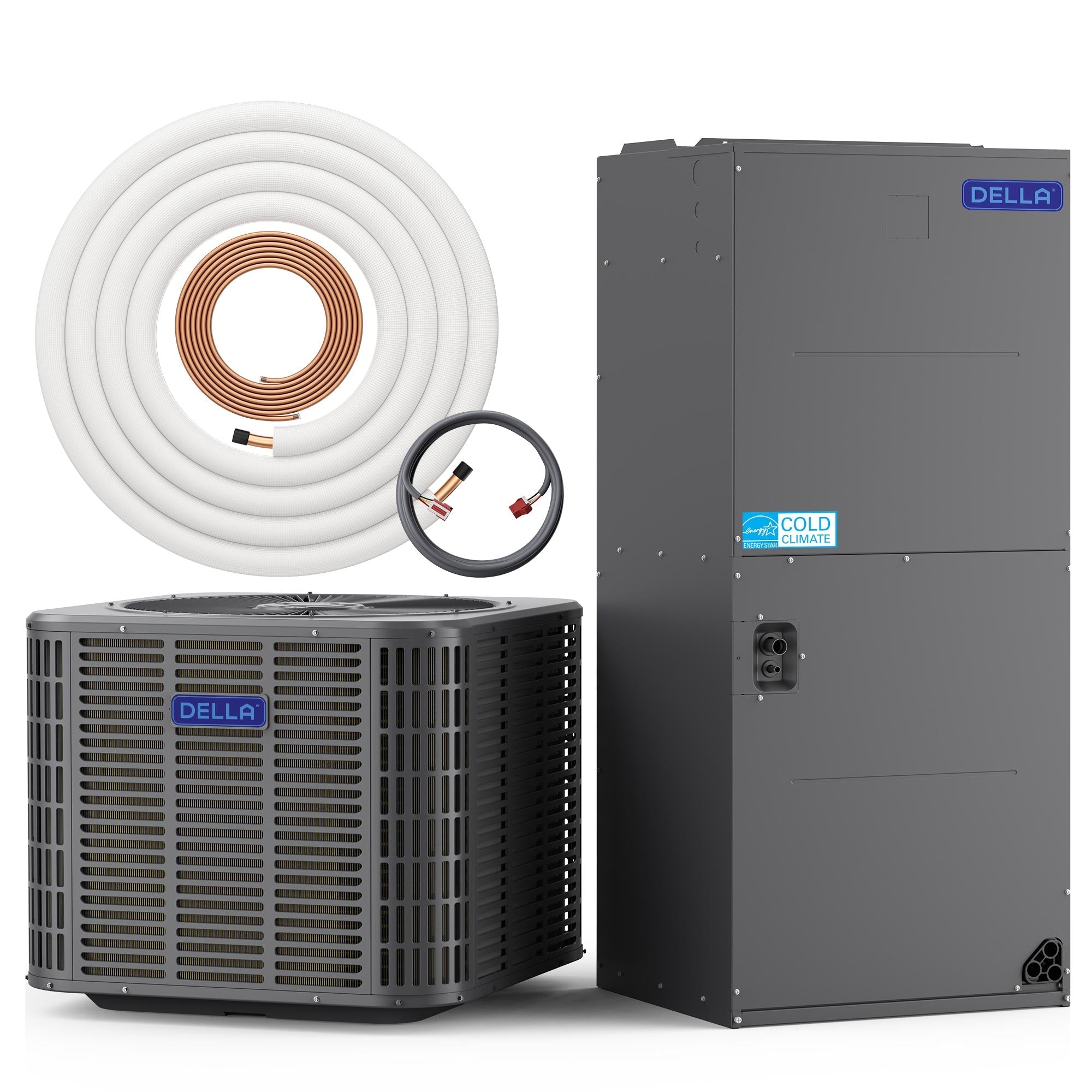

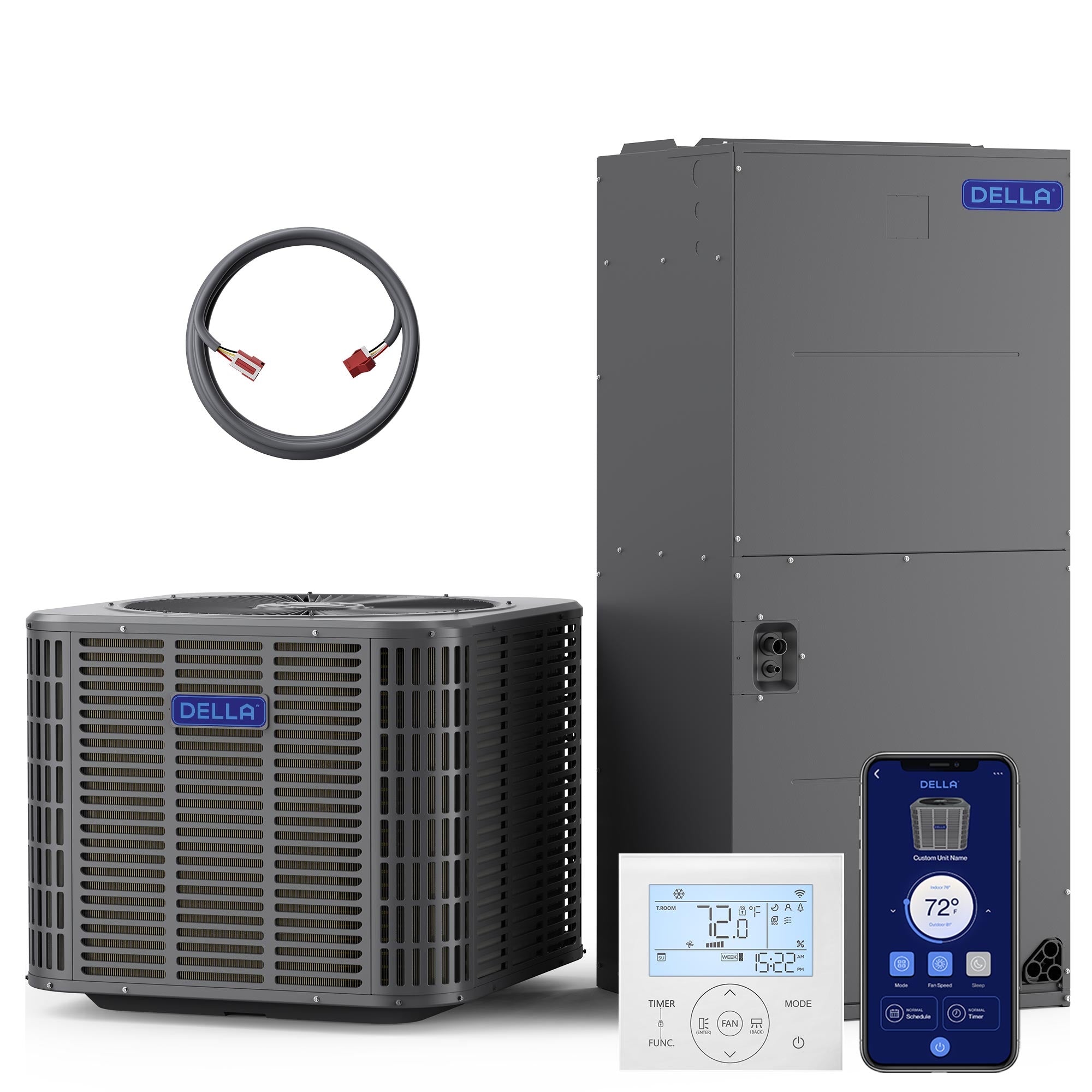

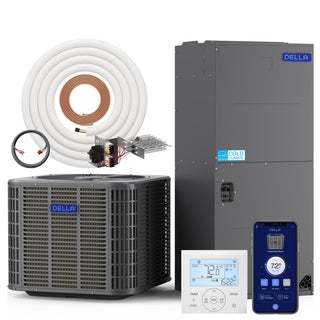

DELLA 34,000 BTU 19 SEER2 Ducted Central Air Conditioner with Air Handler

SKU: T-36K-I+O

$3,799.96

Unit price: per

Enjoy 30% off automatically at checkout.

Cooling Capacity: 34000
Heating Capacity: 36000

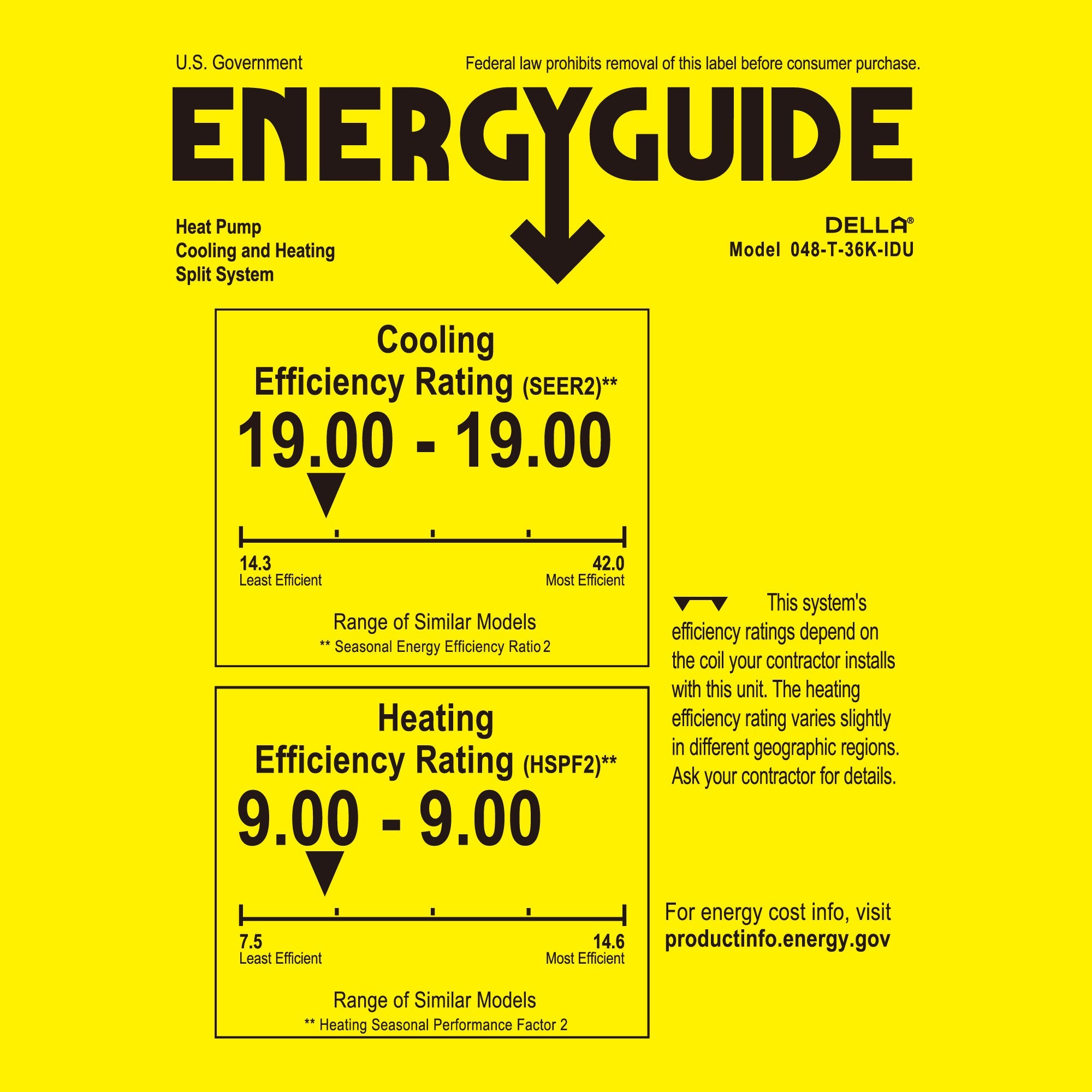

SEER2: 19
Fitting Area: 1500
Voltage: 208-230V
Refrigerant Type: R454B
Indoor Maximum Fuse Size: 15A
Outdoor Maximum Fuse Size: 35A
Copper Line Length: None / 16ft / 25ft / 35ft / 50ft
Copper Line Size: 3/8 inch and 3/4 inch
Climate Range: -5°F - 125°F

See full Tech Specs

Customize your setup

Line Set

Heat Kit

Thermostat control w/Wifi

DELLA 34,000 BTU 19 SEER2 Ducted Central Air Conditioner with Air Handler

Line Set: None

Heat Kit: None

Thermostat control w/Wifi: None

Local rebates

Enter the ZIP code where this system will be installed to see current utility and government incentives.

Checking current programs for your area...

No local rebates were found for this product.

Searched ZIP

Rebate details couldn't be loaded right now.

Free & fast shipping

30-day money-back guarantee

Free lifetime coverage

User Manual (No Wired Controller)

User Manual (With Wired Controller)

AHRI Certificate

Description

This 34,000 BTU ducted central AC system provides efficient cooling and heating with R-454B refrigerant and 19 SEER2 performance powered by inverter technology. Its heat pump operates in temperatures as low as -5°F, offering dependable comfort through colder months.

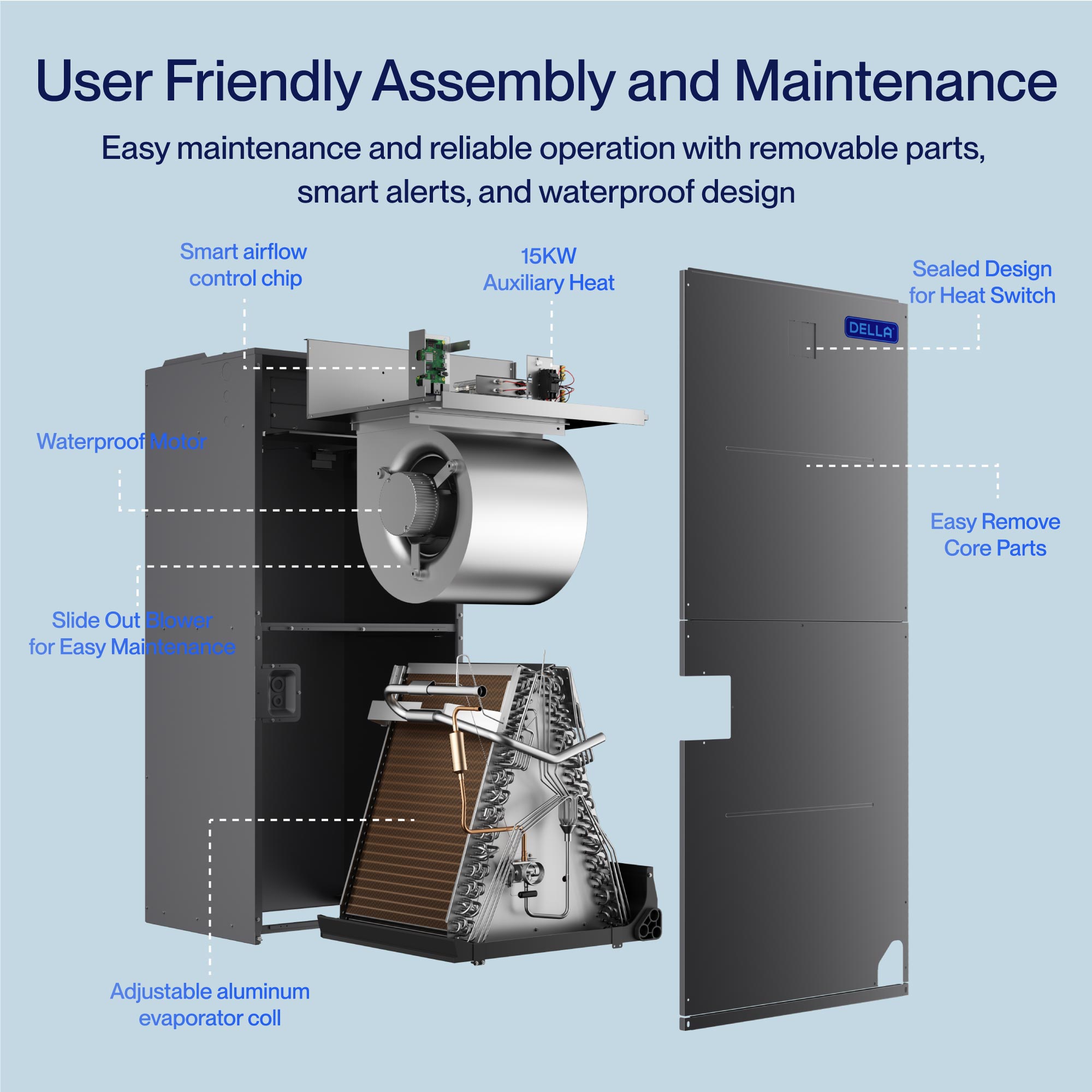

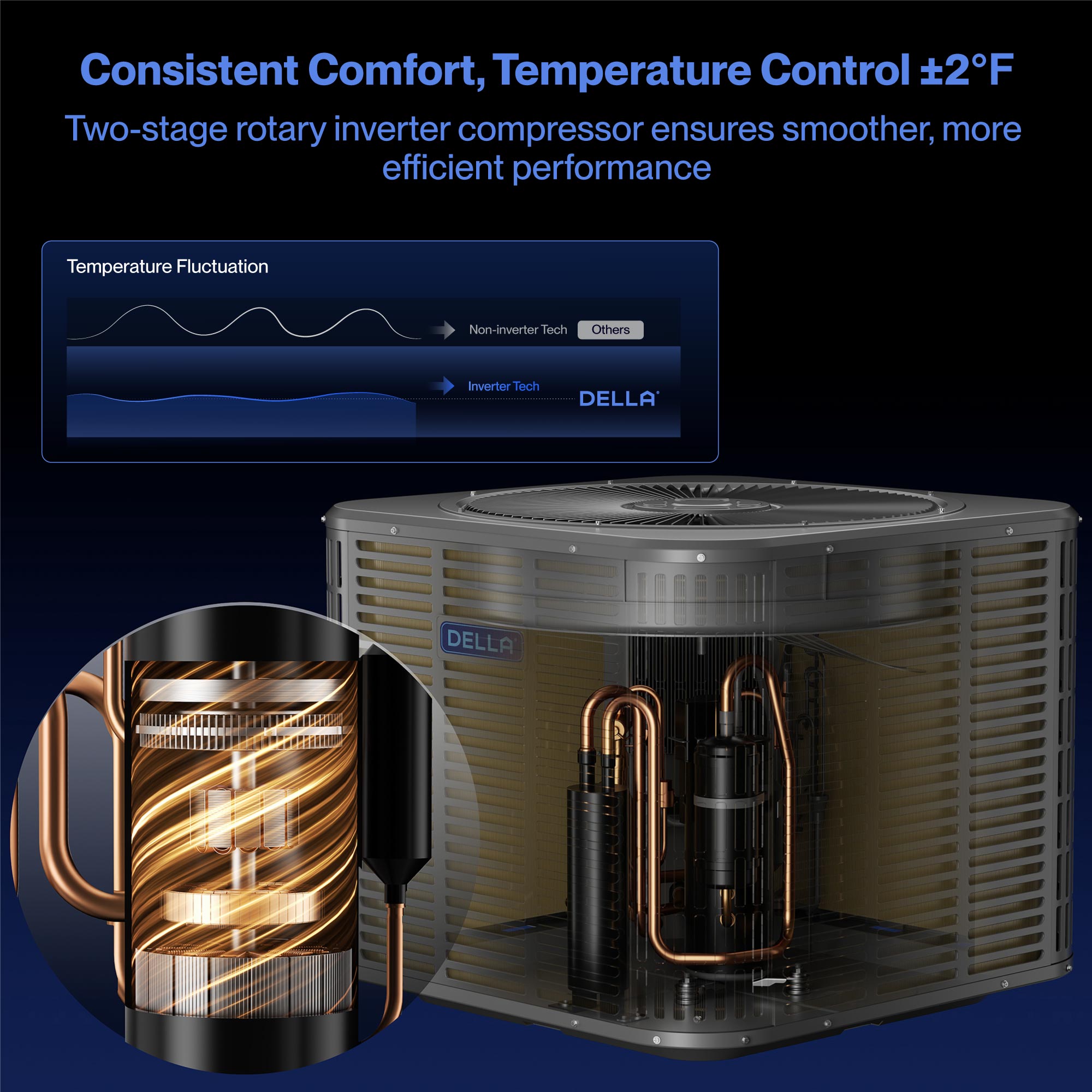

A three-cylinder, dual-stage inverter rotary compressor adjusts output to maintain steady temperatures across large rooms and multi-room layouts. With support for RS-485 and 24V control, the system connects smoothly with a wide range of central AC configurations. High static pressure (200 Pa) and 7 adjustable fan speeds deliver strong, even airflow for multi-room or multi-floor spaces.

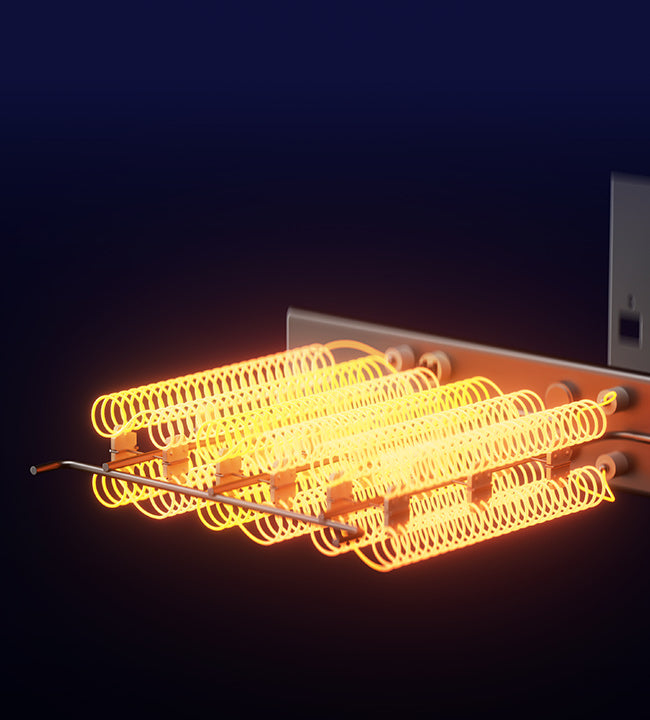

The system supports optional upgrades, including a wired controller for fixed-location control and 5kW, 10kW, 15KW, or 20kW heat kit options for additional heating capacity in extremely cold climates. These add-ons offer more flexibility based on your installation needs and regional weather.

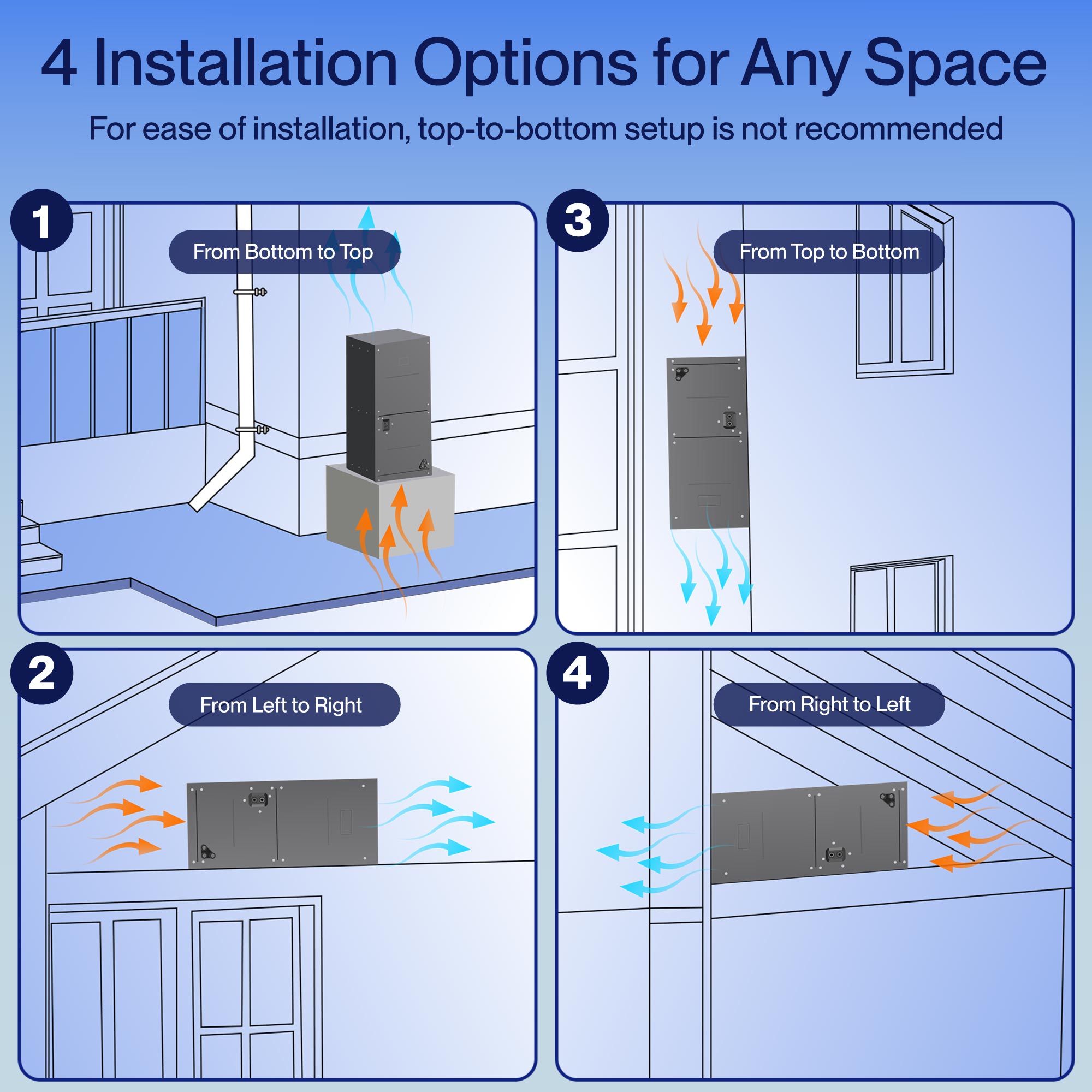

The indoor unit supports both vertical and horizontal installation to fit a variety of layouts. Note: Professional installation is required; not suitable for DIY. Electrical specs: Indoor unit max fuse 15A, outdoor unit max fuse 35A.

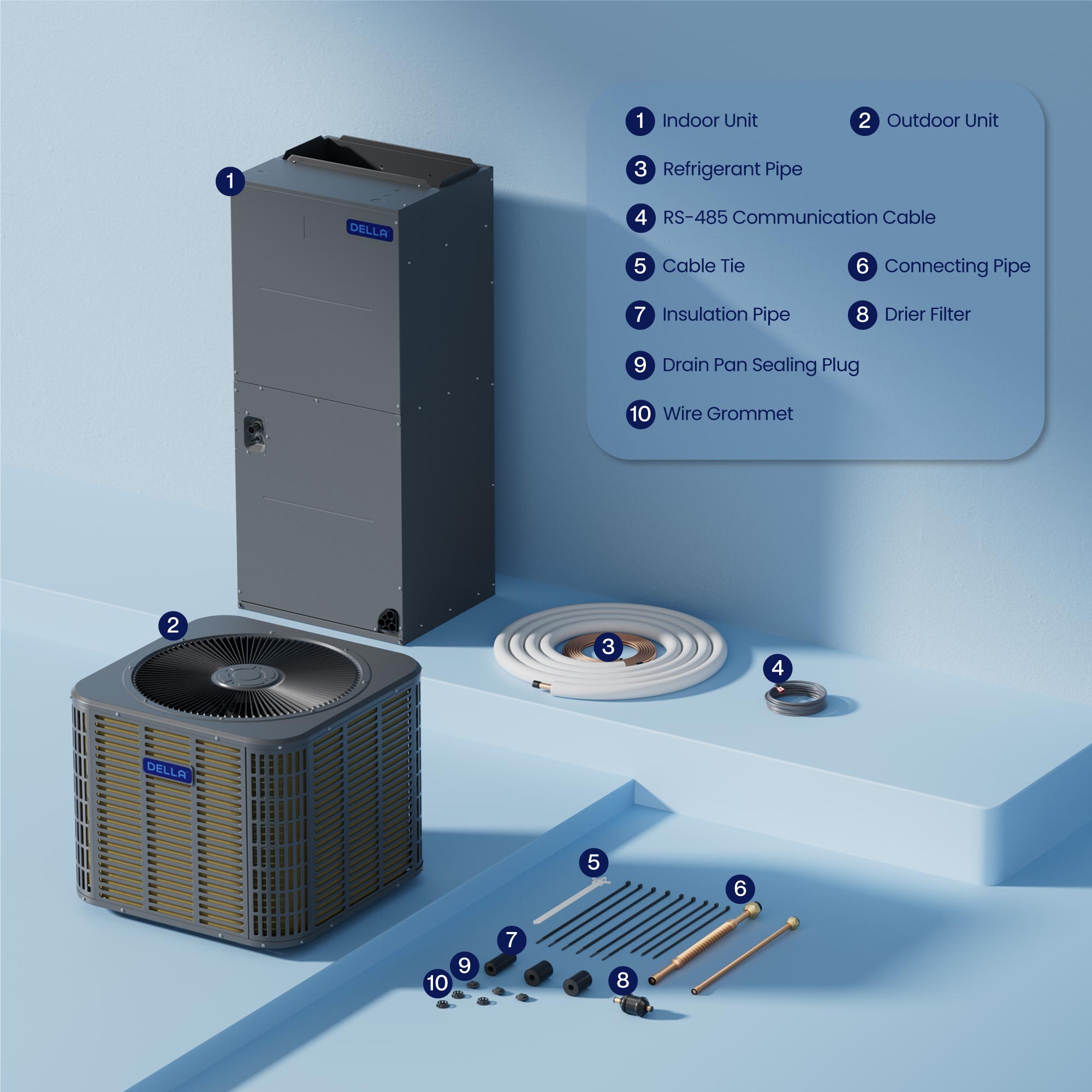

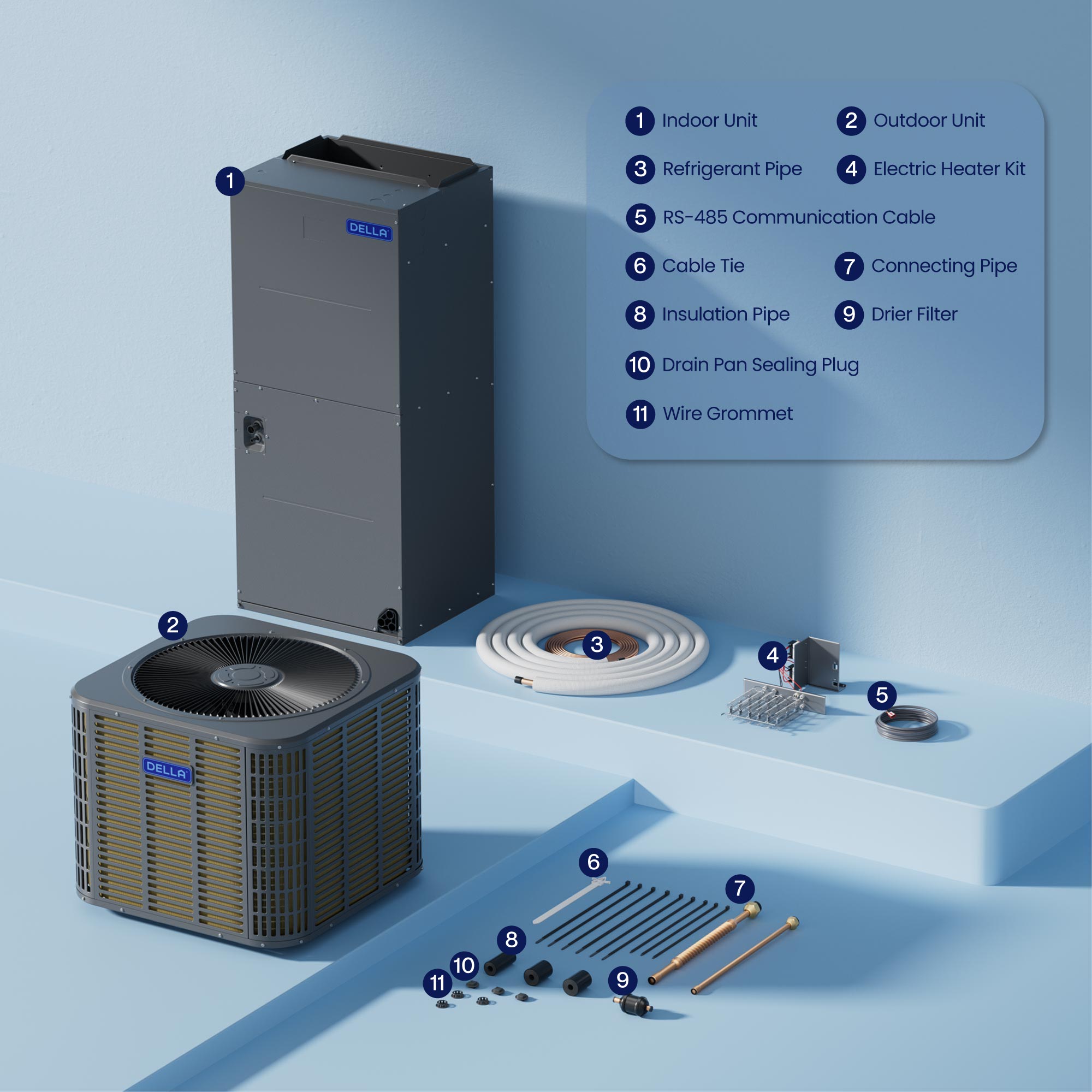

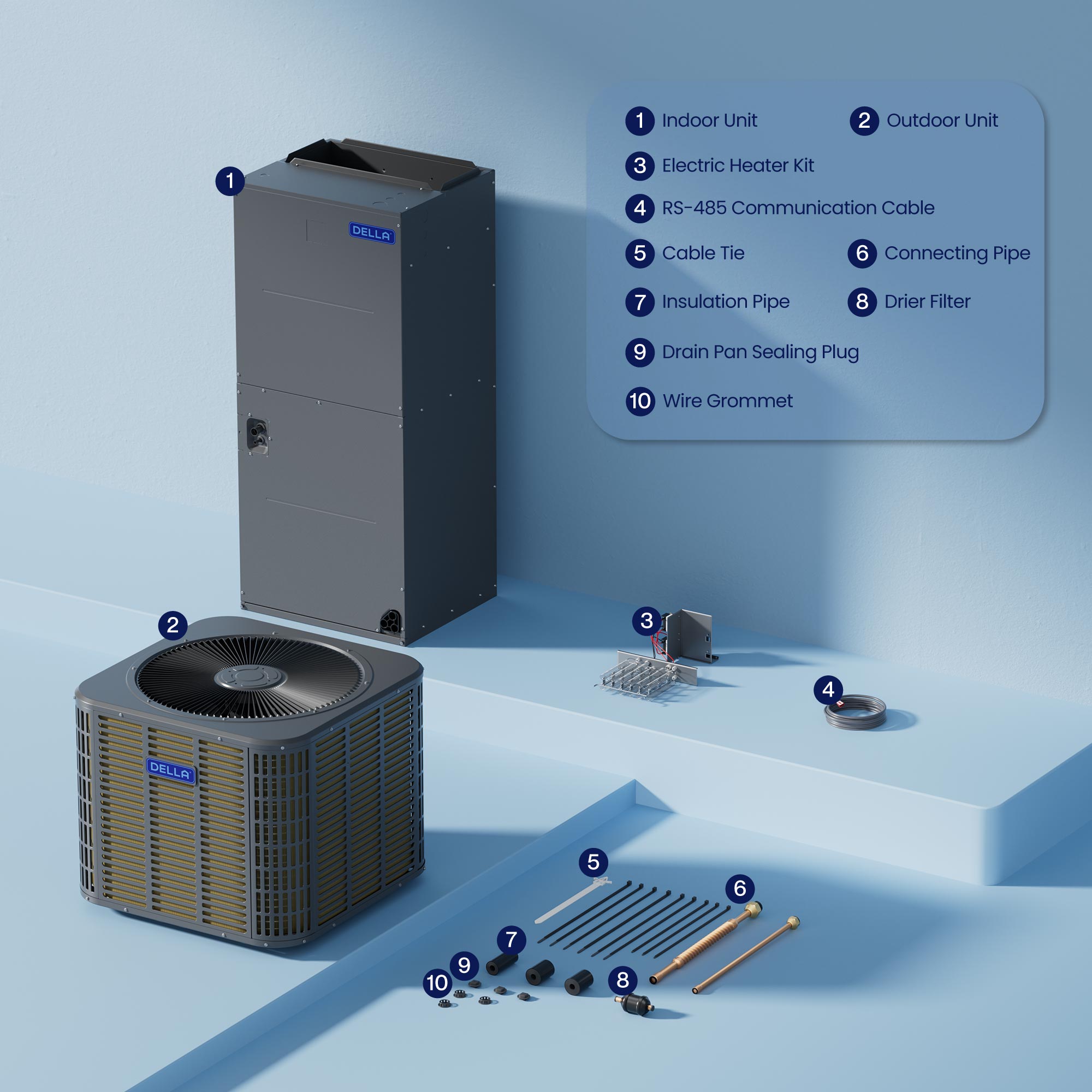

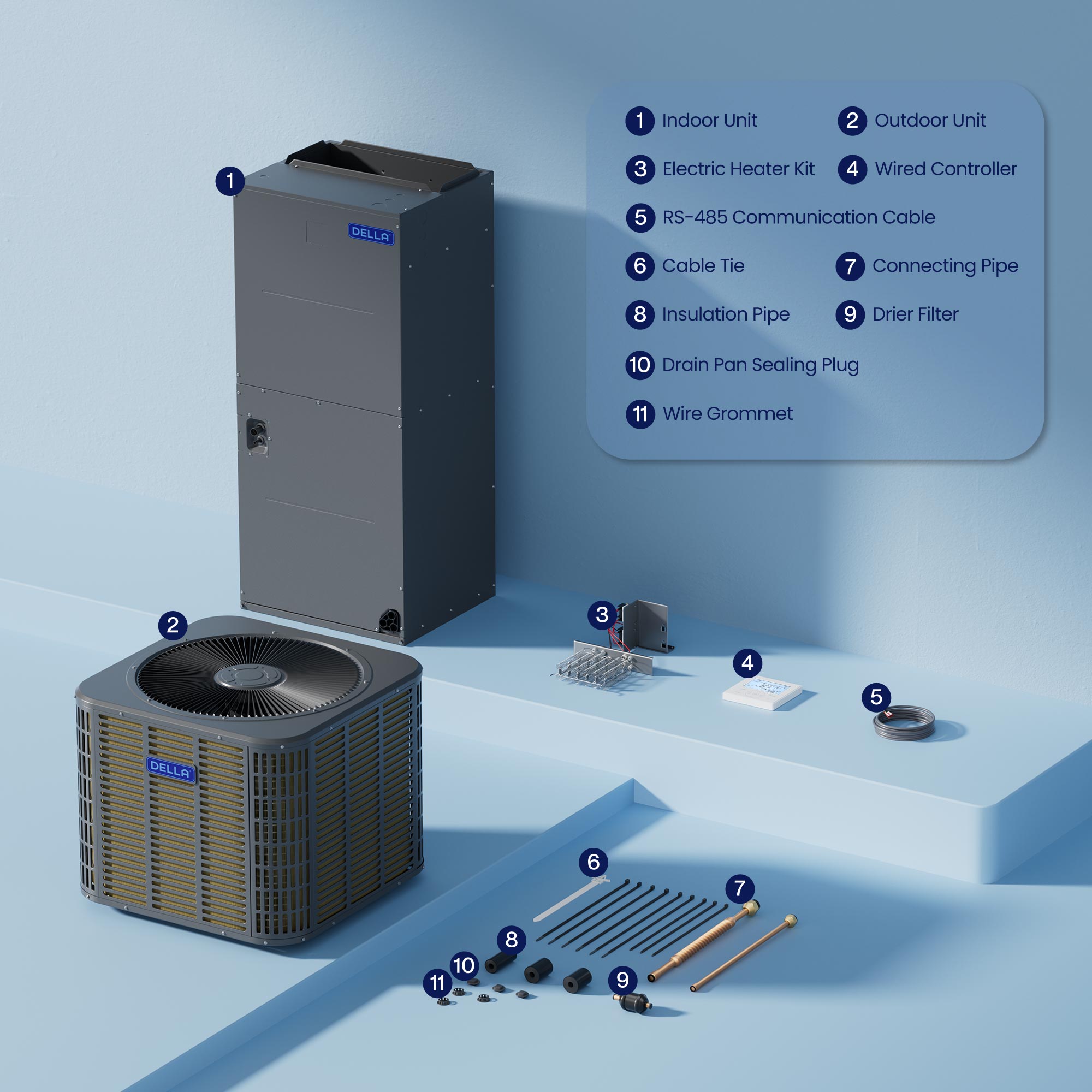

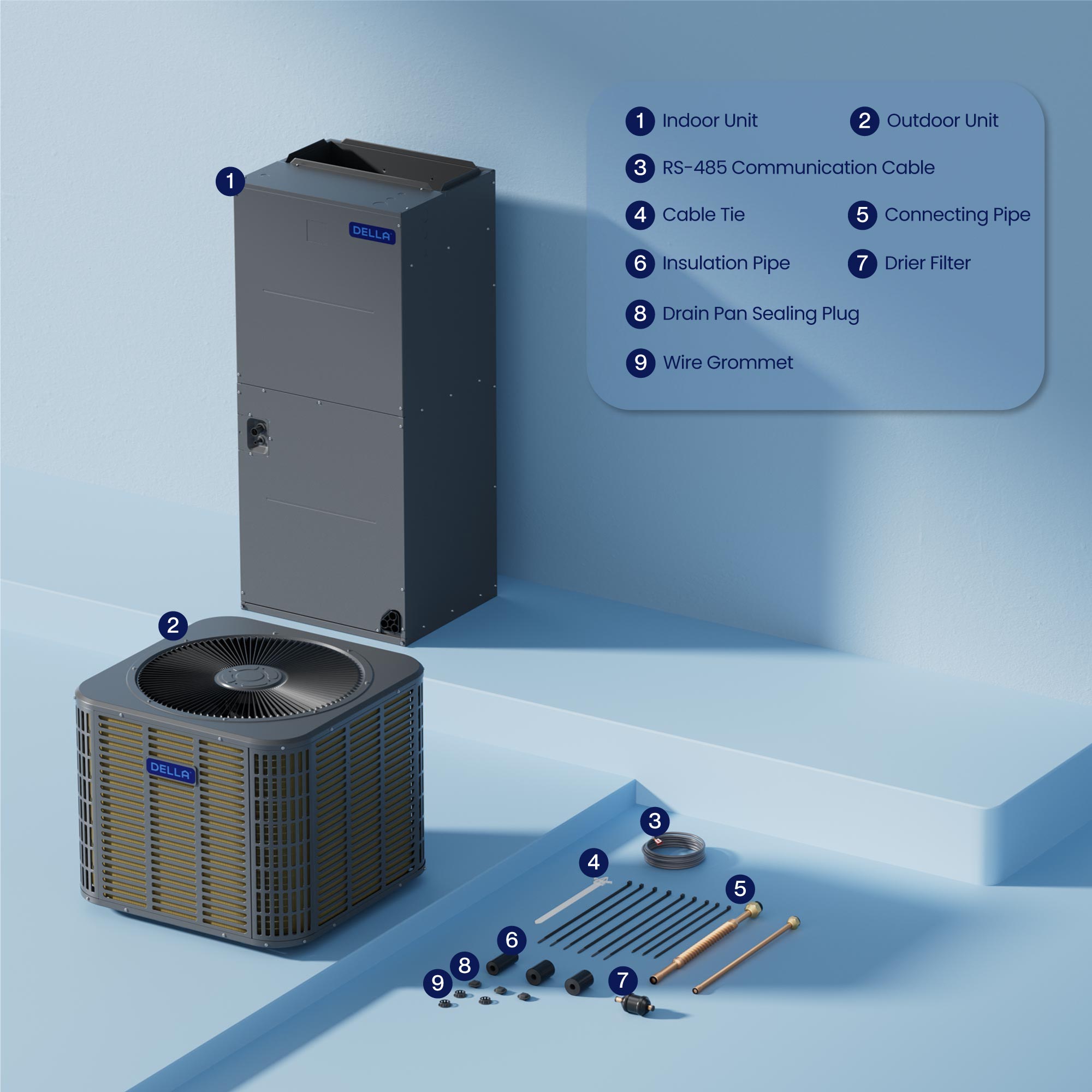

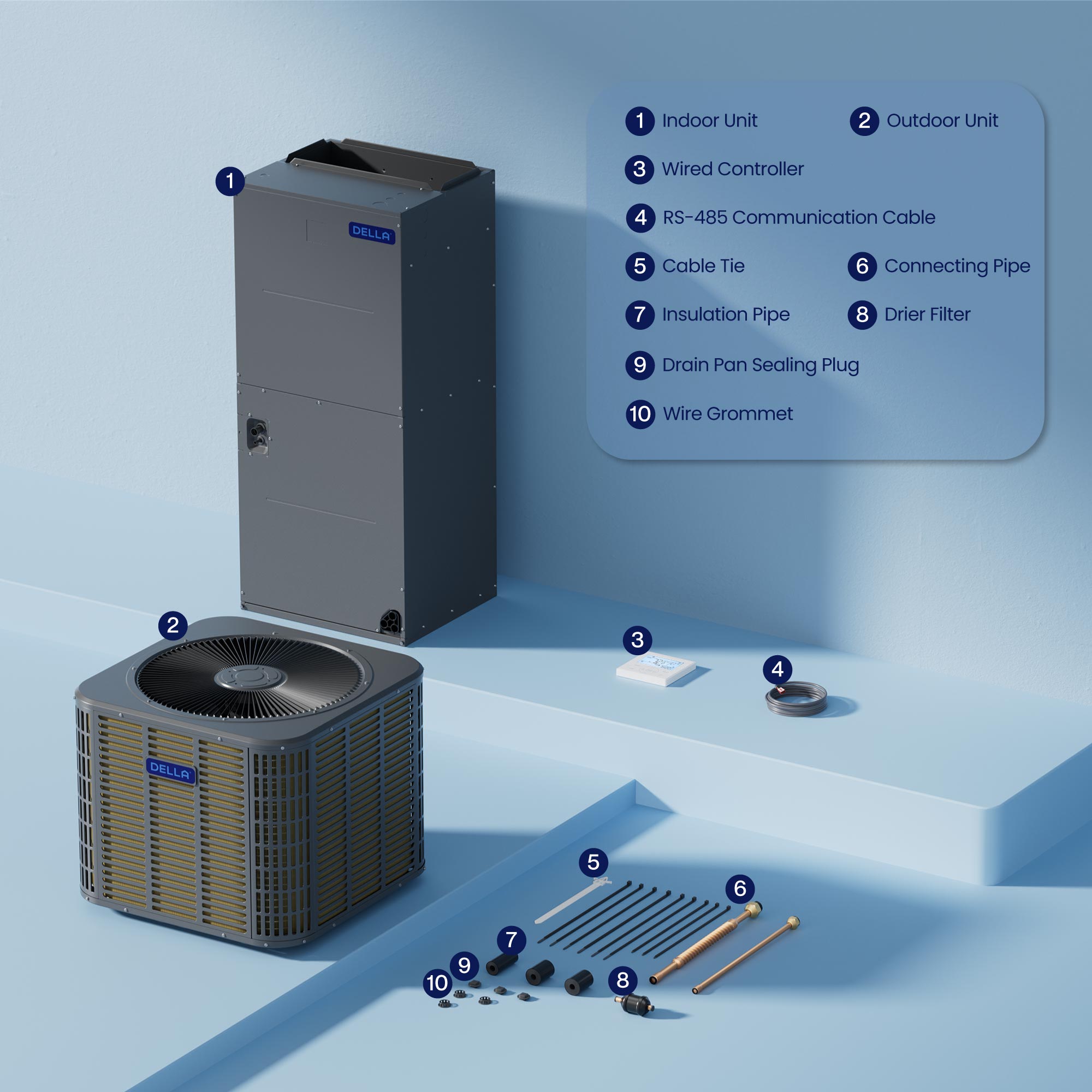

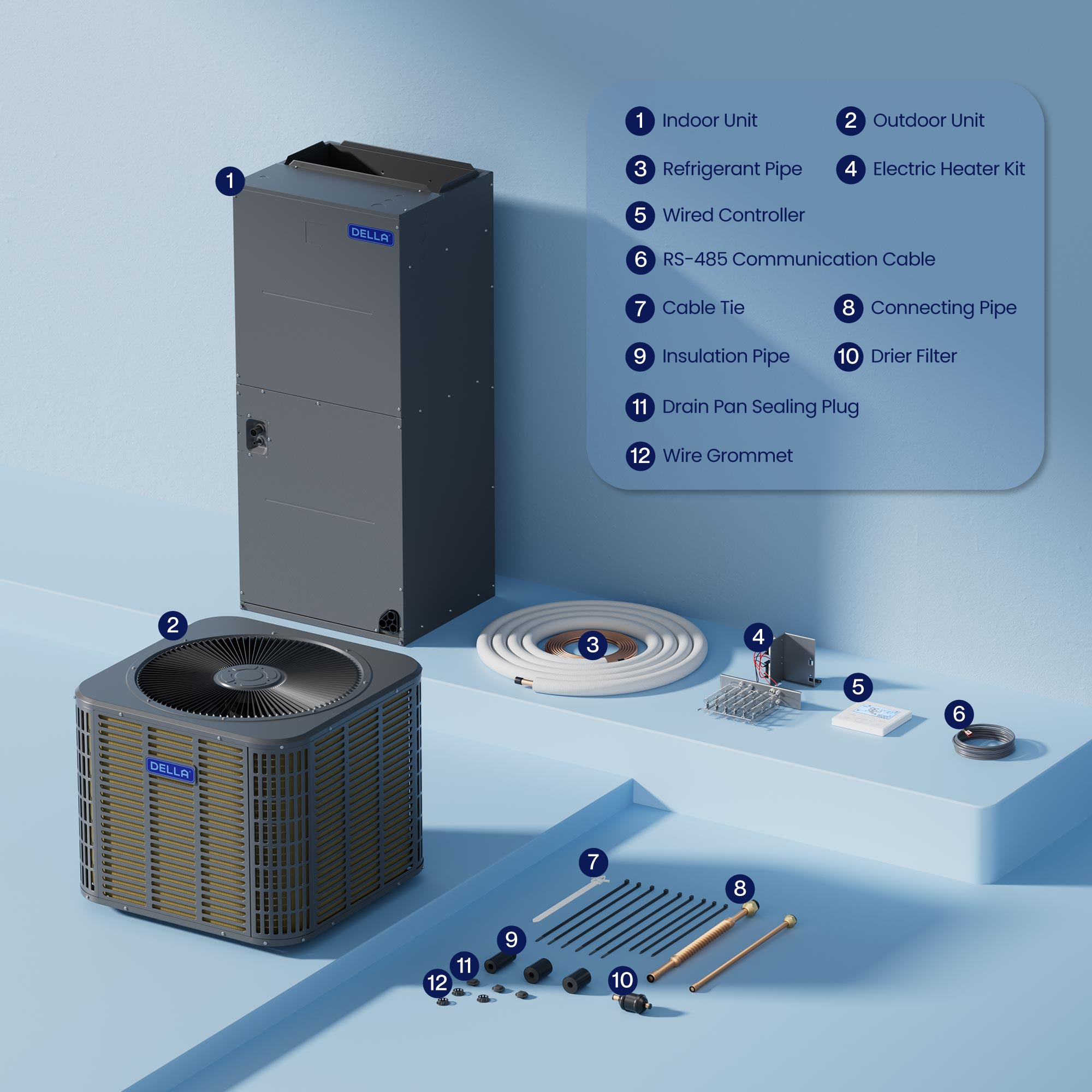

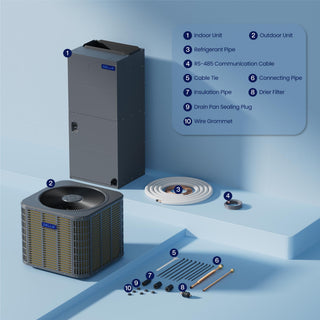

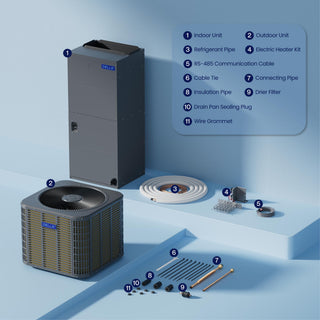

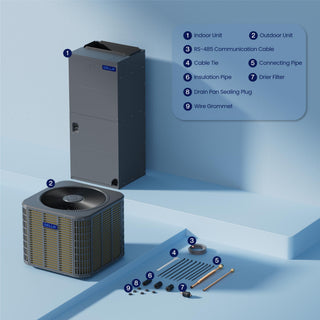

What’s included

1. Indoor Unit
2. Outdoor Unit
3. Refrigerant Pipe (10ft / 16ft / 25ft / 33ft / 50ft models only)
4. Electric Heater Kit (5KW / 10KW / 15KW / 20KW models only)
5. RS-485 Communication Cable

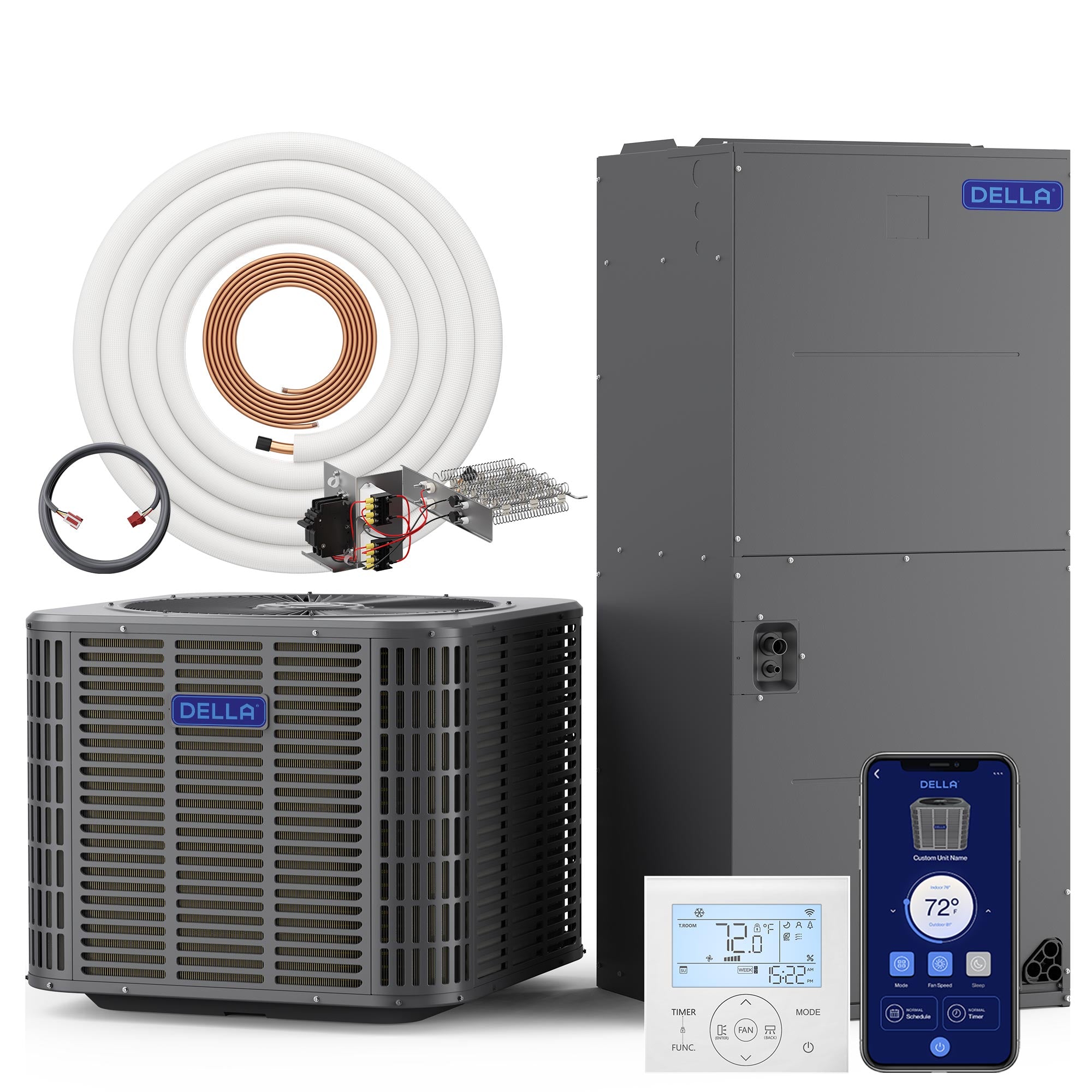

6. Wired Controller (Thermostat control with WiFi models only)
7. Cable Tie
8. Connecting Pipe Assembly
9. Pipe Insulation
10. Filter Drier
11. Drain Pan Sealing Plug
12. Wire Grommet

Shipping & returns

Warranty

Not sure if this product is right for you?

Take the quiz

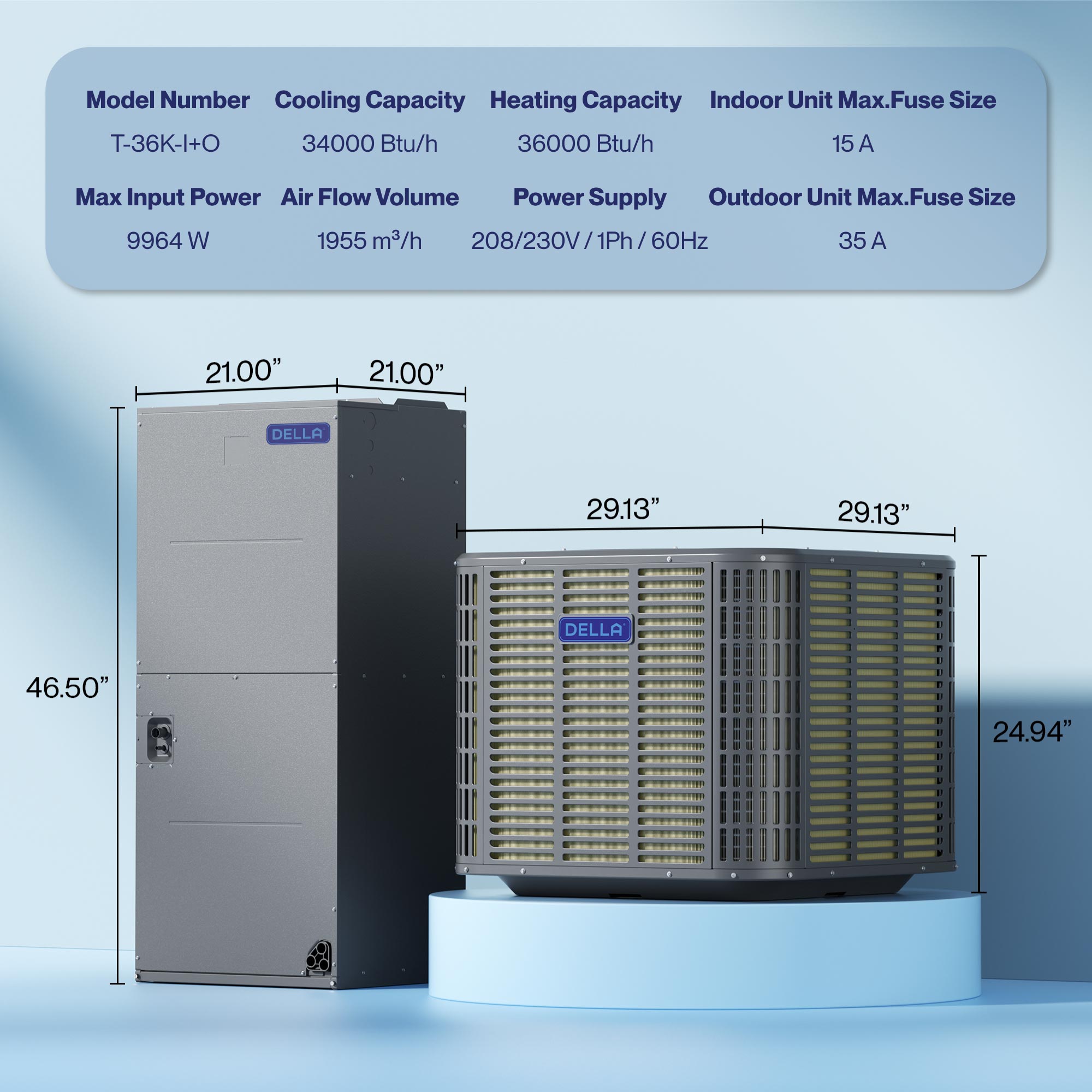

Tech specs

Indoor Unit Specs

Unit Dimensions (WxDxH):21" x 21" x 46.5"

Net/Gross Weight:122.4 / 154.3

Outdoor Unit Specs

Unit Dimensions (WxDxH):29.13" x 29.13" x 24.94"

Net/Gross Weight:145.5 / 176.4

System Specs

Cooling Capacity:34000

Heating Capacity:36000

SEER2:19

Fitting Area:1500

Voltage:208-230V

Refrigerant Type:R454B

Indoor Maximum Fuse Size:15A

Outdoor Maximum Fuse Size:35A

Copper Line Length:None / 16ft / 25ft / 35ft / 50ft

Copper Line Size:3/8 inch and 3/4 inch

Climate Range:-5°F - 125°F

No.1 Selling Mini Split Brandkon Amazon

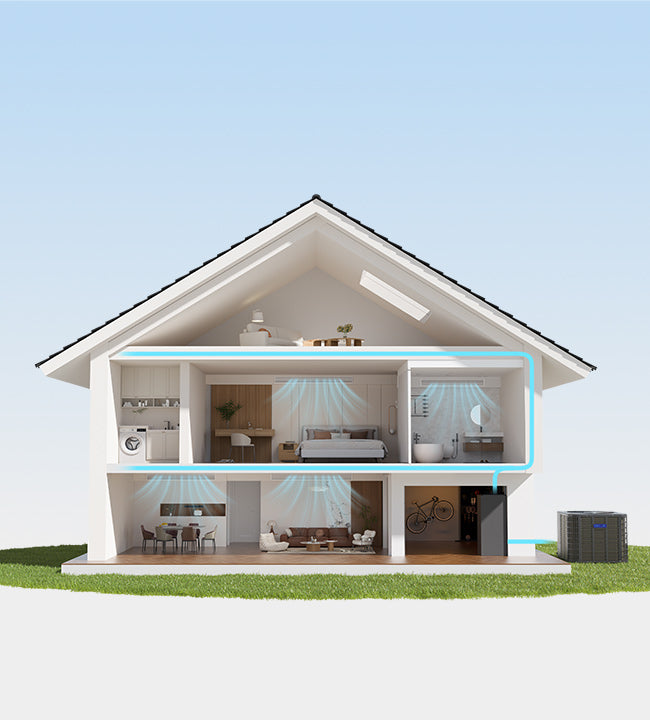

Whole-Home Comfort, Made Easy

Powerful, efficient, and smart connected, our central AC systems are made to keep your home comfortable without any fuss. Enjoy reliable whole-home comfort day and night with performance that keeps every room feeling just right. Your family (and wallet) will thank you.

Top performance, energy smart design

36% more efficient energy savings

Cleaner air, healthier living

Durable design, lasting comfort

6 modes for max comfort

Auto mode

Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed

Wherever you are

Control your comfort, your way

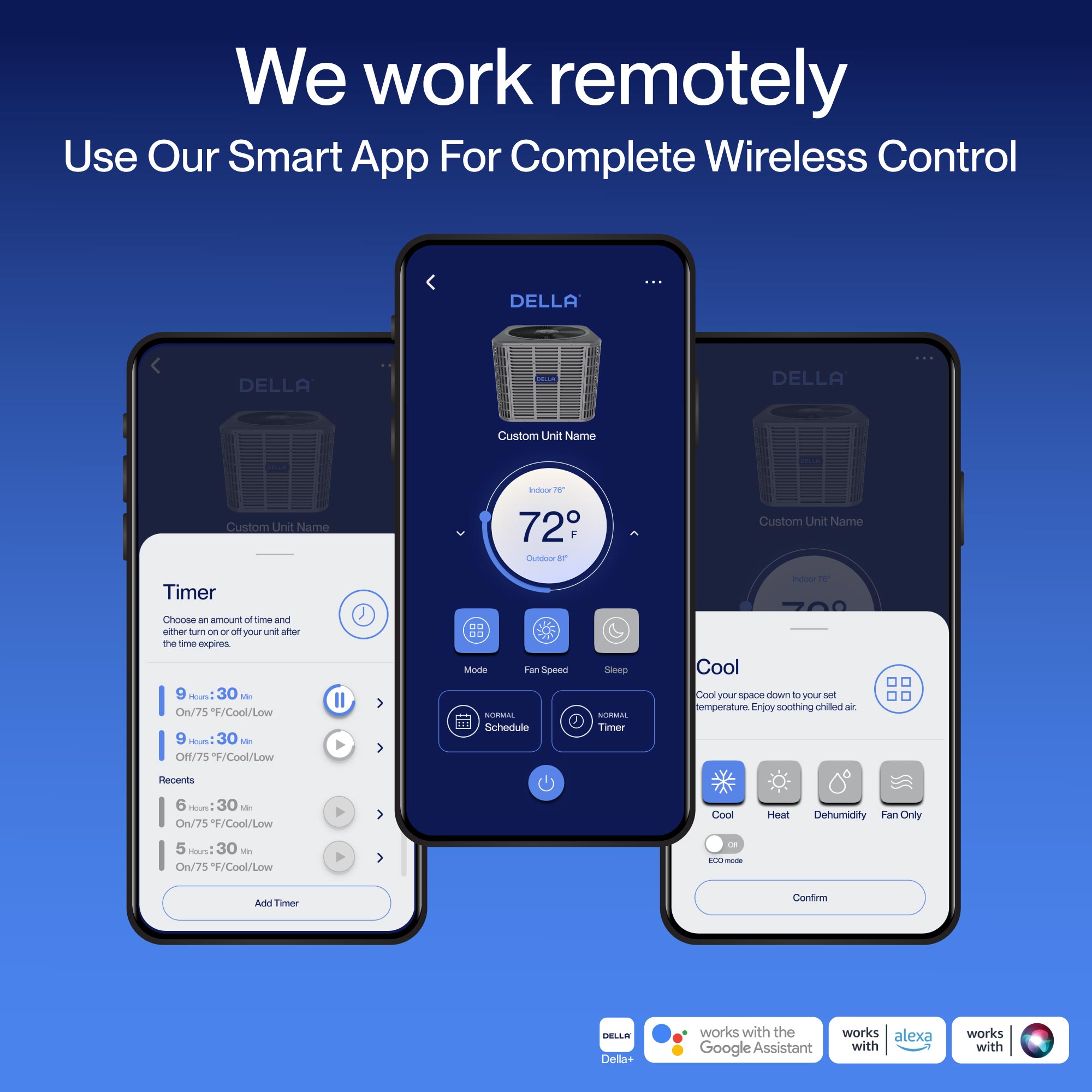

Set schedules and timers through the Della+ app to match your daily routine.

Which series is right for me?

Model
Efficiency
HSPF2 Rating (Region IV)
Refrigerant
Climate Range
Energy Rebate
Shop Now

- DELLA 34,000 BTU 19 SEER2 Ducted Central Air Conditioner with Air Handler
- SEER2 19
- 9
- R454B
- -5°F - 125°F
- DELLA 53,000 BTU 17 SEER2 Ducted Central Air Conditioner with Air Handler
- SEER2 17
- 8.2
- R454B
- -5°F - 125°F
- Shop Now
- DELLA 47,000 BTU 18 SEER2 Ducted Central Air Conditioner with Air Handler
- SEER2 18
- 8.5
- R454B
- -5°F - 125°F
- Shop Now
- DELLA 24,000 BTU 18 SEER2 Ducted Central Air Conditioner with Air Handler
- SEER2 18
- 9
- R454B
- -5°F - 125°F
- Shop Now
