Ceiling Cassette Mini Split

Q: 1. How Does a Mini Split Ceiling Cassette Work?

A ceiling cassette mini split works by using an indoor unit that is installed flush against the ceiling. The air handler inside the cassette distributes air evenly through multiple directional vents, ensuring uniform cooling or heating in the room. This type of system uses a refrigerant loop connected to an outdoor condenser unit, allowing the indoor air handler to control the temperature without ductwork. It’s ideal for spaces where floor units would be intrusive or when you want to maintain a clean, streamlined look. This type of system is similar to a a mini split ac , as both work without ducts but differ in installation and design.

Q: 2. How Do Mini Split Ceiling Cassettes Drain Water?

A mini split ceiling cassette is equipped with a drainage system that channels condensate (water formed from humidity in the air) away from the unit. The condensation collects in a drip tray and is then funneled through a drainage pipe. The pipe is typically routed out of the building or into a designated drainage system. The unit is designed with a slight tilt to ensure the water drains efficiently, and many models come with a built-in pump to assist in draining water if gravity alone isn't enough.

Q: 3. How to Install a Mini Split Ceiling Cassette?

Installing cassette mini split involves several steps. First, you need to choose the right spot in the ceiling where the unit will be flush-mounted. The installation begins by cutting a hole in the ceiling to fit the cassette unit and making sure it aligns with the structural supports. Then, the refrigerant lines and drainage pipes are connected to the indoor unit, followed by the connection to the outdoor condenser. After securing the unit in place, you’ll need to mount the thermostat and perform a thorough check for leaks. It's advisable to have a professional technician handle the installation of a mini split cassette for optimal results.

Q: 4. How to Clean a Mini Split Ceiling Cassette?

Cleaning a mini split ceiling cassette involves a few straightforward steps. First, turn off the power to the unit to ensure safety. Use a vacuum with a soft brush attachment to remove any dust or dirt from the vents and filters. After removing the filters, rinse them gently with warm water and mild soap if needed. Be sure to dry them thoroughly before reinstalling them. You may also want to clean the coils and the drainage line using a mild cleaner or cleaning solution specifically designed for mini splits. Regular cleaning of a mini split ceiling cassette will ensure its efficiency and longevity.

Choose a ceiling cassette mini split for open layouts where even four-way airflow and a discreet, wall-free installation matter. Before buying, confirm adequate ceiling space, structural support, and service access. If ceiling access is limited, a wall-mounted mini split is usually the more practical choice.

126 Results

Featured
Most relevant
Best selling
Alphabetically, A-Z
Alphabetically, Z-A
Price, low to high
Price, high to low
Date, old to new
Date, new to old

Clear filters

DELLA mini split ceiling cassette 22 SEER2

DELLA 12,000 BTU 21 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 550 Sq.Ft.

Cooling Capacity: 12000
Heating Capacity: 12500
SEER2: 21

Starting at $1,394.96

Unit price: per

DELLA 16,000 BTU 20.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1000 Sq.Ft.

Cooling Capacity: 16000
Heating Capacity: 18000
SEER2: 20.5

Starting at $1,784.96

Unit price: per

DELLA 18000 BTU Dual Zone Ceiling Cassette Mini Split AC (9K + 9K) - Up to 800 Sq.Ft.

Voltage: 230 Volts
Refrigerant: R454B
SEER2: 24

$2,719.96

Unit price: per

DELLA 27000 BTU Tri-Zone Ceiling Cassette Mini Split AC (9K + 9K + 9K) - Up to 1200 Sq.Ft.

Voltage: 230 Volts
Refrigerant: R454B
SEER2: 24

$3,779.96

Unit price: per

DELLA 23,000 BTU 22.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1500 Sq.Ft.

Cooling Capacity: 23000
Heating Capacity: 25000
SEER2: 22.5

Starting at $2,219.96

Unit price: per

DELLA 9,500 BTU 23 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 400 Sq.Ft.

Cooling Capacity: 9500
Heating Capacity: 9500
SEER2: 23

Starting at $1,294.96

Unit price: per

DELLA mini split ceiling cassette 24 SEER2

DELLA 18000 BTU Dual Zone Ceiling Cassette Mini Split AC (9K + 12K) - Up to 950 Sq.Ft.

Voltage: 230 Volts
Refrigerant: R454B
SEER2: 24

$2,769.96

Unit price: per

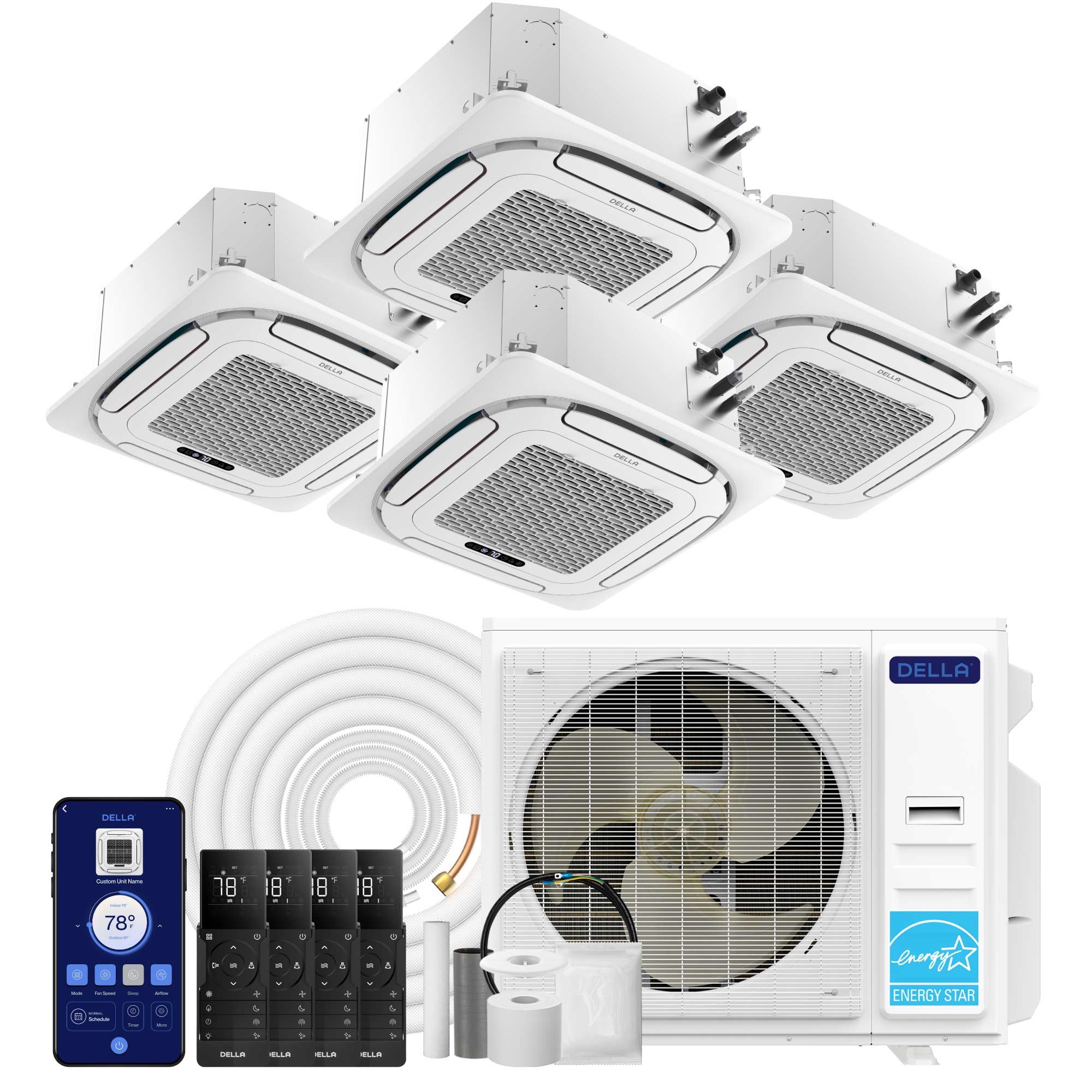

DELLA 35000 BTU Quad Zone Ceiling Cassette Mini Split AC (9K + 9K + 9K + 9K) - Up to 1600 Sq.Ft.

Voltage: 230 Volts
Refrigerant: R454B
SEER2: 22.5

$5,089.96

Unit price: per

DELLA 18000 BTU Dual Zone Ceiling Cassette Mini Split AC (12K + 12K) - Up to 1100 Sq.Ft.

Voltage: 230 Volts
Refrigerant: R454B
SEER2: 24

$2,819.96

Unit price: per

DELLA 27000 BTU Tri-Zone Ceiling Cassette Mini Split AC (9K + 9K + 18K) - Up to 1800 Sq.Ft.

Voltage: 230 Volts
Refrigerant: R454B
SEER2: 24

$3,864.96

Unit price: per

DELLA 27000 BTU Tri-Zone Ceiling Cassette Mini Split AC (9K + 12K + 12K) - Up to 1500 Sq.Ft.

Voltage: 230 Volts
Refrigerant: R454B
SEER2: 24

$3,879.96

Unit price: per

DELLA 42000 BTU Five Zone Ceiling Cassette Mini Split AC (9K + 9K + 9K + 12K + 12K) - Up to 2300 Sq.Ft.

Voltage: 230 Volts
Refrigerant: R454B
SEER2: 22

$6,349.96

Unit price: per

Guides for every step of comfort

See all resources

Buyer's Guide

What Size of Mini Split Air Conditioner Do I Need? 2026 Updated

Read article

Installation & Usage Tips

Cost to Install Mini Split AC System in 2026

Read article

FAQS

View our help center

A ceiling cassette mini split works by using an indoor unit that is installed flush against the ceiling. The air handler inside the cassette distributes air evenly through multiple directional vents, ensuring uniform cooling or heating in the room. This type of system uses a refrigerant loop connected to an outdoor condenser unit, allowing the indoor air handler to control the temperature without ductwork. It’s ideal for spaces where floor units would be intrusive or when you want to maintain a clean, streamlined look. This type of system is similar to a a mini split ac , as both work without ducts but differ in installation and design.

A mini split ceiling cassette is equipped with a drainage system that channels condensate (water formed from humidity in the air) away from the unit. The condensation collects in a drip tray and is then funneled through a drainage pipe. The pipe is typically routed out of the building or into a designated drainage system. The unit is designed with a slight tilt to ensure the water drains efficiently, and many models come with a built-in pump to assist in draining water if gravity alone isn't enough.

Installing cassette mini split involves several steps. First, you need to choose the right spot in the ceiling where the unit will be flush-mounted. The installation begins by cutting a hole in the ceiling to fit the cassette unit and making sure it aligns with the structural supports. Then, the refrigerant lines and drainage pipes are connected to the indoor unit, followed by the connection to the outdoor condenser. After securing the unit in place, you’ll need to mount the thermostat and perform a thorough check for leaks. It's advisable to have a professional technician handle the installation of a mini split cassette for optimal results.

Cleaning a mini split ceiling cassette involves a few straightforward steps. First, turn off the power to the unit to ensure safety. Use a vacuum with a soft brush attachment to remove any dust or dirt from the vents and filters. After removing the filters, rinse them gently with warm water and mild soap if needed. Be sure to dry them thoroughly before reinstalling them. You may also want to clean the coils and the drainage line using a mild cleaner or cleaning solution specifically designed for mini splits. Regular cleaning of a mini split ceiling cassette will ensure its efficiency and longevity.

Ceiling cassette mini splits are typically more expensive due to the complexity of their design and installation. Unlike standard wall-mounted units, these systems require careful installation into the ceiling, often involving additional materials and labor. The unit itself is designed to be compact and efficient, with features like multi-directional vents and a sleek, integrated look that adds to the cost. Additionally, the cost of the refrigerant lines, wiring, and other components can make the installation of a mini split with ceiling cassette more costly compared to other types of mini splits.

Typically, mini split ceiling cassettes are designed for ceiling installation and are not meant to be mounted on walls. The system is specifically built for flush ceiling mounting, allowing for even air distribution in all directions. Mounting it on a wall could disrupt airflow and reduce the system’s efficiency. However, some mini split units are designed for wall installation, and if you need an alternative to the ceiling cassette mini split, these wall-mounted options may be a better choice.
