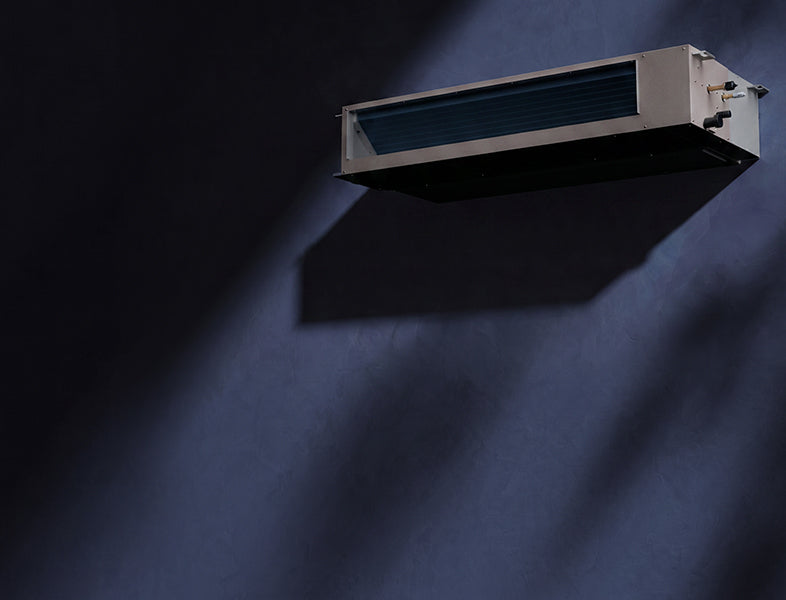

Concealed Ducted Mini Split

Choose a single-zone concealed duct mini split when you need hidden heating and cooling for one main area or nearby rooms that can share a ducted zone. It is usually simpler to plan and lower in upfront cost, but rooms served by the same zone share one temperature setting.

Choose a multi-zone concealed duct mini split when different areas need separate temperature control from one outdoor unit. Each ducted indoor unit serves its own zone, which may include more than one room depending on the duct layout.

The key is how many areas need independent temperature control, not just how many rooms you have. Before buying, have your installer confirm that the selected unit's airflow capacity and available static pressure can support the planned short duct runs. Compare our single-zone concealed duct mini splits and multi-zone concealed duct mini splits to find the right fit.

It depends on what matters most in your space. A concealed duct mini split works through short hidden ducts in the ceiling or walls, so there is no visible indoor unit. That gives the room a cleaner look and can help deliver more even airflow.

A standard ductless mini split is usually easier and less expensive to install because it mounts directly on the wall without ductwork. It is often the better fit for single rooms where appearance is less of a concern.

Choose concealed ducted when hidden installation and a cleaner finish matter more than keeping installation as simple as possible.

It can be a good fit for the right home. Concealed ducted mini splits work best when you want hidden equipment, your layout allows short duct runs, and the home does not require a large traditional central system.

They are often a strong option for mid-sized homes, additions, or multi-room layouts where appearance matters. Larger homes or more complex floor plans may need a more customized setup to deliver balanced comfort. Browse our multi-zone concealed duct mini split ACs to compare capacity options

One ducted indoor unit may serve one area or nearby rooms that share a temperature setting, subject to the duct design and available airflow. Use multiple indoor units when areas need separate temperature settings. Choose the number of control zones before choosing the outdoor system.

A single-zone concealed duct mini split typically costs $4,000 to $7,500 fully installed, including equipment and labor. Multi-zone systems generally range from $5,000 to $15,000 or more depending on zone count, duct complexity, and installation access.

Concealed duct installs cost more than standard wall-mount mini splits because routing air through the ceiling or walls adds labor time and complexity. Final price also depends on whether the home needs electrical upgrades, longer line sets, or structural access work.

The best way to narrow your budget is to first decide how many rooms you need to condition. Zone count drives cost more than any other single factor.
