DELLA 23,000 BTU 22.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1500 Sq.Ft.
DELLA 23,000 BTU 22.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1500 Sq.Ft.
DELLA 23,000 BTU 22.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1500 Sq.Ft.
DELLA 23,000 BTU 22.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1500 Sq.Ft.
DELLA 23,000 BTU 22.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1500 Sq.Ft.
#line set_none
DELLA 23,000 BTU 22.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1500 Sq.Ft.
DELLA 23,000 BTU 22.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1500 Sq.Ft.
#line set_none
#line set_none
#line set_none
DELLA 23,000 BTU 22.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1500 Sq.Ft.
DELLA 23,000 BTU 22.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1500 Sq.Ft.
DELLA 23,000 BTU 22.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1500 Sq.Ft.
DELLA 23,000 BTU 22.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1500 Sq.Ft.
DELLA 23,000 BTU 22.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1500 Sq.Ft.
#line set_none
DELLA 23,000 BTU 22.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1500 Sq.Ft.
DELLA 23,000 BTU 22.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1500 Sq.Ft.

DELLA 23,000 BTU 22.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1500 Sq.Ft.

SKU: CC-24K2V-22S-I+O-X
$2,219.96
  • Cooling Capacity: 23000
  • Heating Capacity: 25000
  • SEER2: 22.5
  • Fitting Area: 1500
  • Voltage: 208-230
  • Refrigerant Type: R454B
  • Maximum Fuse Size: 25A
  • Copper Line Length: None / 10ft / 16ft / 25ft / 33ft / 50ft
  • Climate Range: -13°F - 131°F
See full Tech Specs

Customize your setup

What size should I get?

  • The correct line set size depends on your mini split system. Always refer to the manufacturer’s specifications to ensure compatibility.
  • Measure the distance between your indoor and outdoor units
  • When in doubt, choose a longer line set. Most systems require a minimum length of 15 feet to function correctly, while exceeding the manufacturer’s maximum limit can cause performance issues.

For more information, check out our complete guide to line sets for mini splits

Free & fast shipping

30-day money-back guarantee

Free lifetime coverage

Download Remote Control (New Black) Manual (PDF)
AHRI Certificate

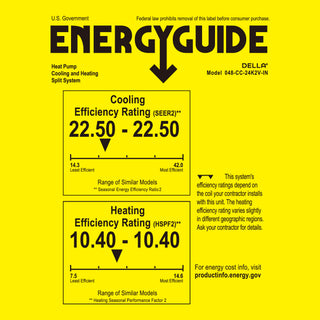

Powerfully manage the climate in high-demand environments with the DELLA ceiling cassette mini split. This 23,000 BTU system is specifically designed to provide robust heating and cooling for up to 1500 sq. ft., making it ideal for shops, restaurants, or large open-concept homes. With an elite 22.5 SEER2 rating and Energy Star certification, it offers a profoundly efficient solution to high-load climate control, qualifying for significant rebates. Enjoy even, 360° airflow, full smart home integration, and the durability of PureClean technology.

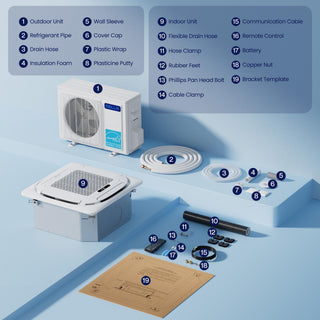

#line set_10ft

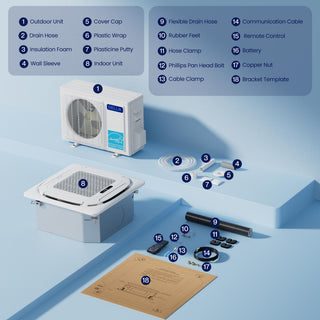

1. Outdoor Unit
2. Refrigerant Pipe (10ft / 16ft / 25ft / 33ft/ 50ft models only)
3. Drain Hose
4. Insulation Foam
5. Wall Sleeve
6. Cover Cap
7. Plastic Wrap
8. Plasticine Putty
9. Indoor Unit
10. Flexible Drain Hose
11. Hose Clamp
12.RubberFeet
13Phillips Pan Head Bolt
14. Cable Clamp
15. Communication Cable
16. Remote Control
17. Battery
18. Copper Nut
19. Bracket Template

Tech specs

Download User Manual

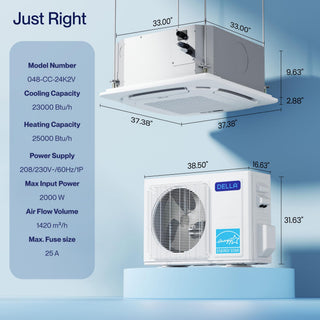

Indoor Unit Specs

Unit Dimensions (WxDxH):33.00" x 33.00" x 9.63"

Net/Gross Weight:51.8 / 59.5

Outdoor Unit Specs

Unit Dimensions (WxDxH):38.50" x 16.56" x 31.63"

Net/Gross Weight:104.7 / 125.66

System Specs

Cooling Capacity:23000

Heating Capacity:25000

SEER2:22.5

Fitting Area:1500

Voltage:208-230

Refrigerant Type:R454B

Maximum Fuse Size:25A

Copper Line Length:None \/ 10ft \/ 16ft \/ 25ft \/ 33ft \/ 50ft

Climate Range:-13°F - 131°F

No.1 Selling Mini Split Brand on Amazon

Ceiling Cassette: 360° Comfort, Zero Dead Zones.

Elevate your business environment with the Ceiling Cassette series—a powerhouse designed for maximum coverage and elite efficiency. Leveraging the same high-performance DNA as our Optima series, it delivers reliable Hyper Heat down to -13°F with a stunning SEER2 22-23 rating.

Its signature 360-degree airflow ensures consistent temperature distribution throughout any room, eliminating cold spots. With built-in fresh air intake support, it’s the ultimate professional solution for maintaining a healthy, comfortable, and energy-efficient atmosphere in any commercial or large-scale residential space.

Powered by MightAir X

Top performance, energy smart design

61% more efficient energy savings

Cleaner air, healthier living

Durable design, lasting comfort

6 modes for max comfort

Auto mode

Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed

Wherever you are

Control your comfort, your way

Set schedules and timers through the Della+ app to match your daily routine.

Which series is right for me?

  • Efficiency
  • HSPF2 Rating (Region IV)
  • Refrigerant
  • Climate Range
  • Energy Rebate

    • DELLA 23,000 BTU 22.5 SEER2 Ceiling Cassette Ductless Mini Split AC - Up to 1500 Sq.Ft.

    • SEER2 22.5
    • 10.4
    • R454B
    • -13°F - 131°F

    • DELLA 22000 BTU 19 SEER2 Concealed Ducted Mini Split Air Conditioner

    • SEER2 19
    • 10
    • R454B
    • -13°F - 131°F
    • Shop Now

    • DELLA 22200 BTU 20 SEER2 Floor Mounted Mini Split AC - Up to 1500 Sq. Ft.

    • SEER2 20
    • 9
    • R454B
    • -13°F - 131°F
    • Shop Now

    • DELLA Vario Series 24000 BTU 21 SEER2 Mini Split Heat Pump AC - Up to 1500 Sq.Ft.

    • SEER2 21
    • 9.5
    • R454B
    • -4°F - 122°F
    • Shop Now

    • DELLA Optima Series 23000 BTU 23 SEER2 Ultra Heat Mini Split AC - Up to 1500 Sq.Ft.

    • SEER2 23
    • 9.5
    • R454B
    • -13°F - 131°F
    • Shop Now
