Most homeowners stop reading about concealed ducted installs the moment they see "EPA 608 certification required." That requirement covers one step (refrigerant commissioning), not the whole project. The structural work, ductwork, and handler mounting are well within reach for someone comfortable working in an attic.

Getting the DIY boundary wrong has real consequences: federal fines for handling refrigerant without certification, and potential warranty exposure on equipment in the $3,000 to $4,800 range. This guide covers exactly where the line falls and what each side of the install actually involves.

How Concealed Ducted Mini Split Systems Work

Unlike a wall-mount that pushes air from a chassis visible on the interior wall, a concealed ducted handler sits inside an attic bay, framed soffit, or closet ceiling and feeds conditioned air through a short duct tree to flush-mounted registers. That duct path introduces the defining constraint of this system type: external static pressure (ESP), the resistance the blower fights to keep airflow moving.

Think of ESP like a garden hose with a partial kink. Add bends, narrow the duct, or stretch the run longer, and it takes more pressure to move the same airflow. Every elbow, reducer, and extra foot of run adds resistance, and in a complex attic layout those increments add up fast.

Concealed ducted units are built for low-static applications, and allowable ESP varies a lot by model. Some slim duct units are rated as low as 0.04 in.w.g., while others can handle 0.6 in.w.g. or higher. The duct geometry has to stay within the unit's rated ESP before you order the equipment; correcting a bad duct layout after the ceiling is closed requires reopening it, a costly and disruptive repair.

Is Your Home a Good Fit for Concealed Ducted Installation?

The structural minimum is 10 to 12 inches of vertical clearance in the installation zone, whether that is an attic, a closet ceiling, or a built-out soffit. That space has to fit the handler chassis, the plenum box, and the return-air connection without squeezing things too tight. In homes with 9-foot ceilings, adding a 14-inch dropped soffit along the room perimeter usually provides the clearance needed. Retrofits go smoothest when your home checks these boxes:

• Open joist cavities above the target room with no finished ceiling blocking access
• Duct paths under 15 feet per branch from the handler to each supply register
• A closet or ceiling bay large enough for the handler chassis and a return plenum
• An existing 240V circuit nearby, or accessible panel space for a new dedicated run

A ranch-style home with an unconditioned attic above the rooms and open joists is the easiest retrofit scenario. New construction is simpler still: framing the handler bay before drywall goes up means no cutting or patching, and open-plan layouts make it easy to tuck the handler inside a decorative soffit.

Concealed ducted is not a universal solution. If the only available space is a finished attic with no usable cavity, if duct runs to each register would stretch beyond 15 feet, or if a single wall-mount would cover the zone more simply, another system type will perform better and cost less. Homes with existing ductwork in good condition are usually better served by a central system replacement.

Homes that check all four boxes are strong candidates for a concealed ducted install. Browse concealed ducted mini split systems with capacity and ESP specs listed alongside each model.

Concealed Ducted vs. Wall-Mount vs. Ceiling Cassette vs. Central Air

Every indoor unit style has a sweet spot based on room conditions and renovation constraints. For rooms with existing drop-ceiling tile, ceiling cassette mini splits offer a recessed option that requires no attic access or custom duct runs. The table below compares all four options on the factors that most often drive the decision.

Factor	Concealed Ducted	Wall-Mount	Ceiling Cassette	Central Air
Visibility	Fully hidden	Visible wall unit	Recessed ceiling grille	Fully hidden
Zone control	1 zone per handler	1 zone per unit	1 zone per unit	Whole home, 1 thermostat
Installation	High; ceiling access + duct runs	Simplest	Moderate; ceiling cutout required	Most complex; full duct system
Installed cost (single zone)	$4,000 to $7,500	$2,500 to $5,000	$3,500 to $6,000	$4,500 to $15,000+ (with new ductwork)
Best for	Additions, ADUs, multi-room	Single rooms, garages	Drop-ceiling rooms	Whole-home replacement

Can You DIY a Concealed Ducted Mini Split Installation?

With some construction experience, you can handle the mechanical side of a concealed ducted mini split installation. Hanging the handler, building the plenum box, running flexible duct, cutting register openings, and routing the refrigerant line set from the indoor unit to the outdoor condenser are all doable for someone comfortable with tools.

Refrigerant handling is different. Evacuating the line set, checking the vacuum, and releasing the factory charge are federally regulated in the U.S., which means you need an EPA 608 certified technician. This is not just a legal requirement: it is what determines whether your system runs smoothly for years or develops evaporator coil problems early on.

Tools and Equipment You'll Need

The HVAC-specific tools are the ones most homeowners do not already own. Most can be rented if you do not plan to use them again.

• Eccentric flaring tool: creates the leak-proof bell-end copper connections required at every flare fitting on the line set
• Vacuum pump with digital micron gauge: verifies system integrity before refrigerant is released; available to rent for approximately $50 to $150 per day
• Refrigerant manifold gauge set: monitors system pressures during commissioning (required if you hold an EPA 608 certification and plan to handle charge yourself)
• Calibrated torque wrench: for flare nut connections; over-tightening is a common cause of refrigerant leaks at the flare
• Digital level: for verifying handler pitch toward the drain port and condensate drain slope before the ceiling is closed

What You Can Handle vs. What Needs a Pro

Most of the physical labor on a concealed ducted install falls on the DIY side of the line.

Tasks a capable homeowner can handle:

• Hanging the air handler on suspension bolts drilled into ceiling joists or blocking
• Framing and attaching the supply plenum box
• Running and securing R-6 insulated flexible duct to each register location
• Cutting register openings and fitting register boots
• Routing and protecting the refrigerant line set between the indoor and outdoor units
• Pulling and sloping the condensate drain line

Tasks that require an EPA 608 certified technician:

• Nitrogen pressure test for initial leak verification before vacuum
• Evacuating the line set to 500 microns or below and confirming the hold (300 microns or lower is the recommended best-practice target for new installs)
• Releasing factory refrigerant charge or field-charging the system
• Delta-T verification and official commissioning sign-off

The hybrid approach of DIY mechanical work plus professional commissioning typically saves $1,500 to $3,000 compared to full-service installation. Full cost ranges by scenario are in the section below.

One trade-off to weigh: performing refrigerant work without EPA 608 certification can jeopardize warranty coverage depending on the manufacturer's terms. For equipment in the $3,000 to $4,800 range, that warranty represents significant replacement value.

How Much Does Concealed Ducted Mini Split Installation Cost?

A fully installed single-zone concealed ducted mini split typically runs $4,000 to $7,500. That range covers equipment plus professional installation, including refrigerant commissioning. Equipment alone runs $1,200 to $4,800 depending on capacity and brand.

Installation scenario	Typical cost range
Equipment only (single zone)	$1,200 to $4,800
Full professional installation (single zone)	$4,000 to $7,500
DIY mechanical + pro commissioning only	$2,500 to $5,500 (estimated)

Actual quotes vary by region, panel access difficulty, and how much ceiling patching the install requires. A full breakdown by region and installation type is in the cost to install a mini split guide.

Choosing the Right Size and Configuration

Sizing a concealed ducted mini split is kind of like picking the right tool for a tricky DIY project—you don't just grab the biggest hammer in the shed. It all starts with a Manual J load calculation, which nerds like Al (and homeowners who secretly love spreadsheets) swear by. This takes into account your room's square footage, insulation, windows, ceiling height, and even your climate zone. As a ballpark, think 20–30 BTUs per square foot—but your duct layout and local temps can nudge that number around.

Go too big, though, and things get messy. Unlike a forgiving wall-mounted unit, an oversized concealed handler hits your set temperature so fast it short-cycles—basically turning your compressor into a sprinter on repeat. You end up with higher wear on the system and rooms that are cool on paper… but still feel like a damp cave.

How Duct Length and Static Pressure Affect Sizing

You know how a long, twisty garden hose can turn your sprinklers into a sad, drippy mess? That's basically what happens if you push a concealed ducted handler too far. Most of these units are built for short-run ductwork, so before ordering, you need to double-check the maximum duct length for your model against its rated ESP and your duct design (Manual D or manufacturer specs). Every elbow, transition, and reducer adds resistance—think of each as sneaky little speed bumps for airflow—and in a complex attic layout, those bumps add up faster than you realize.

When your ducts stretch past what the system can handle, airflow drops below the design target. The sequence is painfully predictable: uneven temperatures at the registers show up first, evaporator coils start icing over like your favorite frosted drink, and eventually the blower motor strains under the pressure.

The smart move? Map every fitting, transition, and branch before picking a unit. If your ESP is undersized for the planned layout, expect a service call during the first cooling season. Typically, a technician will have to diagnose restricted airflow—and maybe even swap out a stressed blower wheel—before your system behaves like it should.

Single-Zone vs. Multi-Zone Concealed Systems

Think of a single-zone setup like a dynamic duo: one concealed handler inside, one outdoor condenser outside, working together like peanut butter and jelly. It's perfect for a master suite, finished basement, or a large open-plan living area—basically anywhere one handler and a small duct tree can handle the whole space without breaking a sweat. One unit, total control, zero fuss. If you're conditioning a single defined space with clear attic access and no need for independent zone control elsewhere in the house, a single-zone system avoids the added cost and wiring complexity of a multi-zone outdoor unit. Shop the single-zone concealed ducted mini split collection for units sized to match common residential room configurations.

Multi-zone concealed ducted systems connect two to four indoor handlers to a single outdoor condenser, with each zone holding its own setpoint independently. If you need separate temperature control for a primary bedroom, an adjacent home office, and a guest room without running three separate line sets to three outdoor units, a multi-zone concealed setup handles that in one installation. For an addition or ADU with three or more rooms sharing a common attic, a multi-zone system typically costs less than installing three separate single-zone systems and condenser pads. The outdoor unit's total capacity must be sized to cover simultaneous demand across all active zones.

Planning and Installing a Concealed Ducted Mini Split

Before you even break out the tools, do a little reconnaissance like a mini HVAC cartographer. Map every supply register, trace the duct path from the handler to each one, and make sure your planned handler location isn't trapped behind a rafter or cross-brace. Think of it as catching the “oops” moments before they turn into ceiling repair nightmares.

Next, mount that air handler level—or with a tiny, deliberate pitch toward the drain port. (Check your model's manual for the exact fraction of an inch per foot; this isn't guesswork.) This slope is separate from the condensate drain line angle you'll set later. Get it wrong, and condensate pools in the pan like a tiny indoor pond, eventually dripping into your ceiling.

Finally, don't trust the first check. Once the unit is fully loaded with line sets and duct connections, verify that pitch again. A little extra diligence now keeps your ceiling dry, your system happy, and you looking like the hero of the install.

Placing the Indoor and Outdoor Units

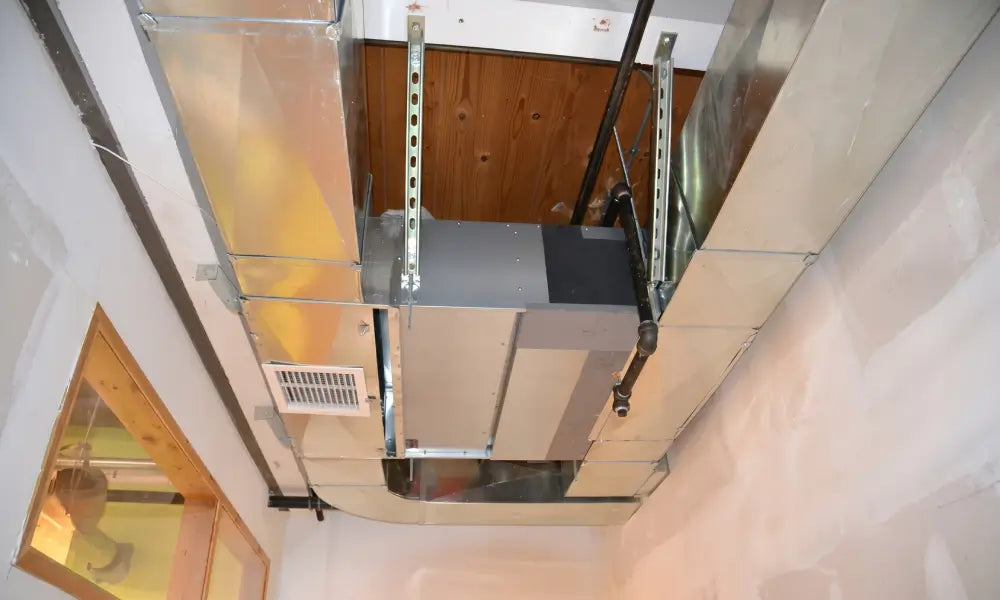

Mount the indoor handler using four suspension bolts drilled into ceiling joists or blocking installed between joists. The chassis must not rest on drywall. Thread each bolt into structural lumber and torque to manufacturer spec; vibration at operating speed will loosen any connection that relies on friction alone.

The outdoor condenser needs at least 24 inches of clearance on all sides for airflow and service access. A poured concrete pad at least 3 inches thick, or a heavy-duty wall bracket, provides the stable and level base the unit requires. In freeze-thaw climates, on-grade pads should be checked annually for frost heave over the system's service life.

In new construction, pre-frame the handler bay during the initial framing phase. The handler platform sits between joists before insulation and drywall are installed, eliminating most of the cutting and patching that a retrofit requires.

Connecting the Ductwork

Each supply run starts at a plenum box, a sheet metal or rigid-foam transition piece connecting the handler's supply opening to insulated flexible duct. Use R-6 insulated flex for all runs through unconditioned attic space to prevent exterior condensation on the duct surface and to dampen blower vibration noise at each register.

Seal every joint, including the plenum-to-handler connection, plenum-to-flex transitions, and any field-fabricated sheet metal sections, with mastic sealant or aluminum foil tape rated for HVAC use. Unsealed joints allow conditioned air to escape into the ceiling cavity, reducing system efficiency and over-humidifying structural framing in warm, humid climates.

Return air configuration depends on available space behind the handler. Rear-return works in attics with enough horizontal depth behind the unit for a full-width return plenum. Bottom-return is the standard choice for narrow soffits or dropped ceiling builds where horizontal clearance behind the chassis is not available.

Running Refrigerant Lines and Condensate Drainage

Refrigerant line sets run from the indoor handler's service valves to the outdoor condenser. The flaring and vacuum procedures are the most technically precise steps in the entire project. For detailed step-by-step procedures specific to your line diameter and refrigerant type, refer to the line set installation guide.

A properly executed deep vacuum, verified with a micron gauge and held to the manufacturer's specified target and hold time, confirms the system is sealed and free of moisture before refrigerant is released. Target is 500 microns or below per the manufacturer's specified threshold; 300 microns or lower is the recommended best-practice target for new installs. Check the installation manual before pulling vacuum. Moisture trapped in the line set circulates with the refrigerant and degrades compressor oil, shortening the compressor's service life across multiple seasons.

The condensate drain line must slope continuously downward at 1/4 inch per foot from the drain pan to the exit point. Any flat or upward run will collect water during peak cooling and eventually overflow into the ceiling structure. Verify slope with a level before the ceiling is closed.

Electrical Wiring, Startup, and Verification

The indoor handler requires a dedicated 240V circuit sized to the unit's amperage draw, typically 15 to 20 amps for single-zone residential installations. Indoor and outdoor units connect via a dedicated communication and power cable sized per the unit's electrical diagram; wire gauge and configuration vary by brand.

Final startup includes measuring the Delta-T (the temperature difference between return air entering the handler and supply air leaving the registers). On variable-speed inverter systems, consult the manufacturer's commissioning guide for the expected reading at your specific test conditions. A significantly low or high split points to either an airflow restriction or a refrigerant charge issue that needs to be resolved before the system is left running.

Before closing the ceiling, confirm the internal drain pump's float switch activates correctly when the drain pan fills. Nitrogen pressure testing, where dry nitrogen is introduced to the line set before pulling vacuum, catches leaks too small for a vacuum hold test alone to detect.

Common Concealed Ducted Installation Mistakes

Most problems in a hidden duct mini split install trace back to a handful of preventable errors. Catching them before the ceiling is closed avoids costly repairs, refrigerant service calls, and in some cases a full reinstall.

Kinked Refrigerant Line Sets

A kink anywhere in the line restricts refrigerant flow, causing the evaporator coil to frost over and triggering the system's protection shutdown. Keep all line set bends gradual and use a proper line bending tool, not a knee.

Uninsulated Line Set Sections

Any run of uninsulated refrigerant tubing through unconditioned attic space pre-conditions the refrigerant before it reaches the evaporator, reducing both cooling capacity and system efficiency across the full operating season.

Skipping Permits

Most jurisdictions require electrical, HVAC, and refrigerant permits for this type of installation. An uninspected system creates insurance complications and resale disclosure issues. Before starting work, confirm whether a ductless mini split installation requires a permit in your area.

Flat or Improperly Sloped Condensate Drain

A drain line that runs flat, even for a short section, pools water during peak cooling and eventually overflows into the ceiling structure. Maintain 1/4 inch per foot of continuous downward slope all the way to the exit point.

No Filter Access Panel

Concealed ducted handlers depend on regular filter cleaning to maintain return airflow. Restricted return air is one of the most commonly cited causes of blower motor strain in hidden installations. Install a dedicated access panel at the filter location before closing the ceiling.

Skipping the access panel typically leads to either a ceiling cutout or early blower motor strain, both of which cost significantly more than the panel itself.

Getting Started with Your Concealed Ducted System

Before ordering, confirm each of the following for your specific space:

• Available cavity height in the installation zone (minimum 10 to 12 inches for most slim handlers)
• Total equivalent duct length to each supply register, including fittings and elbows
• Handler ESP rating relative to your planned duct layout
• Return-air path and available depth behind or below the handler
• Condensate drain route and whether a pump is needed
• Electrical panel capacity for a dedicated 240V circuit
• Single-zone vs. multi-zone need based on how many rooms require independent control

Start with a room survey to confirm clearance in the target installation zone and measure the full duct path from the planned handler location to each supply register. Those measurements drive unit selection: the handler's rated ESP must cover the total equivalent duct length, and specs for minimum duct diameter, flare size, and condensate pump capacity vary enough by model that matching your layout to the unit's published performance curve before purchase eliminates most compatibility problems before they reach the job site.

Once you have your clearance measurements, duct path lengths, and load estimate in hand, the remaining step is matching BTU capacity and ESP rating to your specific layout. Browse concealed ducted mini splits with manufacturer specs listed alongside each model so you can verify the fit before you order.

Once the ceiling is closed and commissioning is done, the system disappears completely. The only visible sign is a flush register grille in the ceiling. Getting there requires careful planning, accurate duct sizing, and knowing which steps require a licensed technician. For a homeowner comfortable working in an attic, the mechanical side is manageable.

Get dialed in with Della.

FAQ

How much does concealed ducted mini split installation cost?

A fully installed single-zone system typically runs $4,000 to $7,500. Equipment alone costs $1,200 to $4,800. The hybrid approach of DIY mechanical work plus professional commissioning typically saves $1,500 to $3,000 compared to full-service installation.

Can I install a concealed ducted mini split myself?

You can handle the mechanical side: hanging the handler, building the plenum, running flexible duct, and routing the line set. Refrigerant evacuation and commissioning require an EPA 608 certified technician and cannot be legally skipped.

What clearance does a concealed ducted mini split need?

Most slim handlers need 10 to 14 inches of vertical clearance in the installation zone, depending on capacity and brand. The space must fit the handler chassis, plenum box, and return-air connection without compressing any component.

How long does concealed ducted mini split installation take?

A typical single-zone install takes two to three days for a capable DIYer handling the mechanical work, plus a separate technician visit for refrigerant commissioning. New construction installs are faster; retrofits with ceiling patching take longer.
