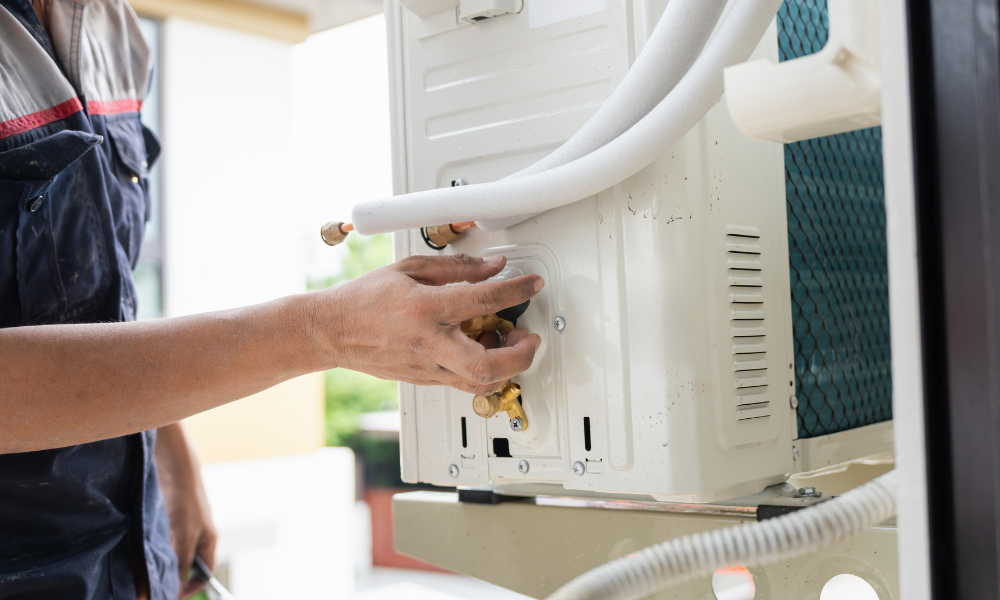

Mini-split line set installation determines whether a ductless HVAC system runs efficiently, safely, and reliably for years. Upgrading home cooling—or adding a new unit—becomes far simpler once you understand how these line sets function. For homeowners looking to understand every detail of a ductless HVAC setup, this guide walks through the mini split line set from selection to installation and maintenance.

This guide covers everything essential: what line sets are, how to install, maintain, and conceal them properly.

What Is a Mini Split Line Set?

Before diving into installation steps, grasp what a line set actually does and why it ranks as the most critical link in any ductless split system HVAC.

Components and Purpose

A line set consists of two copper refrigerant lines plus insulation and support materials. These lines shuttle refrigerant between indoor and outdoor units, enabling both heating and cooling.

How Line Sets Connect Indoor and Outdoor Units

The smaller line returns low-pressure gas; the larger one delivers high-pressure liquid. Together, they form the closed refrigeration loop that keeps the system flowing smoothly.

Why Proper Line Set Installation Matters

Accuracy during mini-split line set installation isn’t optional. It directly controls efficiency, safety, and how long the system lasts. Get it wrong, and problems start immediately.

Optimal System Performance

Correct length, clean bends, and leak-free joints let refrigerant circulate at the exact pressure and volume the manufacturer designed. The compressor runs in its sweet spot; cooling or heating hits rated capacity without strain.

Improved Energy Efficiency

Quality insulation on the suction line stops cold loss on cooling days and heat gain on heating days. Every watt saved from poor insulation shows up as lower electric bills year after year, often a 10-20% difference between sloppy and professional work.

Leak Prevention

Flared or brazed joints done right hold refrigerant for decades. Even a pinhole leak drops system pressure, forces the compressor to work harder, and can release greenhouse gases that cost hundreds of dollars to replace.

Extended System Lifespan

Kinks, sharp bends, or excessive vibration stress the copper walls and the compressor. Professional routing, proper support spacing, and vibration pads cut mechanical wear dramatically. Many systems installed correctly reach 20+ years.

Reduced Noise Levels

Loose line sets transmit compressor pulses straight into walls and ceilings. Secure mounting with rubber isolators and correctly sleeved insulation keeps the indoor unit whisper-quiet.

Warranty Compliance

Most manufacturers void the 10- or 12-year compressor warranty if an EPA-certified technician doesn’t perform or supervise the installation and pressure-test the lines. One shortcut can turn a $900 repair into a $4,000 out-of-pocket replacement.

Safety Notes Before You Start

Never skip safety protocols when handling mini-split line sets. Serious injury, equipment damage, or refrigerant release can happen fast.

Electrical Safety

Switch off the power at the breaker and verify with a non-contact tester before touching any wiring or terminals. Lock out the panel if possible; accidental startup has caused severe shocks.

Refrigerant Handling

Only EPA-certified technicians may recover, charge, or open refrigerant circuits.

Modern R-410A runs at 400+ psi and freezes skin instantly on contact; illegal venting also carries heavy federal fines.

When DIY Is Not Recommended

If electrical work, brazing, vacuum pumping, or complex wall penetrations feel beyond your skill level, hire a licensed professional.

A single mistake often voids the warranty and turns a $1,500 system into an expensive repair nightmare.

What You Need to Prepare

Proper preparation ensures your mini-split line set installation goes smoothly; fewer errors occur when everything is ready upfront.

Required Tools

Gather these essentials before starting: a cordless drill with bits, a hole saw (typically 2.5–3.5 inches), a quality flaring tool, a vacuum pump with micron gauge, a torque wrench (preset or adjustable), a tubing bender or spring benders, plus basic hand tools like adjustable wrenches, hex keys, and a manifold gauge set.

Needed Materials

1/4-inch and 3/8-inch (or 5/8-inch, depending on BTU) soft copper line set, pre-insulated if possible, along with matching insulation sleeves, UV-resistant tape, wall brackets or saddle clamps, a 3/4-inch flexible drain hose, appropriately rated electrical cable (usually 14/4 stranded), outdoor conduit or line-hide cover, flare nuts, sealant putty, and mounting pads for the outdoor unit.

Line Set Sizes

Size matters greatly; too small restricts refrigerant flow, while oversized lines waste money and reduce efficiency.

The DELLA 16FT Mini Split Line Set works well for small to mid-size ductless systems.

It uses high-grade copper tubing for steady refrigerant flow and long-term durability. The pre-installed closed-cell foam insulation helps cut energy loss and prevents sweating during the cooling season.

Each line set comes pre-flared with protective flare caps, so the copper stays clean during handling. It fits most major brands using 1/4-inch liquid lines and 3/8-inch or 5/8-inch suction lines, making it easy to match with common 7K–24K BTU units.

The tubing has a corrosion-resistant coating and enough flexibility to route around corners without kinking. It handles outdoor temperature swings well, and installers like that it arrives pre-insulated, pre-flared, and neatly coiled, ready to use right out of the box.

Measurements

Measure twice, cut once. Run a string or tape from the indoor head’s service port location straight to the outdoor condenser, following your planned path. Add at least 2–3 feet of slack for curves, elevation changes, and future service loops; excess can always be coiled neatly behind the outdoor unit.

Route Planning

Choose the shortest, most direct path that avoids sharp bends under 90 degrees and keeps the line set away from heat sources or electrical interference.

Vertical rises should stay under 25–30 feet total (check manufacturer limits). Aesthetics may also be a factor: hide lines along eaves, downspouts, or inside a painted line-hide channel for a cleaner look.

Site Prep

Clear furniture, plants, and debris from both indoor and outdoor work areas. Protect floors with drop cloths. Locate wall studs and mark them; a stud finder helps avoid surprises.

Confirm you have safe ladder access, power nearby for the vacuum pump, and enough clearance around the outdoor unit, typically 12 inches on sides and 5 feet in front for airflow.

Double-check local codes; some areas require permits or specific penetration sealing methods. With everything prepped, the actual installation becomes straightforward and fast.

Mini Split Line Set Installation Checklist

Use this quick list before you begin. It keeps mistakes low and helps the system run the way it should.

• Right line set size (1/4 + 3/8 or 1/4 + 5/8)
• Gentle bends, no kinks
• Tight, clean flare joints
• Full insulation on the suction line
• Properly sloped drain hose
• Vacuum below 500 microns
• Secure brackets every 4–6 feet
• UV protection outdoors

Step-by-Step Guide to Installing a Line Set for a Mini Split

Once preparation is complete, follow these steps for a leak-free, professional installation of your mini-split line set.

• Plan Your Route

Walk the path again. Use painter’s tape or a marker to trace exactly where the lines, drain hose, and wiring will travel both indoors and outdoors. Sharp bends kill efficiency; keep radii gentle and total bends under four where possible.

• Install the Wall Penetrations

Choose a spot 6–12 inches below the indoor unit’s knockout. Drill a 2.5–3.5-inch hole (match your sleeve size) at a slight 3–5° downward angle toward the outside, as this ensures condensate drains naturally. A wet/dry vac over the drill bit catches most dust; a plastic bag taped inside catches the rest.

• Run the Copper Lines

Slide a PVC sleeve or wall seal into the hole first for protection. Uncoil the line set slowly and never yank. One person inside feeds while another outside pulls gently and guides. Leave 12–18 inches extra on the indoor side and coil excess neatly at the outdoor unit later.

• Insulate the Line Set

If your set isn’t pre-insulated, slip Armaflex or equivalent closed-cell foam over both the suction and liquid lines. Seal every seam with UV-resistant tape or glue; gaps invite condensation and ice. The suction line (the larger one) needs thicker insulation, usually 3/4 inch.

• Secure Line Sets with Brackets

Every 4–6 feet, fasten the bundled lines with UV-resistant straps, saddle clamps, or wall brackets. Avoid compressing the insulation. Where lines drop vertically, support them at the top and bottom so the weight doesn’t pull on the flare fittings.

• Make Flare Connections

Cut tubing square with a proper cutter, never a hacksaw. Ream inside and outside edges smooth. Slide on the flare nut, then flare using a high-quality flaring tool (eccentric type preferred). Inspect each flare under light; it must be perfectly round and smooth. Hand-tighten first, then torque to manufacturer specs, which is typically 10–12 ft-lb on the 1/4-inch line and 35–40 ft-lb on the 3/8- or 1/2-inch line. Use two wrenches to avoid twisting the copper.

• Connect Drain Line and Communication Wire

Tape the condensate drain hose below the insulated lines so gravity works in your favor; never let it sag or trap water. Route the 14/4 or 18/4 communication cable alongside, but keep it a few inches away from power wires when possible. Secure everything together with UV tape every few feet.

• Vacuum the System

Connect your micron gauge and vacuum pump to the service ports. Pull down to 500 microns or lower and hold for at least 20 minutes. Close valves and watch the gauge; if it rises more than 100 microns in five minutes, a leak exists.

• Pressure Test

Charge with nitrogen to 450–550 psig (check unit nameplate). Spray soapy water on every flare and joint. No bubbles after 30 minutes means the system is tight. Slowly release nitrogen outdoors.

• Start-Up

Remove caps. Using a hex key, slowly open both service valves fully (back-seat first, then front-seat to operating position). Power the system. Indoor and outdoor units should start communicating within seconds. Check operating pressures, superheat, and subcooling after 15 minutes; values should fall within the manufacturer’s chart for the current outdoor temperature.

Done right, your mini-split AC will run quietly, efficiently, and without refrigerant leaks for years.

Common Installation Mistakes to Avoid

Even the professionals may trip on these pitfalls. Sidestep them and your mini-split will run flawlessly for decades.

Wrong Line Set Length

Too long and refrigerant velocity drops; oil returns poorly, efficiency tanks, and the compressor starves. Too short? You fight kinks or stretch connections until something cracks. Measure the actual route twice, add only the recommended 2–3 feet of slack, then coil excess neatly behind the outdoor unit. Never cut and re-flare unless you’re an expert.

Insulation Issues

Gaps, tears, or thin foam let the suction line sweat like a cold drink in summer. Water drips inside walls, mold grows, and energy waste skyrockets. Use 3/4-inch closed-cell insulation on the suction line, 1/2-inch on the liquid line, and seal every seam with quality UV tape or glue. Exposed sections outdoors demand extra UV protection or line-hide covers.

Bad Flare Connections

Rushed, uneven, or over-tightened flares account for most refrigerant leaks. A single scratch, off-center cone, or wrong torque value ruins the seal. Cut square, ream thoroughly, use a proper eccentric flaring tool, inspect the flare surface under light, and torque exactly to spec with two wrenches.

When in doubt, cut it off and start over. Copper is cheap; refrigerant leaks are not.

Kinks / Bends

One careless tug while pulling creates a permanent restriction.

Refrigerant pressure spikes, the compressor works harder, and premature failure follows. Use a quality tubing bender or spring benders for every turn; the minimum bend radius is typically four times the tube diameter. Gentle curves beat 90-degree elbows every time.

Skipping Vacuum

Moisture left inside reacts with refrigerant and oil, forming acid that eats the compressor from within, often within months. Pull a deep vacuum (below 500 microns) and hold it for at least 20–30 minutes. Watch the micron gauge after isolating the pump; any rise signals a leak or residual moisture. Shortcuts here cost thousands in repairs later.

Avoid these five errors, and your system starts up perfectly on the first try. Ignore them, and you’ll be troubleshooting (or paying someone else to) before the season even changes.

Installing the mini-split line set is actually part of the overall air conditioning installation process. Carefully reading the installation guide will help you install your system more smoothly, bringing greater convenience to your home.

How to Hide Mini Split Lines Inside?

Nothing ruins a sleek mini-split faster than exposed copper snaking across your wall. Hide them properly so that your room stays sharp, lines stay protected.

How to Cover Line Sets

The fastest, cleanest fix? A dedicated cover kit.

The DELLA Mini Split Line Set Cover snaps together in minutes; rigid PVC channels hide refrigerant lines, drain hose, and wiring completely. UV-resistant plastic shrugs off sunlight outdoors, yet you can paint it indoors to match any wall color. Pieces interlock without screws showing, bends and corners look factory-made, and the whole setup stays removable for future service.

This cover system is compatible with most 7,000–24,000 BTU systems. It features quick snap-on channels for easy installation and offers weatherproof performance.

Using PVC Channels

Don’t want any major construction? Surface-mount 3–4 inch PVC electrical raceway (available at any big-box store). Paint the wall color first, attach or screw the base, tuck the insulated lines inside, and clip the cover on. Corners and tees are sold separately—looks intentional, costs under $2 per foot.

Running Lines Through Walls or Attic

Planning a new install or opening walls anyway? Fish the line set through stud cavities or the attic before the drywall goes back up. Drill 3-inch holes between studs, drop the sleeved lines straight down, and exit low behind baseboard trim. Zero visible lines indoors; only a small wall plate shows at the head unit. Takes longer upfront but delivers the cleanest possible result.

Weatherproofing Your Line Set

Water finds a way in. Sleeve the wall hole with a sloped PVC escutcheon or split wall seal, then pack the gap with low-expansion foam and top with exterior-grade silicone. Outdoors, wrap exposed insulation joints with self-sealing UV tape and slide the line cover all the way to the outdoor unit.

Adding Decorative Options

Paint covers the exact wall shade (use plastic-specific primer first).

Add quarter-round trim or crown molding over the top section, and the lines vanish completely. Some owners build shallow soffits or false beams; the line set hides inside, and the feature actually upgrades the room.

How to Maintain Your Line Set

A few minutes each season keep refrigerant flowing freely and your system running at peak efficiency for 15–20 years.

Check Insulation

Twice a year, pop off one section of the cover.

Damaged, compressed, or water-soaked foam lets the suction line sweat: mold inside walls follows fast. Slice off bad sections; slide on new closed-cell sleeves (3/4-inch wall on the large line, 1/2-inch on the small one) and seal every joint with UV tape. Takes ten minutes, saves hundreds in energy waste.

Check Leaks

Oil residue or greenish stains around flare nuts scream trouble.

Frost or ice on the suction line outside the insulated area almost always means lost charge. Catch it early: soap-bubble test the connections or call a tech with an electronic sniffer before the compressor burns out.

Clean Area

Leaves, pollen, and spider webs pack outdoor cover channels; restricted airflow spikes head pressure. Hose the covers gently from the top down once a year. Indoors, vacuum dust from behind the indoor unit and along any exposed sections, as dirty insulation holds moisture longer.

Secure Covers

Vibration loosens screws over time. Walk the route and snug every bracket, clamp, and cover lid with a screwdriver. Rattling today becomes cracked copper tomorrow.

Watch System Performance

Sudden weak cooling, longer run times, gurgling noises, or ice anywhere except the outdoor coil in heat-pump winter mode point straight to line set problems: kinks, leaks, or oil logging. Log your pressures once a season with a cheap gauge set; big swings from last year demand attention.

Conclusion

A properly installed mini-split line set delivers peak cooling, quiet operation, and years of reliable service. Choose the right length and quality components like the DELLA 16FT Mini Split Line Set and follow precise steps for flaring, insulating, and vacuuming.

With careful preparation and these guidelines, you’ll enjoy efficient, trouble-free comfort season after season.
