What is a Mini Split Line Set

A Mini Split Line Set is a required component of a ductless air conditioning system, connecting the indoor air-handling unit to the outdoor compressor. It transfers refrigerant between the two units to enable the mini split to give effective cooling and heating.

The quality of line sets has a significant impact on performance, energy saving, and system life. It maintains the circulation of coolant and constant indoor conditions all year round.

Components of Mini Split Line Set

An average Split Line Set consists of several different parts, each doing a particular job:

Liquid Line: The small copper piping transfers the liquid refrigerant between the outer condenser and the inside evaporator.

Suction Line (Gas Line): The bigger copper pipe, which takes the low-pressure gas refrigerant back to the condenser, where it exits the indoor unit.

Insulation: Usually composed of long-lasting foam substance that wraps the suction line to eliminate condensation, wastefulness, and loss of heat.

Fittings and Flare Nuts: These join the set of lines to the indoor and outdoor units, providing a tight and airtight fit.

Protective Cover (Optional): Seals UV rays, physical damage, and weathering of the refrigerant lines, and assures the integrity of the refrigerant lines.

Materials Used in Line Sets

The materials are important in the performance of your Line Set. The most frequently used materials are:

Copper Tubing: It was preferred due to its high heat transfer properties and corrosion protection. Copper is also flexible, and it is strong enough to withstand high pressure and changes in heat level.

Insulation Foam: Normally, closed-cell polyethylene or elastomeric foam. It does not experience power wastage and condensation, which can further lead to mildew or rust.

Aluminum (Occasionally Used): Aluminum isn't as sturdy and isn't as popular in high-end systems, although it is lighter and expensive than copper.

The quality of the material that one chooses guarantees more efficiency, less leakage, and a long life for your split system hvac.

Available Sizes of Mini Split Line Sets

Mini-Split Line Sets are available in all sizes that match the liquid line (small tube) and suction line for a cold air condenser. Common diameters include:

1. 1/4” x 3/8” – For a 9,000 BTU system
2. 1/4″ x 1/2″ — Most systems between 12,000-18,000 BTUs
3. 3/8” x 5/8” – (Used in 24,000 BTU and up systems)

They come in sizes of between 15-50 feet, depending on the installation need. The manufacturer specs should also be consulted to make sure that the sizing is done correctly, so that there are no compatibility problems. (Sizing and installation are regions where an incorrect match can hamper the performance and efficiency of any air conditioning/heating equipment. While this process is complex, it is essential, unlike the simpler approach of determining how to choose the right window AC, which relies mainly on room size and BTU rating.)

How Do Line Sets for Mini Splits Work?

A Mini Split Line Set is the connection between the indoor and outdoor units that transfers refrigerant, allowing the system to heat or cool efficiently. During cooling, the refrigerant absorbs heat from inside and releases it outdoors. In heating mode, the process reverses it absorbing heat from the outside air and bringing it indoors.

Here’s how it works step-by-step:

1. The liquid line is through which refrigerant is pumped via the compressor to the indoor unit.
2. Refrigerant inside the evaporator coil captures indoor heat as it cools the air.
3. The now gaseous refrigerant returns to the outdoor unit through the suction line.
4. The heat escapes in the condenser, where a fan blows over some very hot coils to return the refrigerant to liquid.

This process repeats itself over and over, resulting in consistent heat or cool air that maintains your home's temperature.

How to Install Mini Split Line Set

The Mini Split Line Set should be installed by a professional with the right tools and safety precautions. If you break the vacuum wrong, it can cause leaks, reduce system efficiency, or damage your compressor. Successfully installing a mini split step-by-step is crucial for longevity, a much more involved process than the typical installation of a standard window unit.

Preparing the Installation Area

Before you begin installation, clear the area and gather supplies. And be sure to pick up a dependable, durable line set before installation, such as the DELLA Mini Split Line Set, which offers high-quality copper tubing and thick insulation for long-lasting performance.

The DELLA line set is pre-flared and ready to install with high-quality copper tubing and insulation to maximize efficiency, make it durable, and keep a stable room temperature.

Preparation Steps:

1. Measure the length of the pipe between the indoor and outdoor units.
2. Choose the appropriate length and diameter of the line set.
3. Switch off the Power Source for safety.
4. Inspect Wall Penetration Points for the refrigerant lines and power connections.

Steps for Installing Mini Split Line Sets

Use these easy-to-follow to follow detailed processes for a quick and hassle-free installation:

1. Drill the Wall Hole:

Drill a hole for the passage of the lineset, drain hose, and electrical cable. There should be a slight angle running downhill towards the outdoor unit for draining.

2. Install the Indoor Unit:

Install the indoor mini split air conditioning handler, and fix it stably with the attached bracket.

3. Connect the Line Set:

• Connect the liquid and suction lines to the indoor unit via flare fittings.
• Do not over-tighten, or you may damage the flares.
• Protect the exposed connections with insulation tape.

4. Run the Line Set:

Run the line set from the hole in the wall to the outdoor unit. Bends should be gentle, and joints should never kink.

5. Connect to the Outdoor Unit:

Properly connect the two with a torque wrench and flare fittings to the outdoor condenser for leak-free operation.

6. Evacuate the Air:

The vacuum pump should be used to pump the air and moisture out of the line set before releasing any refrigerant.

7. Seal the Wall Hole:

Caulk or foam the opening after making your connections to seal against both air and pests.

8. Check for Leaks:

Leak test all joints for refrigerant leakage before operating the system.

Final inspection after installation

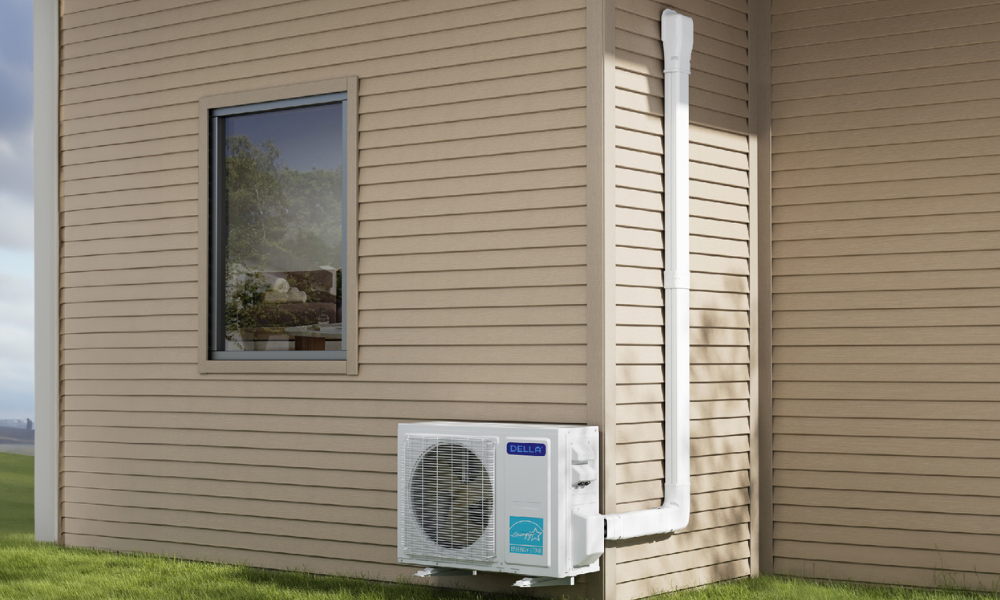

Once everything is installed, look over the entire install very carefully. To ensure the life span of your line set and protect it from weathering and UV exposure, you should cover it with quality line set covers, such as the DELLA Mini Split Line Set Cover, which provides durable protection and keeps your installation looking clean and professional.

These guards provide added protection and a cleaner look, helping to ensure your home remains energy efficient all year long by keeping the outdoor unit free from debris.

Common Mistakes for Installing Mini Split Line Sets

Stay away from these typical mounting mistakes that cause inefficiency or damage:

Incorrect line length: The right and wrong line lengths. This will have an effect on system pressure and cooling capabilities.

Incorrect Flare Fittings: Too loose or too tight fittings result in refrigerant leaks.

No Vacuum: By not taking the time to vacuum out the unit, it is possible that new refrigerant could be filled into it, and thereby cause corrosion or suboptimal performance.

Unguarded Line Sets: Sun and rain can deteriorate insulation, truncating its life.

Correct installation and the use of appropriate materials, such as DELLA line sets, is a fast and easy way to avoid these expensive errors.

Signs That the Mini Split Line Set Needs Replacement

Even with the best installation, they are subject to leaks over time. Here are a few indications that it probably needs to be replaced:

1. Lessens Cool/Heats Unevenly: This could mean that your refrigerant is leaking.
2. Visible Signs of Damage or Corrosion: Cracks, corrosion on the copper tubes, and also on the insulation.
3. Strange Hissing or Bubbling Sound: Indicative of a Leak in the Line Set.
4. Frozen Lines: A result of poor insulation or refrigerant problems.
5. High energy bills: Your system is working too hard because you have an inefficient line set.

Replace regularly for best performance and to prevent costly system damage.

Tips for Maintaining Mini Split Line Sets

To prolong the life and increase the function of your split Line Set, here are a few maintenance rules:

• Check the Insulation: Make sure your insulation is in good condition, and heat gain or loss can be mitigated.
• Keep the Line Set Clean: Dust and dirt tend to build up around the tubing.
• Install Line Set Covers: Shield from UV, weather, and damage.
• Plan for Yearly HVAC Inspections: Regular maintenance can catch leaks early before they turn into big problems.
• Don't Make Twisty Lines: Tight twists impede air conditioner flow and cause pressure drops.

A little bit of maintenance helps the system to function properly and for a longer duration.

FAQ

Do Mini Split Line Sets Need Insulation?

Yes. The importance of insulation cannot be overstated in that it helps secure and stabilize energy, prevents condensation, and protects against water damage. The suction line should be insulated at all times to ensure proper cooling action.

What Do You Do with an Excess Line Set?

If you have too much line set, it’s always best to neatly coil the extra behind your condenser, but do not cut the bendable soft copper until the unit won’t cool. Cutting may cause flare fittings to be destroyed or leak.

If you are replacing your own new line set, make sure both lines say the same age unit (copper should have a design date printed about every 10 inches or so as well).

Are All Mini Split Line Sets the Same?

No, they are different in diameter, length, material quality, and insulation thickness. Remember to always select the line set that complies with your mini split model. The premium choices, such as the DELLA line-set, may be used on most systems, which covers what is available.

How Far Can I Run a Mini Split Line Set?

The maximum distance is determined by your system’s specs, but most mini split systems can handle up to 50 feet. Beyond this may result in extra split charging or stage change adaptation.

Conclusion

On the surface, a Mini Split Line Set appears to be nothing more than a long copper wire and two small plastic tubes; however, it is one of the most important aspects and serves as a critical function in how well your ductless unit operates. Knowing what exactly your mini split is made of, its components, and how it is installed means your system will function correctly and last longer.

For long life and high standards, you can use premium-grade products such as the DELLA Split Line Set & the DELLA LineSet Cover. Together with regular maintenance, they can help to preserve your investment and keep your home comfortable for many years.
