For the hot summers, a good central air conditioning system is essential to provide you a cool and comfortable home. But knowing how does central AC works can help homeowners maintain the functionality of a central AC, making sure that it runs effectively and smoothly in the long run.

From thermostats to ductwork, every component is important in controlling the temperature inside a house. In this guide, we are going to break down everything about the central AC system. You will learn how the machine operates and what tips one should keep in mind when choosing the correct system to install in the house.

What Is a Central AC System?

A central air conditioning system is designed to cool air in a central location and circulate it all over the house using ducts. It is most suitable for larger homes or multi-room buildings where there is a need for central temperature control and effective cooling. Central AC is integrated with mini split HVAC. It is a favorite of homeowners who are in need of reliable comfort in the hottest weather.

This system operates on the principle of using refrigerants to absorb heat from the indoor air and release it to the outside air, which makes the temperature indoors comfortable. This type of central AC is particularly convenient when it is needed to cool multiple rooms of a house, providing uniform air circulation and lowering the level of humidity.

The Main Parts of a Central AC System

There are various components that make up a central AC system, and together they are used to cool your home in an efficient manner. The following is a closer examination of each of them:

1. Thermostat and Controls

A thermostat serves as the control centre of the AC system, in which the homeowners can set the system and adjust the required temperature inside the house. The new versions of the thermostat provide additional features like automatic programming, remote control using the mobile app,s and ability to use it as a part of a smart home, thus it has become easier to manage the climate in the house.

2. Indoor Unit (Air Handler + Evaporator Coil)

This is the air handler where the air circulates within the system, and the evaporator coil takes the heat out of the indoor air. After the air moves over the coils, the heat energy is then passed onto the refrigerant, and the now-cooled air is then recirculated into the house by the ducts, which assist in keeping the house a comfortable place to be in.

3. Outdoor Unit (Compressor Coil + Compressor)

The outdoor unit contains the condenser coil and compressor. The compressor pressurizes the refrigerant, while the condenser coil releases the heat absorbed by the refrigerant outside the system. This operation is also critical to the functionality of the AC system.

4. Refrigerant Lines (Heat Transfer Loop)

These are lines that are used to carry refrigerant between the external and internal units. The refrigerant forms the core of the heat transfer process. It captures the heat of the indoor air and releases it to the outside air, thus the procedure of cooling your house is done.

5. Ductwork, Vents, and Airflow

Vents and ductwork play a significant role in the supply or flow of the cooled air in your house. Adequate air circulation will be employed to ensure all the sections of your home are well cooled. In the absence of this effective distribution, certain rooms will be warmer than others and this will cause discomfort.

6. Air Filter and Drain Line

This filter captures dust and debris and ensures only clean air passes through the system. The drain line removes the excess moisture produced by the evaporator line to prevent any condensation that will make the system inefficient.

How Central AC Works Step by Step

Central air conditioning operates on the principles of heat transfer and refrigeration. The process begins when the thermostat detects that the indoor temperature has risen above the set point. The operating system is divided into the following steps:

1. Thermostat Starts the Cooling Cycle

When the temperature rises, the thermostat signals the AC system to initiate the cooling cycle.

2. Heat is Extracted from Indoor Air

Warm indoor air is pulled into the system through return ducts. Cold refrigerant flows through the evaporator coils as the warm air blows.2 The refrigerant absorbs heat from the air, leaving the air significantly cooler.

3. Cool Air is Distributed Through the ducts

The now-cooled air is forced into the rooms via the supply ducts, which ensures that the rooms have a comfortable temperature indoors.

4. Heat is Released Outside

Meanwhile, the heat-laden refrigerant is pumped to the outside unit. In this case, the condenser coil expels the heat into the atmosphere,e and the refrigerant decreases its temperature and turns into a liquid.

5. The Cycle Repeats Until the Desired Temperature is Reached

Refrigerant is pumped back into the home to take away more heat from the air. This is continuously repeated until the thermostat indicates when the required temperature is achieved, and this makes sure that your home stays cool and comfortable.

What Affects Central AC Cooling Performance?

There are a number of factors that could influence the performance of your central AC system:

1. Dirty Air Filter or Restricted Airflow

A clogged air filter blocks the flow of air, and therefore, the system cannot cool effectively. The filter gets dirty and collects debris over time, and hence compromises efficiency. This filter must also be washed down or replaced frequently in order to allow the free flow of air.

2. Low Refrigerant or Refrigerant Leaks

Refrigerant is essential for absorbing and transferring heat. If levels are low due to a leak, the system will fail to cool effectively. Address leaks immediately to avoid further damage to the system.

3. Dirty Condenser Coil or Blocked Outdoor Unit

The condenser coil is responsible for releasing heat from the refrigerant into the outside air. Dirty coils or debris obstructing the outdoor unit limit airflow, significantly reducing efficiency. Regular cleaning and clearing obstructions are essential for achieving optimal performance.

4. Duct Leaks or Poor Insulation

Ducts that leak or have poor insulation will release cool air before it hits its destination, thus making the system work more intensely. Sealing ducts properly, as well as sufficiently insulating them, can greatly enhance the work of your AC.

5. Incorrect Thermostat Settings

The inability to ensure the correct calibration of the thermostat or the problem with the proper programming can lead to ineffective cooling and incorrect temperature display. The thermostat ought to be observed after a certain period of time to ensure that it is turned on properly.

6. Oversized or Undersized System

When the AC unit is either too big or too small to suit your home, it may affect its performance. A small system will not effectively cool the house and an oversized system will cool faster than required and will also have problems in the dehumidification of air.

Additionally, the energy consumption of your central AC system plays a significant role in its performance. More energy-efficient units use less electricity, leading to reduced utility bills and better overall performance.

Key Factors to Consider When Selecting a High-Performance Central AC System

When selecting the appropriate central AC system, it is necessary to pay close attention to a number of factors:

1. Cooling Capacity (BTU) and Room Size

The size of the home should determine the correct size of the system cooling capacity (BTU).

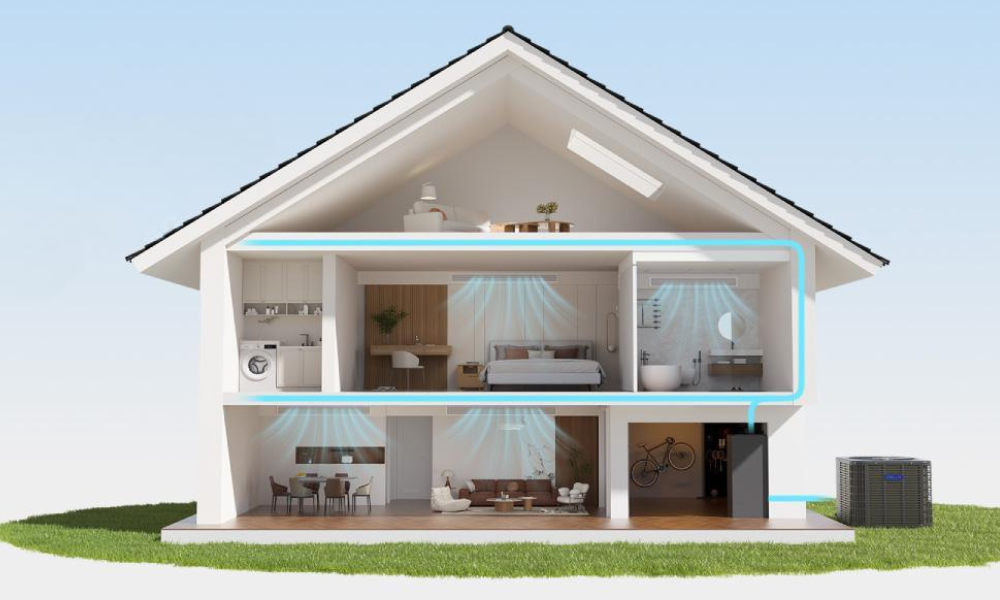

• For Large Homes: Larger homes typically require higher-capacity systems to maintain stable airflow and consistent temperatures across multiple rooms and longer duct runs. The DELLA 53,000 BTU 17 SEER2 Ducted Central Air Conditioner is designed for this type of layout. Its high cooling capacity, inverter technology, and heat pump operation support reliable year-round comfort, including heating performance in outdoor temperatures as low as -5°F.


• For Medium Homes: Medium-sized homes usually benefit from a balanced system that prioritizes efficiency without excess capacity. The DELLA 24,000 BTU 18 SEER2 Ducted Central Air Conditioner offers a higher SEER2 rating for improved energy efficiency while delivering consistent cooling and heating performance. This capacity range works well for homes with average cooling demands and standard duct layouts.

2. Energy Efficiency (SEER2/EER)

The Energy Efficiency Ratio and the Seasonal Energy Efficiency Ratio are measures of the efficiency of an AC. The better the rating, the more efficient the energy, which leads to a reduction in the consumption of energy and consequently the electricity expenses.

3. Installation Requirements and Home Layout

The Installation process of the system cannot be overlooked to facilitate maximum performance. The size of ductwork, insulation and the construction of airflow issues ought to be considered in order to ensure that the system operates effectively.

4. Noise Level and Comfort Features

Comfort is not limited to tuning the temperature. A low-noise system that allows adjusting the speed of a fan and features such as a dehumidifier can make your home more comfortable to live in.

5. Smart Controls and App Connectivity

A range of the newest systems is equipped with smart thermostat connections, which give owners the ability to control the heating and cooling remotely, program the cooling schedules, and track energy usage using their smartphone applications.

6. Heating Performance (Heat Pump Capability)

For homes in areas where temperatures can vary from both hot and cold, a system with heat pump capability will have both cooling and heating in the summer and winter, respectively, and is a year-round solution.

When considering installation, keep in mind that the cost of installing a central air conditioning system can range from $5,000 to $12,000, depending on the size of your home and the complexity of the setup.

Common Misconceptions About Central Air Conditioning

There are a number of misconceptions concerning the central AC systems that may result in a lower operation efficiency than expected:

1. Bigger AC Units Always Cool Better

An oversized unit has the potential to cool the air too fast without adequate dehumidification and can therefore make one feel uncomfortable. It can also be a waste of energy and wear and tear on the system.

2. Lower Thermostat Settings Cool Faster

Turning down the setting of the thermostat will not assist the thermostat in cooling your place faster. In fact, it will ensure that the system consumes more time to operate, a waste of energy.

3. Closing Vents Saves Energy

It may sound like a good idea, but when you close vents of unused rooms, you interfere with airflow and thus make the system work harder. This may cause inefficiency as well as system failure.

4. AC Only Cools the Air, Not Humidity

Although the central AC systems cool the air, they also help to reduce the humidity in the air. The evaporator coils will pull moisture as air moves across the coils, hence making the inside environment more comfortable.

Conclusion

Understanding how central AC works makes it easier to identify airflow problems, cooling inefficiencies, and proper system sizing. Duct layout, insulation, and capacity selection all play a role in long-term performance. Della ducted central air systems are available in multiple capacity ranges for different home configurations.

FAQ

1. How Much Does It Cost to Install Central AC?

Most homeowners spend between $5,000 and $12,000 to install central AC. The final cost depends on system size, efficiency rating, home layout, and whether existing ductwork can be reused or needs modification. High-efficiency inverter or heat pump systems usually cost more upfront but reduce long-term energy bills.

2. How Long Do Central AC Units Last?

A central AC is a system that can serve for 15 to 20 years with proper maintenance.

3. What Size Central AC Do I Need?

Central AC sizing is determined by a Manual J load calculation, not square footage alone. Factors like insulation, ceiling height, window exposure, and climate zone all affect the required cooling capacity. Two homes with the same size can require very different system capacities.

4. Why Is My Central AC Not Cooling?

Some of the frequent problems include the lack of refrigerant, contaminated filters, or a thermostat. Professional check into the system is recommended.

5. How to Clean Central AC?

Clean or change filters on a regular basis, remove debris on coils, and clean the drain line. Professional maintenance should be undertaken after every year.
