If you need to cool and heat several rooms, the hardest part is often deciding how many BTUs each indoor unit needs. Should every bedroom get the same size head? Can a larger living room share the same system? And how large should the outdoor unit be?
The answer depends on each room’s load, not just the home’s total square footage. Proper multi zone mini split sizing means calculating every zone separately, then choosing a compatible indoor-unit combination and outdoor unit. DELLA’s listed coverage can narrow down the options, but insulation, windows, ceiling height, climate, and room use still affect the final size.
How Do You Calculate Multi-Zone Mini Split Size?
Start with the rooms that need conditioning, calculate their loads separately, and use those results to build a compatible system.
List Every Room That Needs a Zone
Write down every enclosed room and connected area you want to heat or cool. Bedrooms with doors that normally stay closed usually need separate indoor units, while a connected kitchen, dining room, and living room may function as one zone if air can circulate freely. When deciding how many mini splits you need, record the following for each proposed zone:
Room length, width, and ceiling height
Exterior wall and window exposure
Typical door position
Normal occupancy and room use
Preferred temperature and operating schedule
Estimate Each Room’s BTU Load Separately
Multiply each room’s length by its width to find its floor area, then use DELLA’s mini split sizing calculator to establish a preliminary load. A basic cooling estimate may begin around 20 to 25 BTU/h per square foot, but each room should be entered separately. Combining a sunny office and a shaded bedroom into one square-foot total can hide the fact that the two spaces need different indoor-unit capacities.
Add the Zone Loads for a Starting Total
Add the calculated room loads to estimate the home’s combined requirement, keeping heating and cooling totals separate. If three zones need 7,800, 8,400, and 10,600 BTU/h of cooling, the preliminary cooling total is 26,800 BTU/h. Those rooms might be evaluated for a 9K + 9K + 12K indoor-unit combination, totaling 30,000 BTU/h of nominal connected capacity.
That head total is different from the calculated 26,800 BTU/h load and does not determine the outdoor-unit size by itself. This provides a starting answer to how many BTUs for a multi zone mini split, but the final condenser must also support the load that may occur when several zones call for heating or cooling at the same time.
Match the Total Load to Available Systems
Assign an available head size to each room, then confirm that the complete combination appears in the manufacturer’s compatibility documentation. A multi-zone mini split system may support several indoor-unit sizes, but the exact models must be approved together. Before ordering, verify:
Number and size of supported indoor units
Minimum and maximum connected capacity
Heating and cooling output
Per-zone and total line-set limits
Maximum elevation difference
Voltage and circuit requirements
What Size Multi-Zone Mini Split Do I Need?
If you are asking what size multi zone mini split do I need, compare the pattern of room loads with the indoor-unit combinations available—not just the condenser’s total BTU rating.
2-Zone Systems for Two Separate Rooms
Two similarly sized rooms work best with a balanced configuration when their calculated loads are also similar. A shaded bedroom and a west-facing home office may have different requirements even when both measure 350 square feet.
When each room supports a 9,000 BTU head, the DELLA Optima Series 18000 BTU Dual Zone Mini Split AC provides two 9,000 BTU indoor units connected to one outdoor unit. DELLA lists each head for a room up to 400 square feet and the combined configuration for up to 800 square feet. If one room has a substantially higher load, this equal-capacity pairing may not be the right configuration.
3-Zone Systems for Three Separate Rooms
Using three identical indoor units is not always appropriate when one zone is larger or gains more heat than the others. A home with two small bedrooms and a moderately larger family room may need one higher-capacity head instead of distributing the same output across all three spaces.
The DELLA Vario Series 28000 BTU Tri-Zone Mini Split AC combines two 9,000 BTU indoor units with one 12,000 BTU unit. DELLA lists the 9K heads for spaces up to 400 square feet each and the 12K head for a space up to 550 square feet, with total listed coverage up to 1,350 square feet. This configuration fits when the two smaller loads align with 9K heads and the larger zone supports the 12K assignment.
4-Zone Systems for Larger Multi-Room Layouts
The physically largest room does not automatically need the largest indoor unit. A smaller kitchen with strong afternoon sun and frequent appliance use may have a higher cooling load than a larger shaded bedroom, so the 12K head should follow the calculation rather than floor area alone.
For three zones that support 9K heads and one zone that requires 12K, the DELLA Vario Series 35000 BTU Quad Zone Mini Split AC provides a 9K + 9K + 9K + 12K combination. The listed room coverage is up to 400 square feet for each 9K head and up to 550 square feet for the 12K head, with total listed coverage up to 1,750 square feet. Those figures remain planning references and should not override the calculated load of any room.
5-Zone Systems for Whole-Home Coverage
Five-zone layouts are more likely to have connected indoor capacity above the outdoor unit’s nominal capacity. That arrangement can work when it is manufacturer-approved, but it requires close attention to how many rooms may call for high output at the same time.
The DELLA Vario Series 45000 BTU Five Zone Mini Split AC uses a 9K + 9K + 12K + 12K + 18K indoor-unit combination. DELLA lists the 9K heads for spaces up to 400 square feet each, the 12K heads for up to 550 square feet each, and the 18K head for up to 1,000 square feet, producing total listed coverage up to 2,900 square feet.
The indoor units add up to 60,000 BTU/h, compared with the system’s listed 45,000 BTU capacity. Therefore, can indoor BTUs exceed outdoor capacity has a qualified answer: yes, when the manufacturer approves the combination, but the condenser cannot provide all five heads with their full nominal capacity simultaneously. The home’s coincident peak load must remain within the outdoor unit’s available output.
What Can Change Each Room’s BTU Needs?
Square footage gives you a starting point, but the following room conditions determine how far that initial estimate needs to be adjusted.

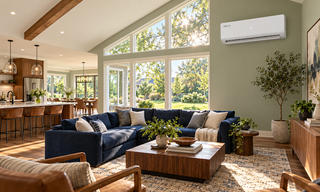

High Ceilings Increase the Room Volume
A 400-square-foot room with a 12-foot ceiling contains 50% more air volume than the same room with an 8-foot ceiling. Vaulted ceilings, lofts, and open stairways can also allow warm air to collect above the occupied area. When sizing an open-floor-plan mini split, include connected vertical space and confirm that conditioned air can reach the full area.
Poor Insulation Raises Heating and Cooling Loads
Missing attic insulation, leaky windows, uninsulated walls, and floors over garages allow heat to move through the room more quickly. Check for noticeable drafts and temperature differences before increasing the proposed head size. Air sealing or insulation may reduce the load, while a larger indoor unit alone cannot correct heat loss through a weak building envelope.
Windows and Sunlight Add More Heat
Large west- or south-facing windows can raise afternoon cooling demand, while exposed glass can increase winter heat loss. Record the window size, orientation, glass type, and permanent exterior shading for each room. Two rooms with equal floor area may need different head sizes when one has shaded double-pane windows and the other has an unshaded sliding glass door.
People and Appliances Affect Busy Rooms
People, computers, televisions, lighting, and cooking equipment add heat to a room. A two-person home office with several monitors may need more cooling than a lightly used guest bedroom, while a kitchen may peak during meal preparation. Base the adjustment on normal daily use rather than an occasional gathering, which could unnecessarily oversize the indoor unit.
What Happens If a Multi-Zone System Is Wrong Size?
Sizing problems show up differently depending on whether the mismatch involves one indoor head or the outdoor condenser. Room temperature, runtime, humidity, and the number of active zones can help identify where the problem begins.
Oversized Heads Can Short-Cycle in Small Rooms
Quick temperature changes followed by frequent stopping may indicate that the indoor head is too large for the room. Short operating cycles can leave the space feeling cool but clammy or create noticeable temperature swings. When the room’s calculated load falls below the smallest compatible head, reconsider the zone layout instead of assuming a larger unit will always reduce its output enough.
Undersized Zones Struggle During Extreme Weather
During very hot or cold weather, an undersized zone may run continuously while the room remains several degrees from the set temperature. Check the filter, airflow path, windows, and normal door position first. If those conditions are correct, compare the room’s design load with the indoor unit’s available output at the current outdoor temperature rather than relying only on its nominal BTU rating.
Oversized Condenser Can Run Poorly at Low Load
Mild weather and overnight use often leave only one small zone calling for conditioning. If the condenser cannot reduce its output to match that limited demand, it may cycle instead of running steadily. When comparing mini split AC, consider minimum modulation and part-load performance along with the maximum capacity needed for peak conditions.
A Manual J Calculation Reduces Sizing Errors
A Manual J load calculation calculates each room’s heating and cooling loads separately, using local design weather and detailed building data. Heating calculations account for heat loss, while cooling calculations account for heat gain and moisture removal.
The calculation includes:
Walls, ceilings, floors, windows, and doors
Outdoor-air leakage and ventilation
Sunlight, humidity, occupants, lighting, and appliances
The resulting BTU/h is used to size each indoor unit, while the combined room loads help determine the required outdoor capacity. Because the calculation relies on local weather and detailed building data, it should be completed with approved Manual J software rather than a square-foot estimate.
FAQs
Can One Indoor Unit Cover Two Bedrooms?
Usually not if both bedroom doors remain closed. A head mounted in one bedroom or a hallway cannot reliably move conditioned air into two enclosed spaces, even when their combined square footage fits its listed coverage. One unit may serve connected areas with a wide airflow path, but separate heads are generally more suitable when both rooms require predictable comfort and independent control.
Can You Mix Different Indoor Unit Sizes?
Yes, provided the outdoor unit supports the exact combination. Mixed capacities such as 9K + 9K + 12K can match rooms with different loads more closely than identical heads. Confirm the indoor model numbers, total connected capacity, and allowed combination in the manufacturer’s current documentation rather than assuming any head from the same brand will work.
Can You Add Another Zone Later?
Only if the outdoor unit has an unused connection and supports the expanded combination. An available port does not guarantee another zone can be added because connected capacity, line length, elevation, electrical requirements, refrigerant adjustments, and outdoor output still apply. Include a likely future bedroom, basement, or addition in the original design whenever possible.
Should You Size for Heating or Cooling?
Calculate both loads and determine which is more demanding in your climate. Heating may govern in colder regions, while cooling and moisture removal may govern in hot, humid areas. Check the equipment’s output at local design temperatures and its minimum modulation so it can meet peak demand without being unnecessarily large during the milder season.
Conclusion
Before ordering, compare every proposed indoor unit with its room’s calculated heating and cooling load, then ask the installer to confirm that the full configuration appears in the manufacturer’s current combination data. If a head does not fit its assigned room or the condenser cannot support the expected simultaneous demand, revise the system before installation.
