Order the wrong diameter for your mini split line set and you will end up with a system that runs but never hits full capacity. Those copper pipes connecting your indoor and outdoor units carry high-pressure refrigerant, meaning their diameter and length must match your specific unit perfectly.
The diameter dictates the actual flow, the length directly affects the system charge, and the specific refrigerant type rules out which line set kit you can actually use. Get all three right and your mini split will blast full capacity from day one without breaking a sweat.
Why Line Set Size Matters in a Mini Split System
Line set diameter directly controls how your system performs. Get it wrong in either direction and the compressor takes the hit.
- Undersized lines: The pipe can't move enough refrigerant vapor, so pressure backs up and the system runs overtime to reach output it can never fully deliver. A 24,000 BTU system running through a 1/4-inch suction line is a common example of this mismatch.
- Oversized lines: Return-side pressure drops too low to carry lubricating oil back to the compressor. This condition, called oil logging, causes bearing wear and eventual compressor failure on an otherwise correct install.
- Correctly sized lines: The system hits its rated output, oil circulates properly, and the install stays within manufacturer warranty terms. Go outside those specs and you're looking at a voided warranty plus noise and vibration that doesn't go away.
If your mini split is already installed but not reaching its rated output, an undersized suction line is one of the first things a technician should check.
For a complete overview of line set materials, routing, and covers within the broader install process, the mini split line set guide for homeowners goes into full detail.
Mini Split Line Set Size Chart by BTU
Line set diameters go by the outside diameter (OD) of the copper pipe, not the inside. For residential mini splits, liquid lines run from 1/4 inch to 3/8 inch OD, while the beefier suction lines run from 3/8 inch to 5/8 inch OD. Every single BTU capacity requires a specific liquid and suction combination to work poperly.
The table below covers the standard pairings for the most common BTU capacities. Keep in mind that pipe sizes can change based on the brand and model, so use this as your starting blueprint and always double-check the indoor unit's manual before you buy the wrong gear.
| Unit Capacity (BTU) | Capacity (Tonnage) | Liquid Line OD | Suction Line OD |
| 9,000 BTU | 0.75 Ton | 1/4" | 3/8" |
| 12,000 BTU | 1.0 Ton | 1/4" | 1/2" |
| 18,000 BTU | 1.5 Ton | 1/4" | 1/2" or 5/8" |
| 24,000 BTU | 2.0 Ton | 3/8" | 5/8" |
| 30,000 BTU | 2.5 Ton | 3/8" | 5/8" |
| 36,000 BTU | 3.0 Ton | 3/8" | 5/8" |
If your unit's BTU rating does not match a row exactly, or if your brand uses different specs, size the line set by the connection port OD listed in the indoor unit's installation manual. Look for a section labeled "Refrigerant Piping," "Piping Specifications," or "Connection Sizes." Do not size by chart alone.
- Brand note — 18,000 BTU: The suction line size varies by manufacturer. Some specify 1/2 inch; others require 5/8 inch. This is one of the most common brand-specific variations in residential mini splits. Always verify with your model's installation manual before ordering.
- Brand note — 36,000 BTU: Some manufacturers specify a 3/4-inch suction line at this capacity rather than 5/8 inch. If your unit's installation manual calls for 3/4 inch, that takes priority over the chart. Do not substitute a 5/8-inch suction line on a system that requires 3/4 inch.
Pre-charged line set kits are built specifically for DIY setups, meaning you can hook them up without fancy refrigerant tools or EPA certifications. Pricing changes based on the diameter, the run length, the refrigerant type, and whether you need that quick-connect fitting, so check the current product listings to see what the damage will be. Get the right kit and you can bypass the tech completely.

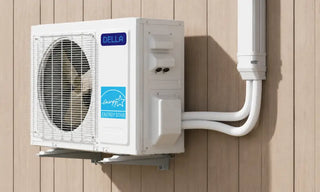

Once you have confirmed the diameter combination for your BTU rating, choose the matching length and diameter option on the Della mini split line set product page.
How to Choose the Right Line Set Length
Pre-charged mini split line set kits come in standard lengths of 16, 25, 35, and 50 feet. These options cover the vast majority of single or two-story residential setups. Do not just eyeball the distance. Every system has a strict minimum length requirement, typically 10 feet. They also have a maximum limit that changes by model. Check both numbers in your manual before you map out the route or your system will choke.
Measure the Actual Line Run, Not Just Straight Distance
Measuring straight line distance from the indoor head to the outdoor condenser underestimates the actual run every single time. The line set has to hug the wall, drop through a wall penetration, and cross the exterior before it ever hits the condenser pad. Every horizontal run, vertical rise, and direction change adds serious footage. Buy your line set based on the actual path of the pipe, not how the crow flies, or you will end up a few feet short on install day.
Add a 3 to 6 foot service cushion to your total path. That extra slack creates a service loop right at the outdoor unit. It allows a technician to disconnect and reconnect the lines down the road without cutting into the run. Ordering exactly to your measured distance almost always leaves you short on install day. Don't cut it so close that you can't even move the machine to work on it.
When Does Supplemental Refrigerant Kick In, and What Changes Past 50 Feet?
Most residential mini split outdoor units are factory charged for runs up to 25 feet. Any run longer than that needs supplemental refrigerant added on site. This rule applies to a 30 foot run just as much as a 60 foot one. The exact charge rate varies by model and refrigerant type. Confirm it in the installation manual before starting so you do not starve the compressor on day one.
Runs past 50 feet, or those with significant elevation changes, add two more concerns:
- Oil trap requirements: Some manufacturers require a trap on vertical rises beyond a specific height; others do not. Do not add oil traps or other line components unless the installation manual calls for them. Adding components not specified can create unintended pressure drop. Equally, do not skip ones the manual requires.
- Extended run limits: For runs exceeding 50 feet, professional review of the sizing is the safer path. A technician with extended-run experience can verify the supplemental charge amount and assess whether the routing creates oil return concerns before commissioning.
For the full field process, including how supplemental refrigerant is added on site, the step-by-step mini split line set installation guide walks through each stage.
Multi-Zone Mini Split Line Sets: How to Size Each Zone
A multi-zone mini split connects multiple indoor heads to a single outdoor condenser. Each indoor unit runs its own dedicated pair of refrigerant lines directly to the outdoor unit connection ports.
Each pair operates as an independent pressurized circuit within the system. Do not expect one shared pipe to feed everything. If you install three indoor heads, you are running three separate line sets back to that single compressor.
Each Indoor Unit Needs Its Own Line Set
For multi-zone systems, size each line set based on the BTU capacity of the indoor head it serves, not the total combined output of the outdoor unit. A 36,000 BTU outdoor unit paired with three 12,000 BTU indoor heads requires three separate line sets. Each individual line set must match the 1/4 inch liquid and 1/2 inch suction combination that a 12,000 BTU head calls for.
Do not look at the big number on the condenser crate when buying your pipe. Look at the specific demands of each room's indoor unit or you will choke the flow to every zone in the house.
Running a single oversized line set from the outdoor unit to a small indoor head is a common misconception. Each head is its own circuit and needs copper sized to its BTU output, not the condenser's total capacity.
Single-zone systems are simpler to size because the outdoor unit's full capacity routes through one dedicated pair of lines. If this is your first mini split line set sizing decision, single-zone mini split systems with pre-matched specifications give you the clearest starting point before tackling multi-zone complexity.
What If the Outdoor Unit Port Does Not Match?
Multi-zone outdoor ports match the total condenser output, not the individual zones. This means the port is often larger than the line set your indoor head requires. Use a brass adapter right at the service valve to bridge the gap, size the line to the room unit, and move on.
Brass adapters, called reducers or expanders, connect a different-sized line set to the outdoor unit port without modifying the condenser. This standard engineering fix does not hurt system performance when sized correctly. Priority always goes to matching the line set to the indoor unit BTU rating, not the condenser port.
For help planning a full multi-head configuration, the multi-zone mini split systems collection shows BTU combinations and zone counts to help map out your layout.
Does Refrigerant Type Affect Line Set Size?
R-410A, R-32, and R-454B use similar copper pipe sizing in most residential configurations, so the BTU-to-diameter chart above is a useful starting point across refrigerant types. What changes between refrigerant families is not the pipe diameter but how pre-charged kits and existing lines are handled.
- Copper pipe diameters: Similar across all three refrigerant types for the same BTU range. A 12,000 BTU unit on any of these typically calls for a 1/4-inch liquid line and a 1/2-inch suction line. Verify the exact spec in the installation manual before ordering.
- Pre-charged line set kits: Not interchangeable across refrigerant families. An R-410A kit cannot be used on an R-32 or R-454B system; contamination voids the warranty. If you are replacing an older R-410A system with a new unit, order a pre-charged kit matched to the new refrigerant type.
- Reusing existing copper pipes: Bare copper tubing can often carry a new refrigerant after a proper flush and pressure test, provided the diameter matches the new unit's specs. Pre-charged line sets from the old system cannot be reused across refrigerant families. Have lines inspected, flushed, and pressure-tested before connecting to the new unit.
If you are unsure which refrigerant your unit uses, check the nameplate on the outdoor condenser. The nameplate is the definitive source, not the product listing.
For a full breakdown of how these refrigerants compare in operating pressure, efficiency, and compatibility, the R-454B vs R-410A comparison covers the key differences in detail.
Common Line Set Sizing Mistakes to Avoid
Three installation errors account for most line set sizing problems, and all three are avoidable with a bit of planning before the install day.
- Skipping the control wire: The control wire carries communication signals between the indoor and outdoor units. Without it extended alongside the refrigerant lines, the system cannot receive operating signals from the thermostat or remote. Route it through the same wall chase as the refrigerant lines during the initial install.
- Bending copper without a spring bender: A sharp 90-degree turn without a pipe spring bender collapses the tube wall inward at the bend. Even a partial kink restricts refrigerant flow and creates a pressure drop that reduces system output. A spring bender keeps the tube round and preserves the full interior diameter.
- Attempting to shorten a pre-charged line set: Pre-charged DIY line sets come factory-sealed at a fixed length. Cutting them releases refrigerant, voids the kit, and in most cases violates the manufacturer's terms. If your route is shorter than the kit, coil the excess as a service loop. If the run is considerably shorter than any available pre-charged kit, a field-charge installation with cut-to-length copper is the better approach.
How to Choose the Right Line Set for Your Mini Split
Getting this right comes down to three things, each confirmed against the installation manual before you place the order.
- Diameter: Open the installation manual and find the section labeled "Refrigerant Piping" or "Connection Sizes." Read the indoor unit connection port OD. That measurement determines the liquid and suction line diameters for that head. Use the chart above as a reference, but the manual is the final word.
- Length: Walk the actual routing path from the indoor head to the outdoor pad and measure that route. Add 3 to 6 feet for a service cushion. Confirm the total falls within the model's maximum supported run distance listed in the IOM. Pre-charged kits are available in 16, 25, 35, and 50-foot lengths.
- Refrigerant type: Read the nameplate on the outdoor condenser. Pre-charged kits must match that refrigerant exactly. A mismatch contaminates the system and triggers a warranty claim that most manufacturers will deny.
Get all three right before you order and the system runs at full output from day one, with no callbacks and no warranty disputes.
If you are still selecting the mini split unit itself, the full lineup of mini split AC systems at Della Home lists BTU ratings, refrigerant type, and recommended line set specs on each product page, so you can confirm all three variables before placing your order.
Conclusion
Getting the line set right separates a quiet, flawless mini split from a piece of junk fighting itself from day one. Correct diameter protects the compressor from burning out, and dead-accurate length prevents a desperate, midnight reorder when the installer shows up.
Lock down your routing plan and refrigerant type the second sizing is settled, then get that copper ordered. Getting those details nailed down in sequence is the only difference between ice-cold efficiency and a system that chokes from the jump. Now you're ready to go! Make sure to check out our other articles for more helpful, streamlined tips!
